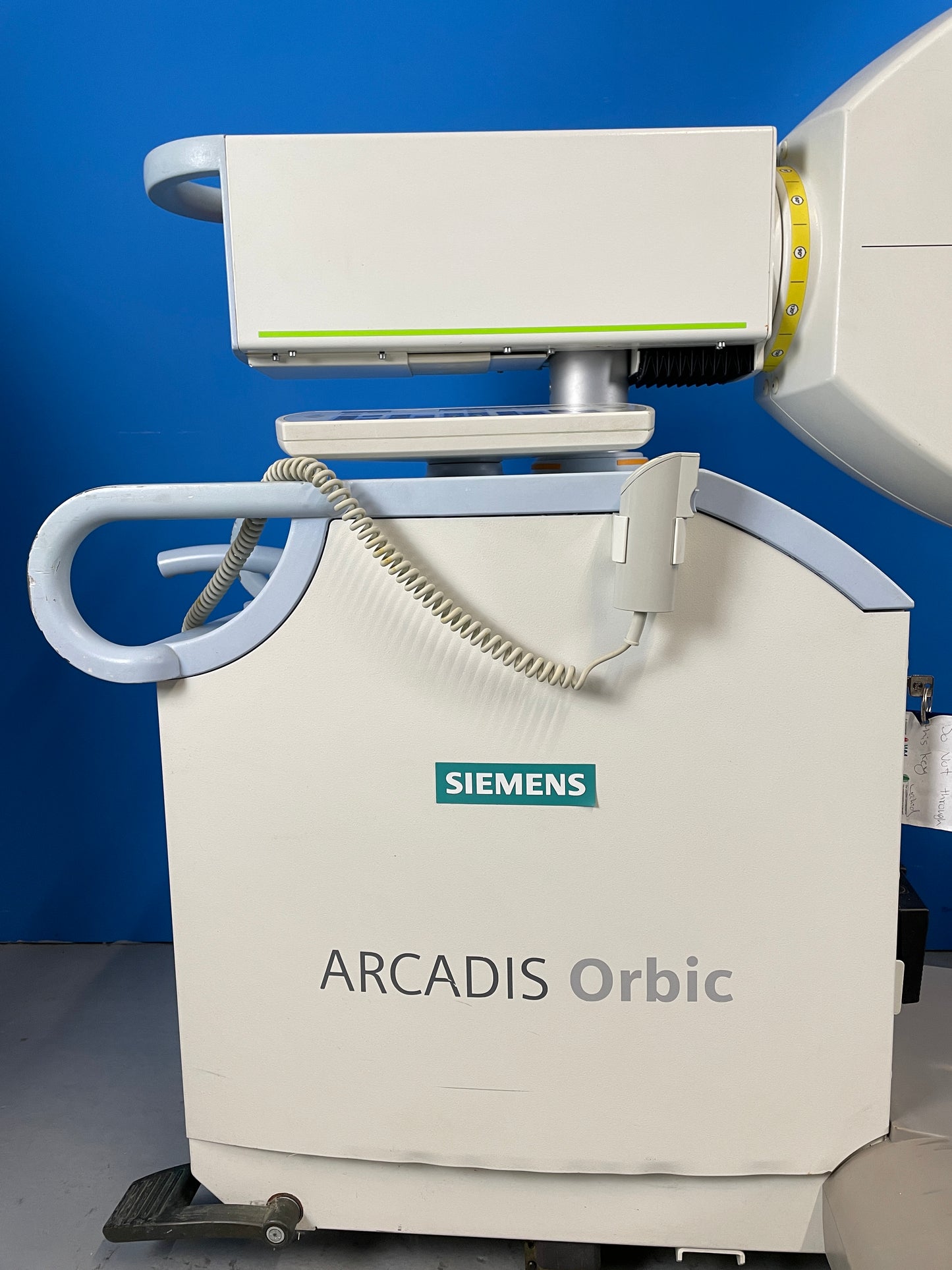

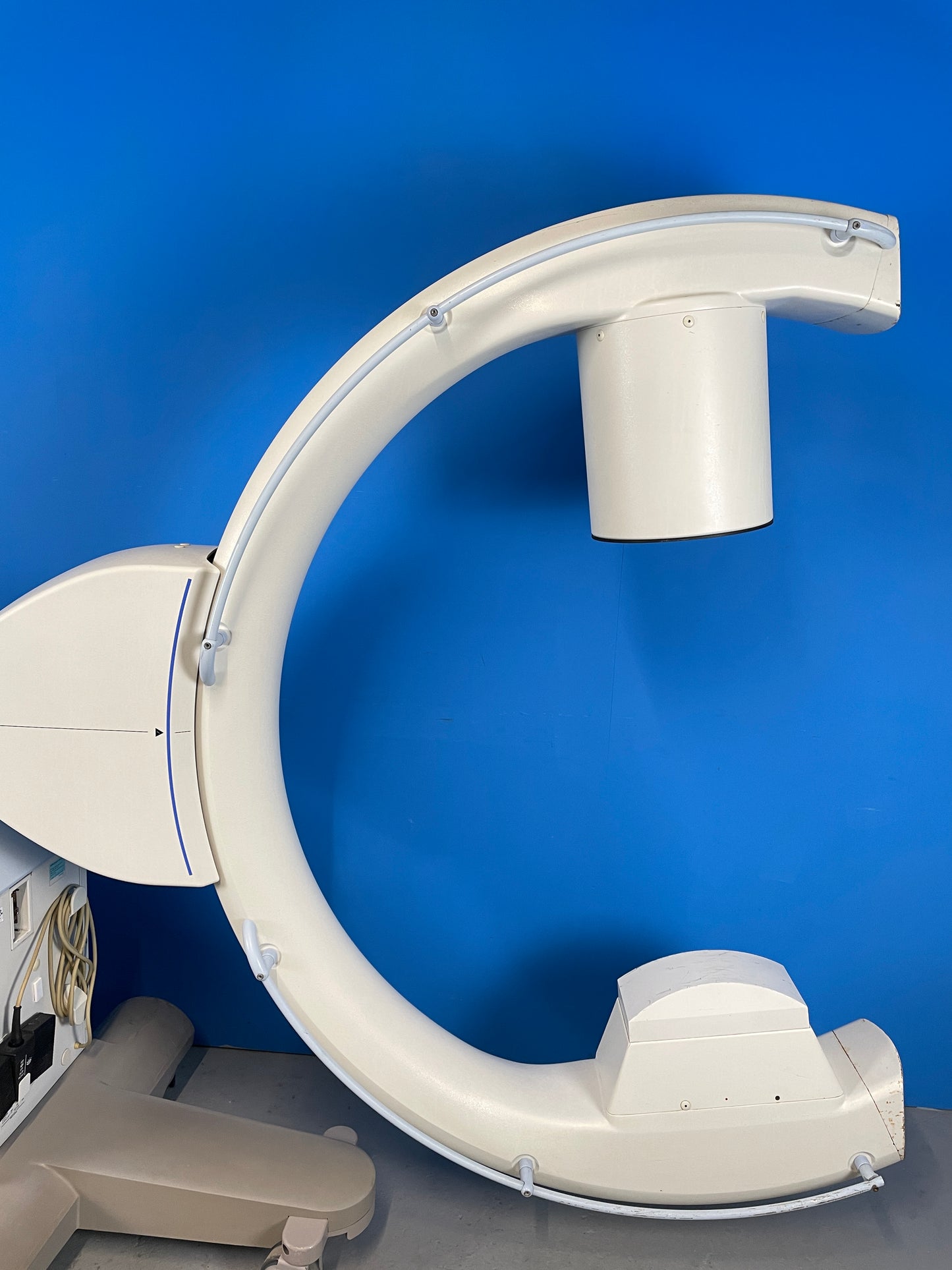

• ARCADIS Orbic 3D mobile C-arm system provides fast scan times matched with enhanced image quality.
  • Easy integration into clinical workflows
  • ARCADIS generates 2D images of the human anatomy in only 30 seconds in 1K2 resolution or 60 seconds for 100 2D images.

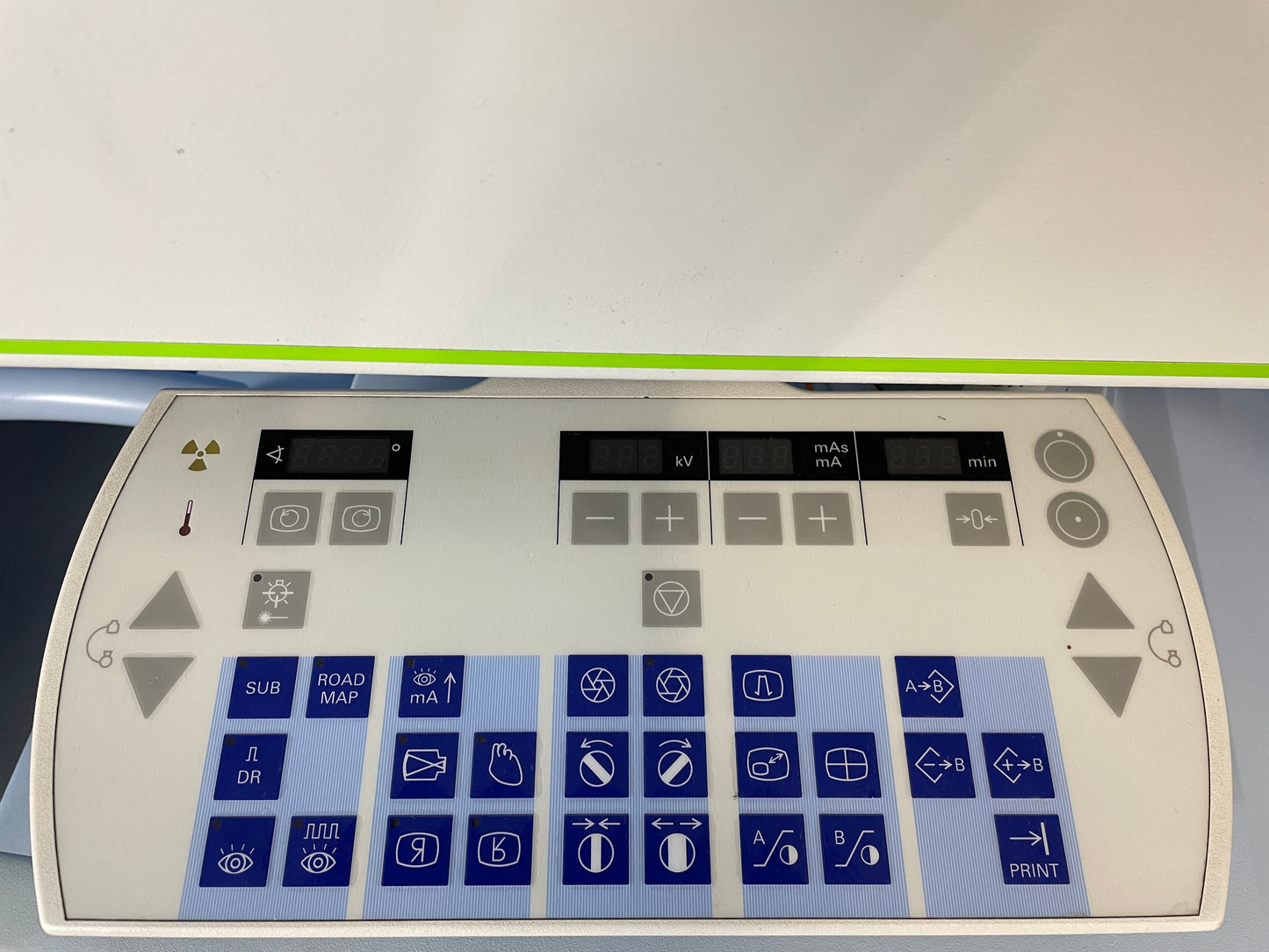

  • Easy access to the different menus, performing patient administation or post-processing on acquired images, with a tip of your finger .

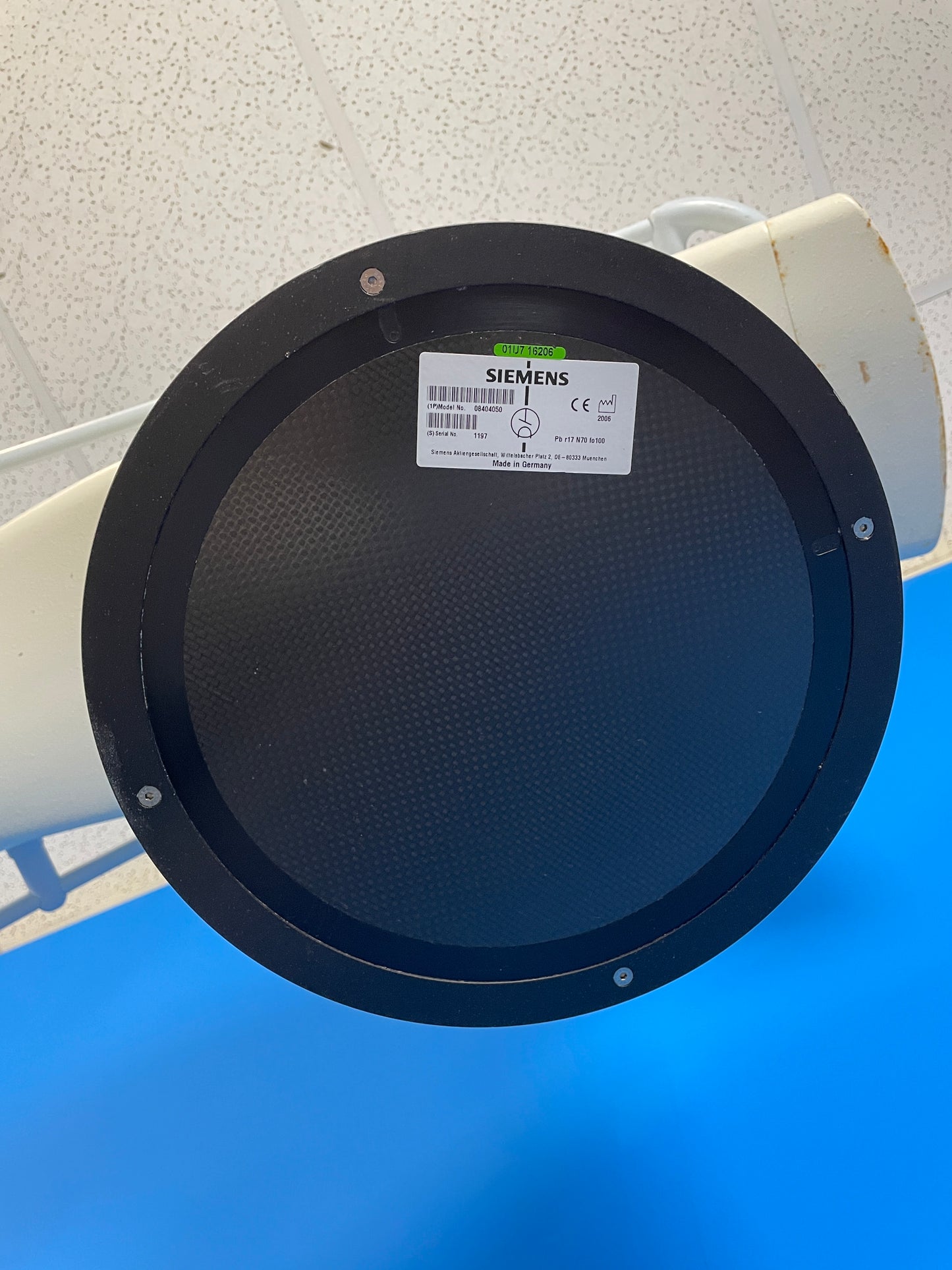

  • The image intensifier is a basic component of an X-ray system and converts X-rays into visible light image which is superior to a simple fluorescent screen.

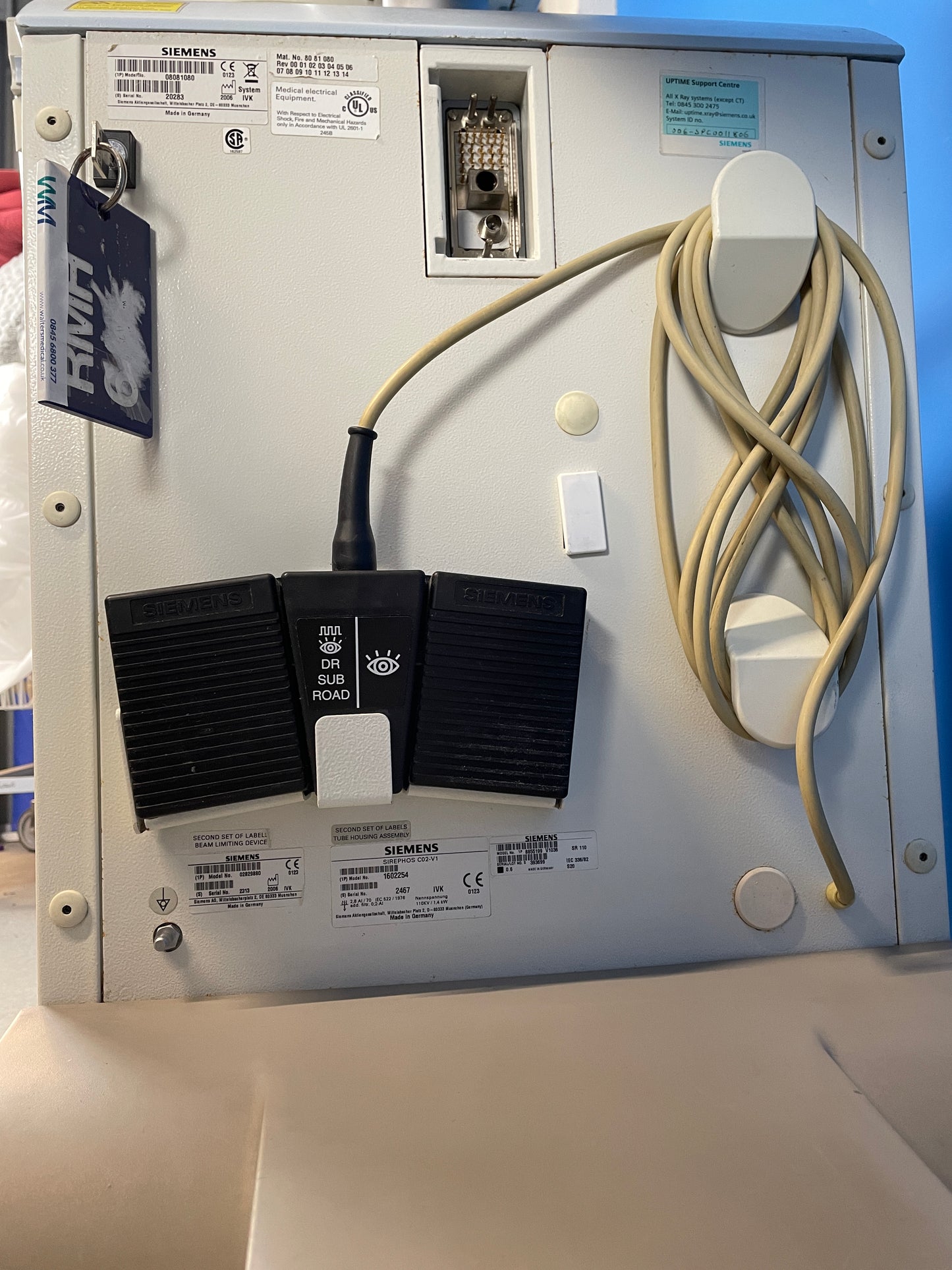

  • foot switch is used with a X-Ray machine or diagnostic machine to control the X-ray emission and to check the human body through fluoroscopy.

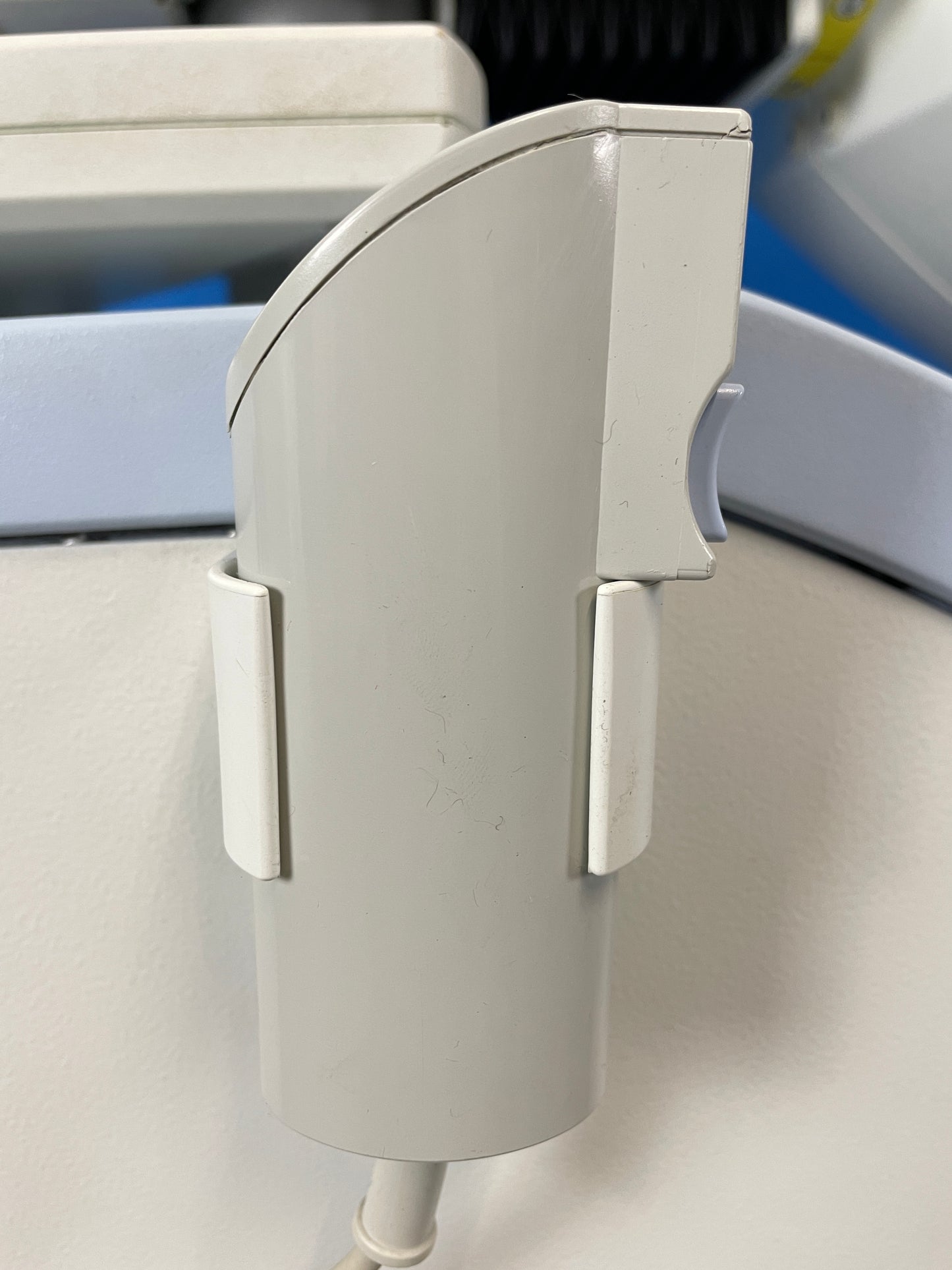

  • The handheld exposure switch is a two-stage switch that controls the separate steps of x-ray tube filament preheat and exposure initiation.
1 7

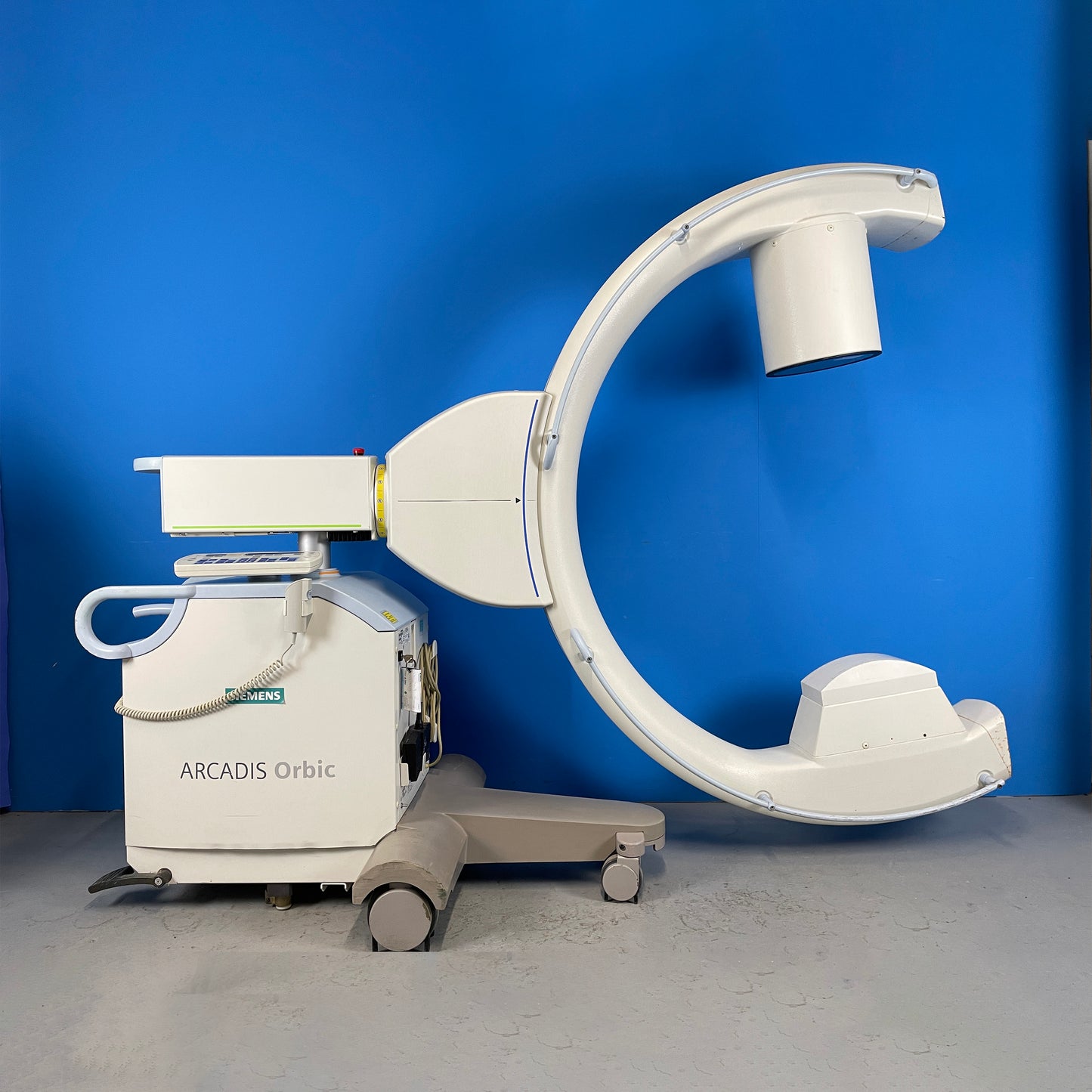

Siemens Arcadis Orbic C-Arm

Siemens Arcadis Orbic C-Arm

The C-ARM includes the following:

  • Foot Switch
  • Hand Switch

The ARCADIS Orbic 3D mobile C-arm system provides fast scan times matched with enhanced image quality. The ARCADIS generates 2D images of the human anatomy in only 30 seconds in 1K2 resolution or 60 seconds for 100 2D images. ARCADIS Orbic 3D C-arm machines can be equipped with the direct 3D navigation interface NaviLink 3D, or choose the integrated optical navigation platform NaviVision 3D

It is well suited for intraoperative use in a multitude of clinical fields, e.g., in pain management, orthopedic, trauma and spine surgery.

The C-ARM consist of following features:

  • Dual-Mode 9/7 in Image Intensifier
  • Rotatable 170°
  • 1k x 1k Imaging
  • Syngo Applications
  • Enhanced Power Mode
  • Virtual Patient Anatomy
  • Examination Task Card
  • Electromagnetic Brakes
  • 190° Orbital Rotation
  • 95° Overscan

Key Highlights

  • Precise imaging and excellent visualization
  • Easy operation
  • Easy integration into clinical workflows
  • Optimal flexibility in data handling
  • Truly digital navigation with NaviLink 2D*


The C-Arm system powers up and completes the self-test.
The System Powers on and produces excellent images on LCD.
The System is in Excellent Condition.
Our team of product experts ensures that each system is in excellent condition and produces stunning images when tested with a telescope.
Contact us today to learn more and get a personalized estimate for your needs.
Don't hesitate to ask any questions - we are here to help you make the most informed decision for your medical practice.
