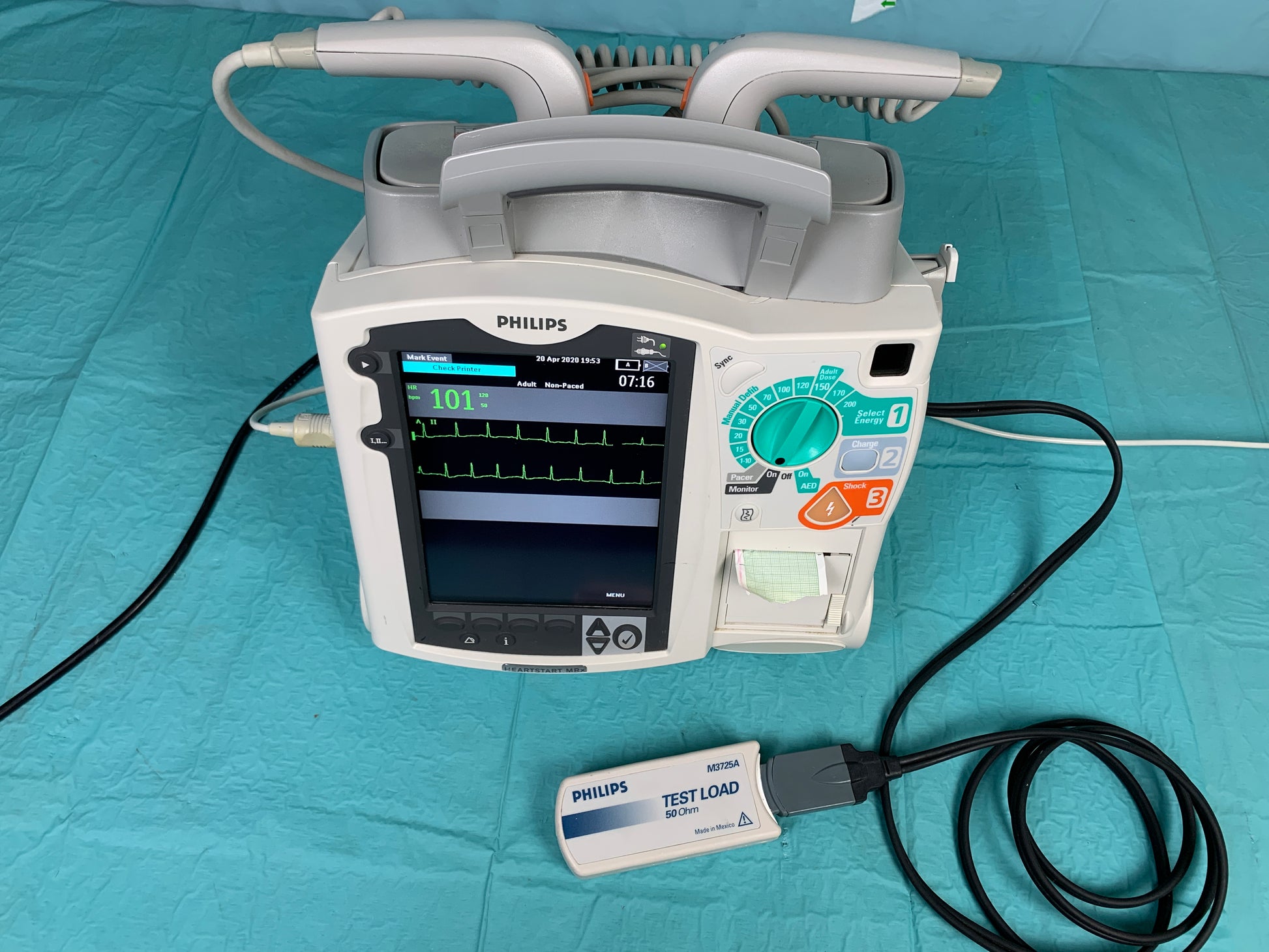

• PHILIPS Heartstart MRX Monitor/Defibrillator resuscitation, and clinical networking

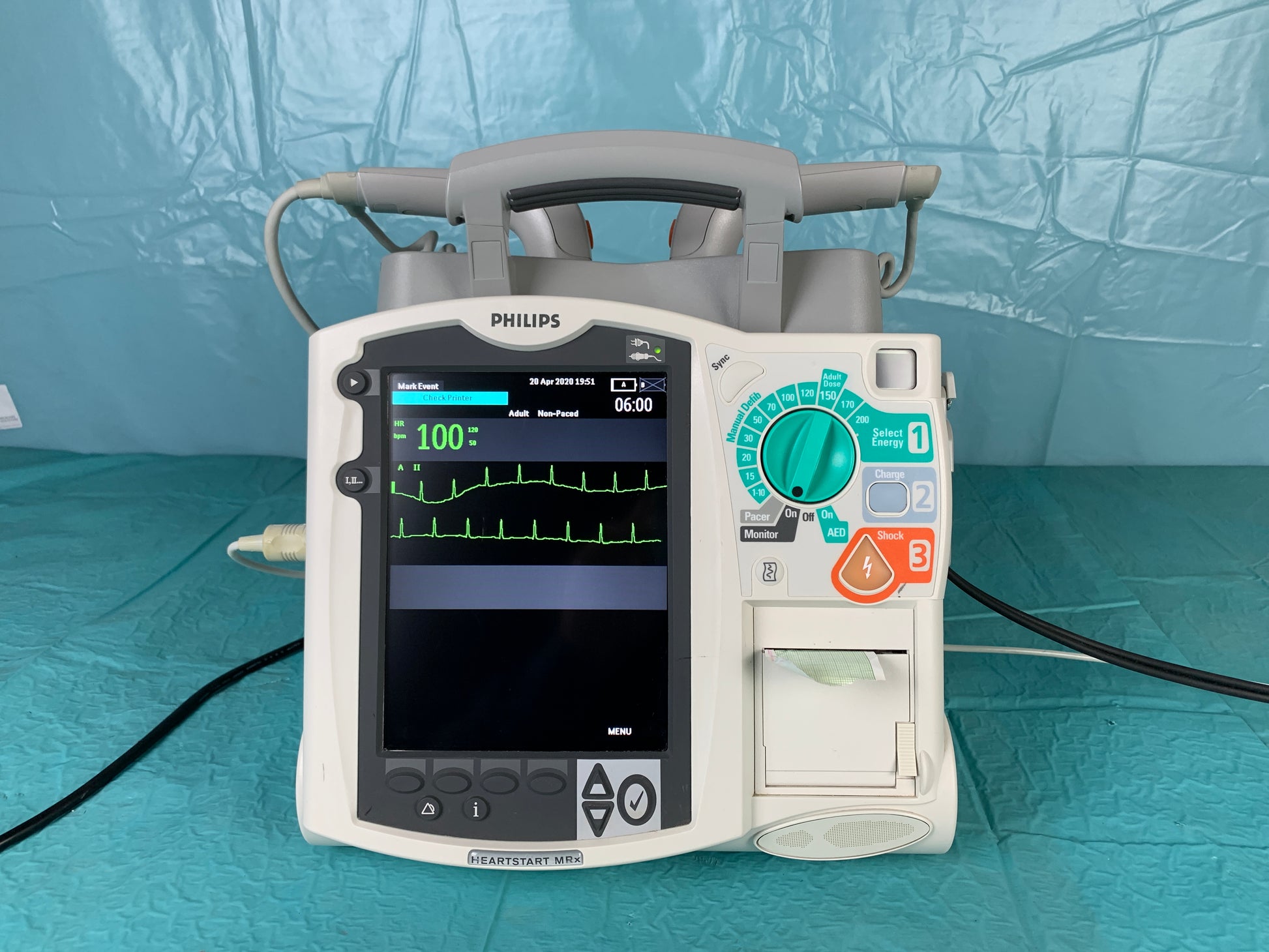

  • PHILIPS Heartstart MRX with bright LCD Screen for viewing waveform

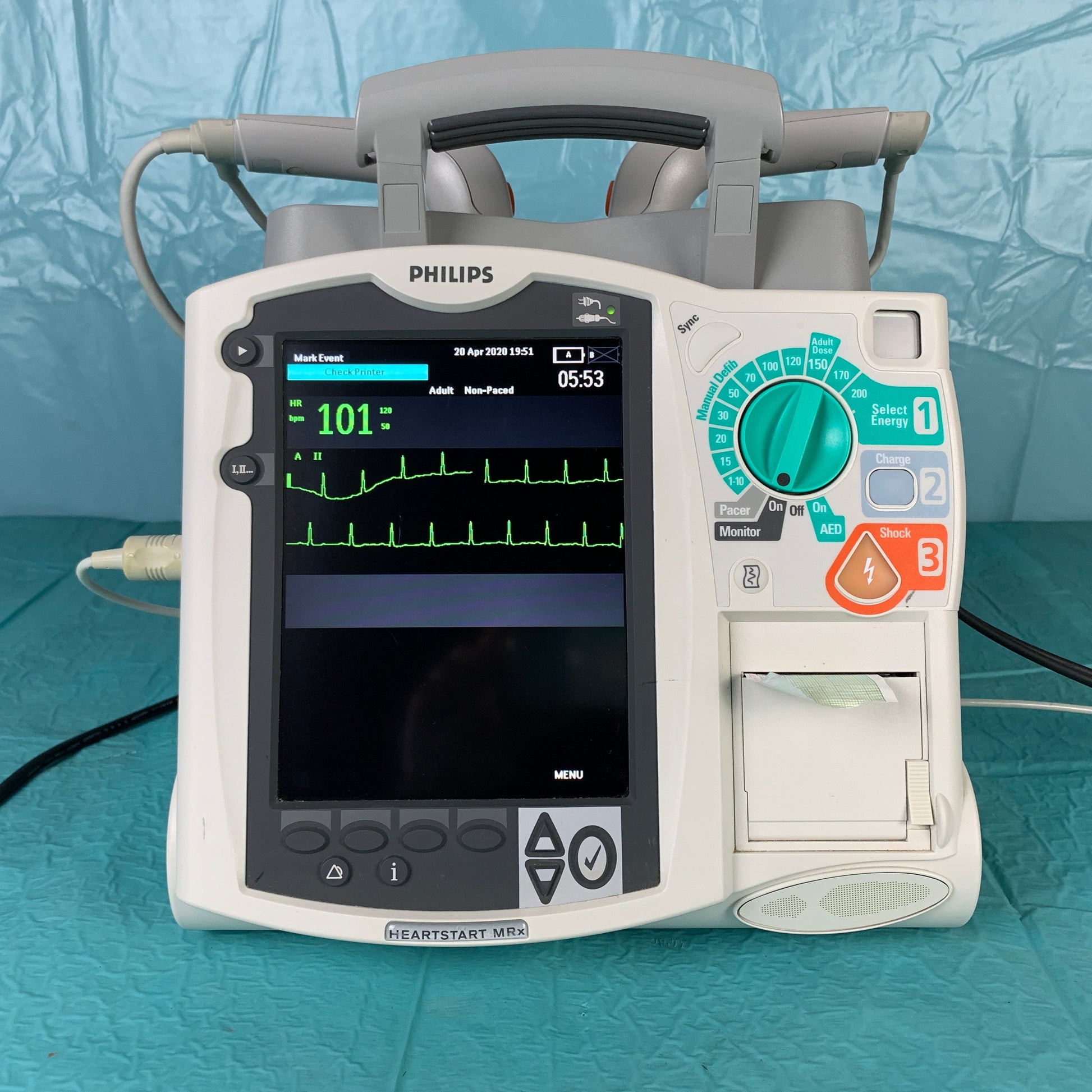

  • Philips MRX overview of the outside of the Defibrillator

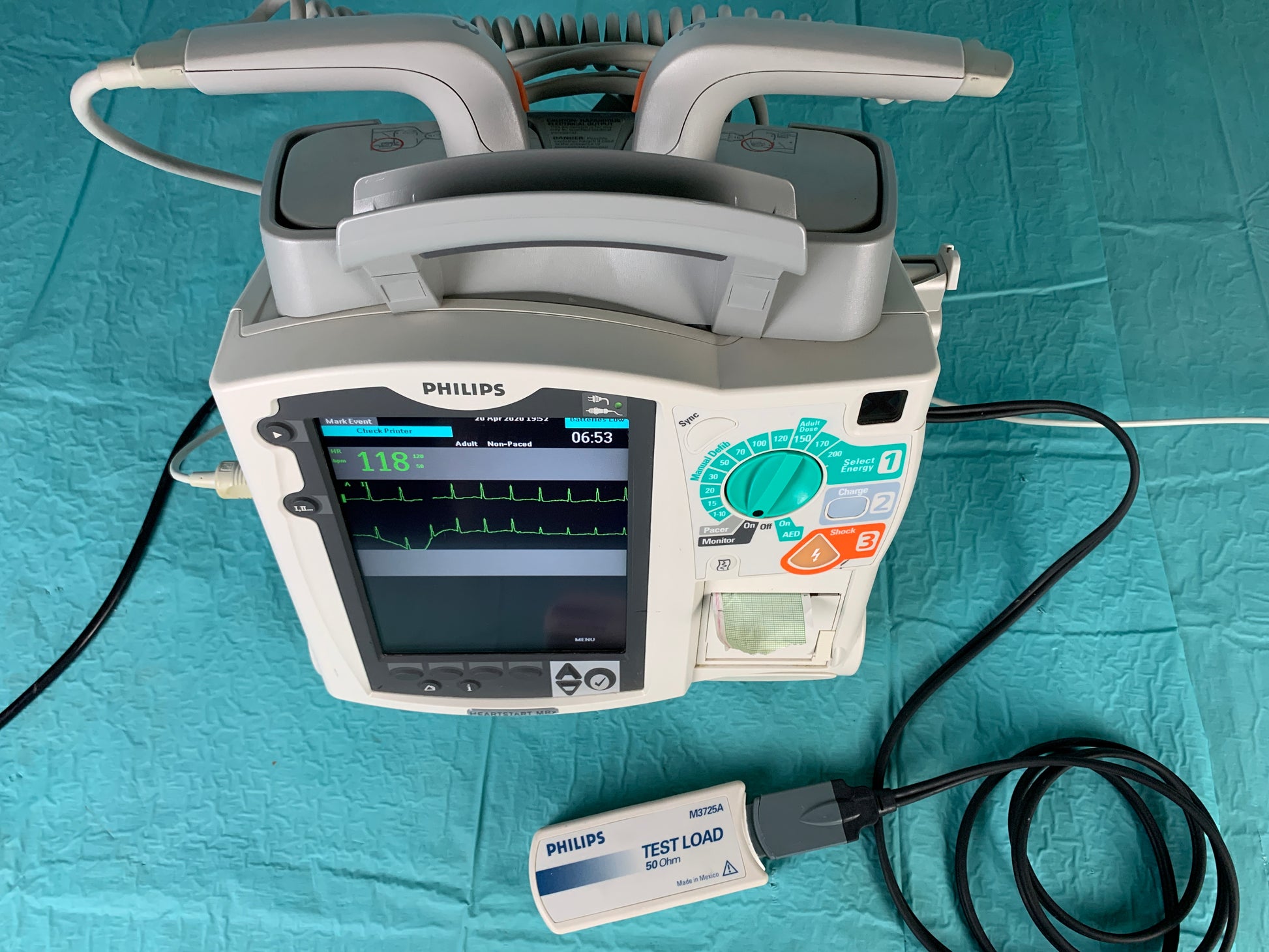

  • HeartStart MRX ECG processing including filtering, beat detection, and rhythm analysis with Printer Option

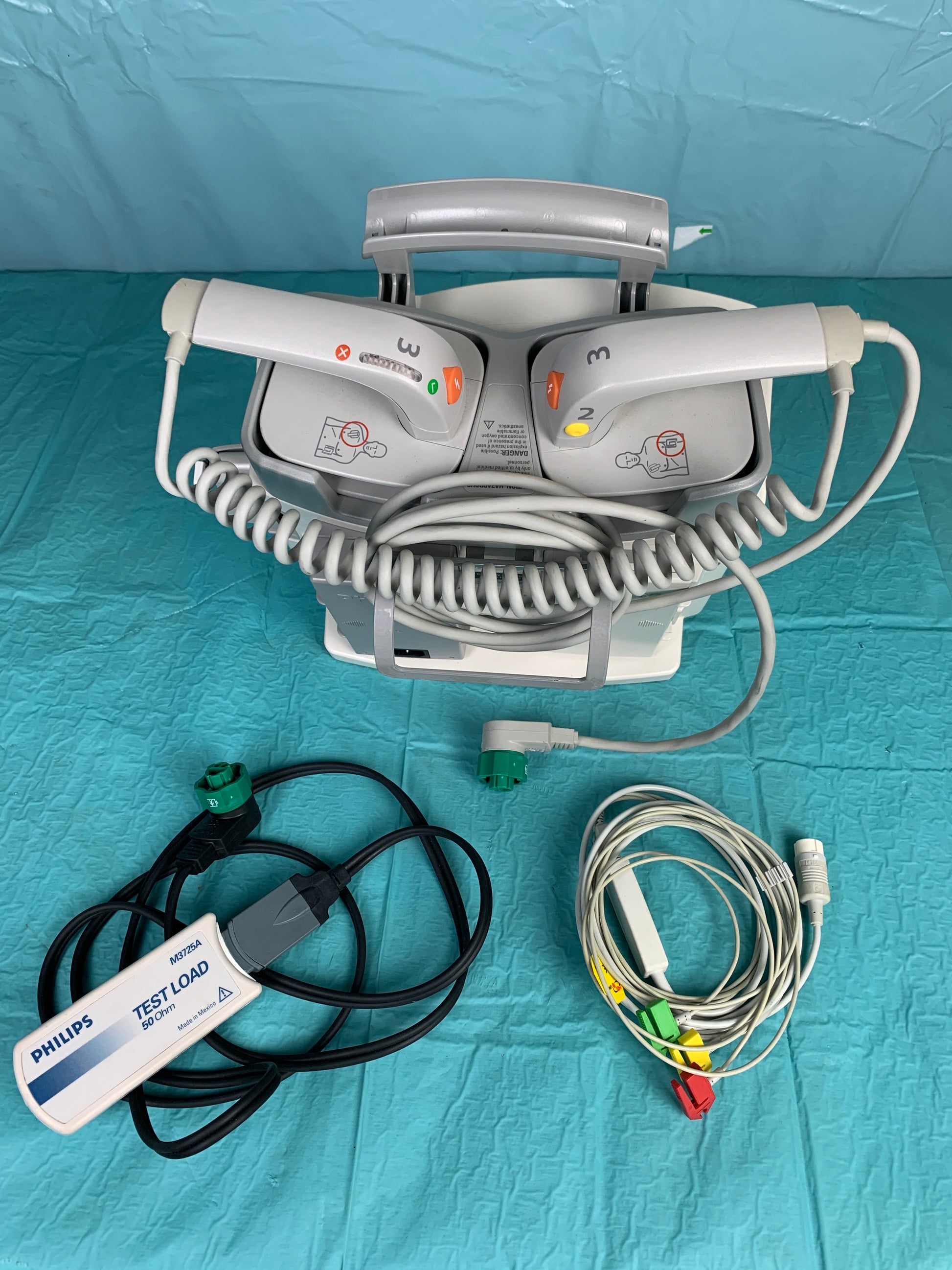

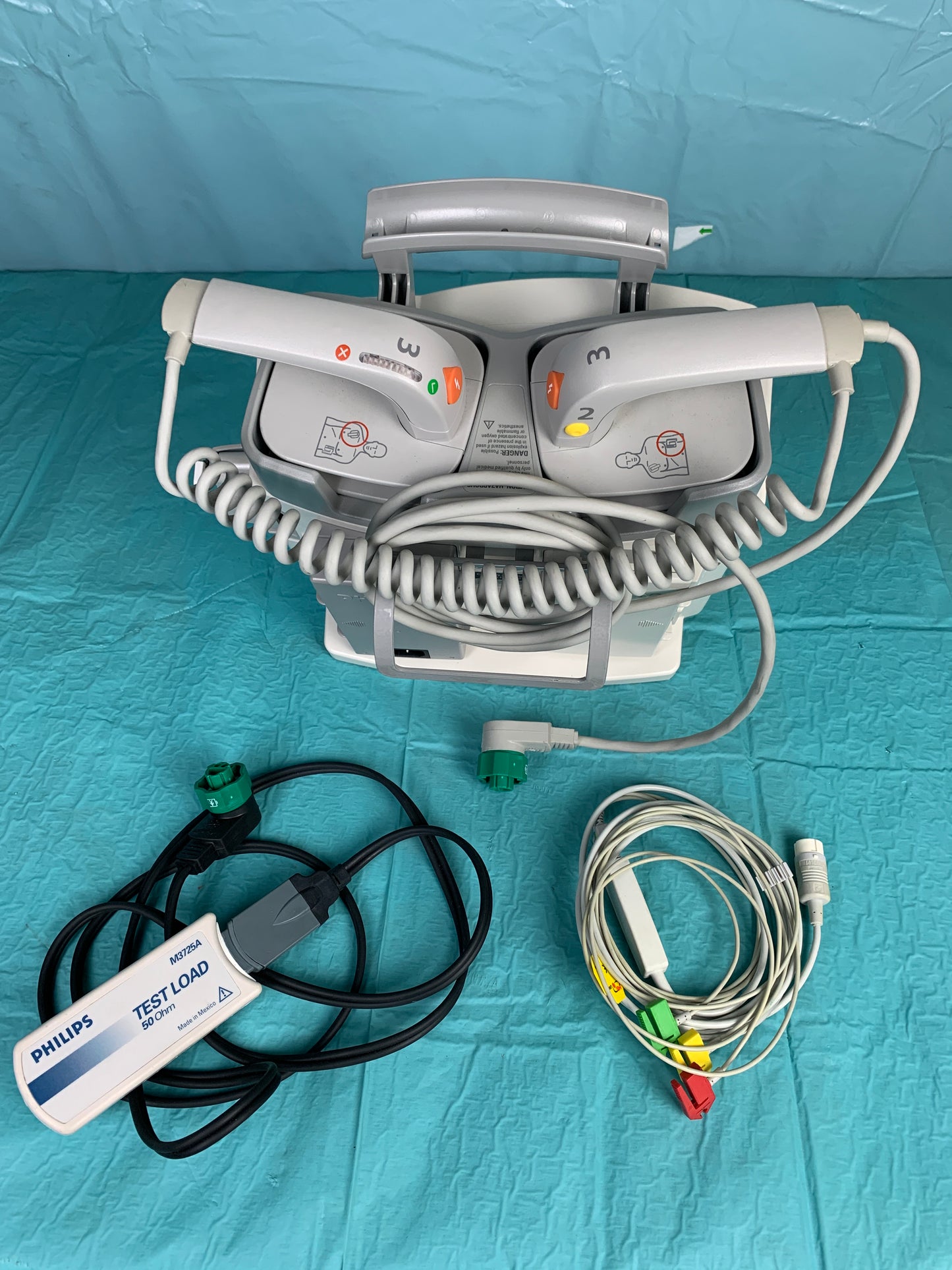

  • Rear view of HeartStart MRX with Accessories and hard paddles
1 5

Philips Heartstart MRX Defibrillator

Philips Heartstart MRX Defibrillator

Philips Heartstrart MRX includes

  • Foot Pedals

The HeartStart MRx Monitor/Defibrillator unites Philips industry-leading monitoring, superior diagnostic measurements, proven therapy capabilities, and CPR measurement and feedback in a lightweight and intuitive package designed to help caregivers save lives every day.

The Philips Heartstart MRx is a lightweight, portable monitor/defibrillator. with the capability to offer four different modes of operation; monitor, manual Defibrillate, AED, and pacing. The Heartstart MRx defibrillator was designed to provide both monitoring and resuscitation by using mutual-parameter functions, including algorithms and options for transferring data to, a full range of defibrillation therapies. The Heartstart MRx is fast and reliable with 12-lead ECG and advanced STEMI support. The MRx has a large 8-inch colour screen displaying up to 4 waveforms and numerics. The Philips Heartstart MRx additionally monitors other parameters: arrhythmia detection, SpO2, NIBP, IBP, EtCO2, and temperature.

Available Options

  • Non-Invasive Pacing: SpO2 pulse oximetry.
  • Non-Invasive Blood pressure: CO2 monitoring.
  • Invasive Blood Pressure (2 lines): Continuous temperature monitoring.
  • 12-Lead Acquisition: 12-lead transmission.
  • Q-CPR Measurement and Feedback: Audio recording.
  • ACI-TIPI & TPI Predictive Instruments: Periodic clinical data transmission.
  • Batch/LAN Data Transfer

Features

  • Waveform: Biphasic Truncated Exponential. Waveform parameters are adjusted as a function of patient impedance.
  • Output Energy: Manual (selected): 1-10, 15, 20, 30, 50, 70, 100, 120, 150, 170, 200 Joules maximum energy, limited to 50 Joules for internal defibrillation. AED Mode (single energy output): 150 Joules into a 50-ohm load.
  • Charge Time on the MRx: Less than 5 seconds to 200 Joules with a new, fully charged lithium-ion battery at 25º C.
  • Shock Delivery: Via multifunction defib electrode pads or paddles.
  • Quick Shock: Less than 10 seconds from the cessation of CPR to shock delivery.
  • Patient Impedance Range
  • Minimum: 15 ohm (internal defibrillation); 25 ohm (external defibrillation).
  • Maximum: 150 ohm.
  • AED Mode on the MRx: Shock advisory sensitivity and specificity meet AAMI DF-39 guidelines.
  • Compact, lightweight and intuitive unit
  • Industry-leading physiologic measurements
  • Clinical networking capability* on the IntelliVue Clinical Network for monitoring and review at the central station
  • Arrhythmia using ST/AR
  • Pulse Oximetry with FAST SpO2
  • Non-invasive Blood Pressure (NBP)
  • Invasive Blood Pressure (IBP)
  • Microstream® Capnography (EtCO2)
  • Philips 12-lead ECG
  • Continuous Temperature
  • Vital Signs Trending
The Unit powers on and complete self test.
The Defibrillator is in Excellent Condition.
Our team of product experts ensures that each system is in excellent condition and produces stunning images when tested with a telescope.
Contact us today to learn more and get a personalized estimate for your needs.
We are here to help you make the most informed decision for your medical equipment purchases in your budget.
