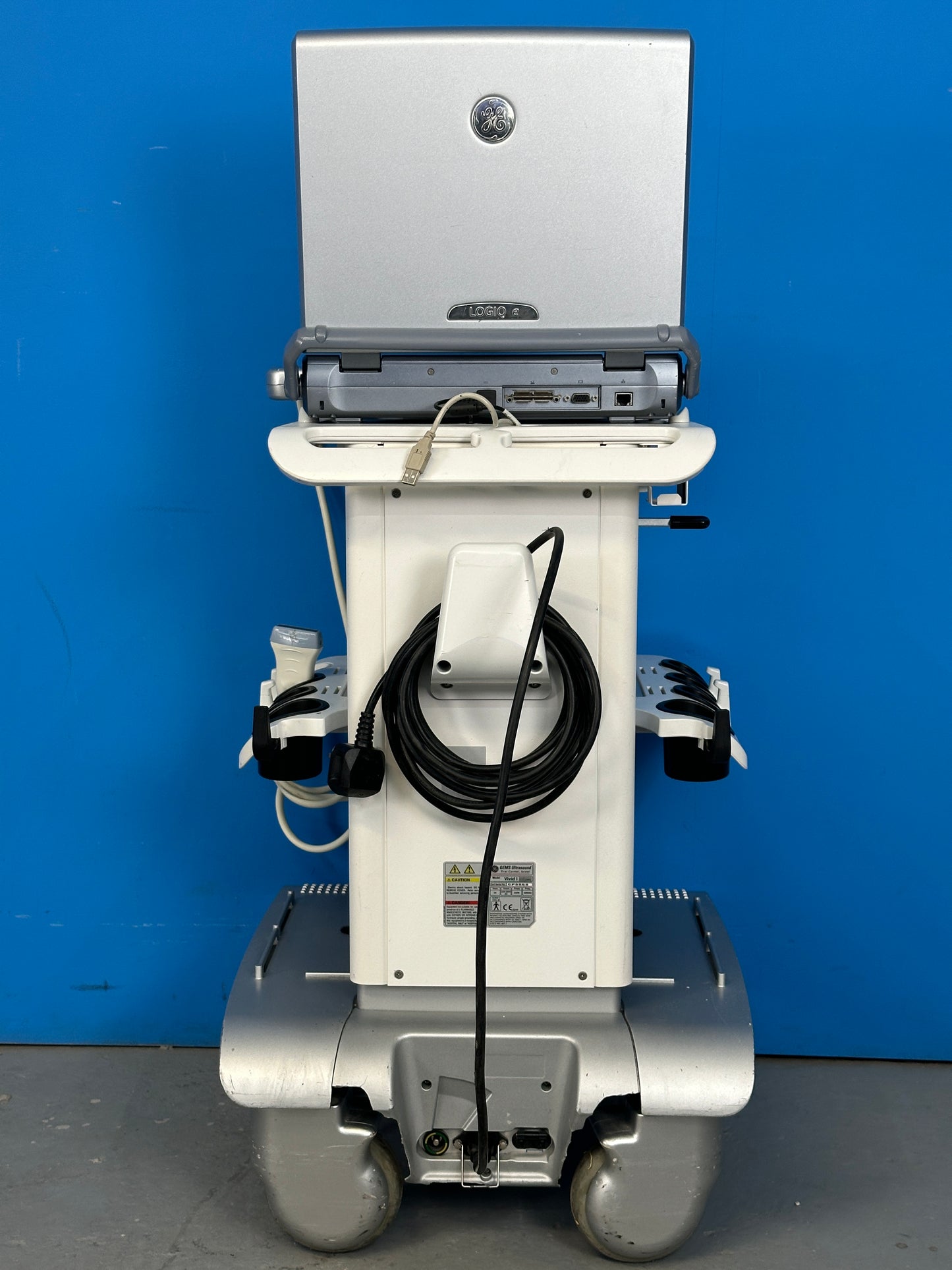

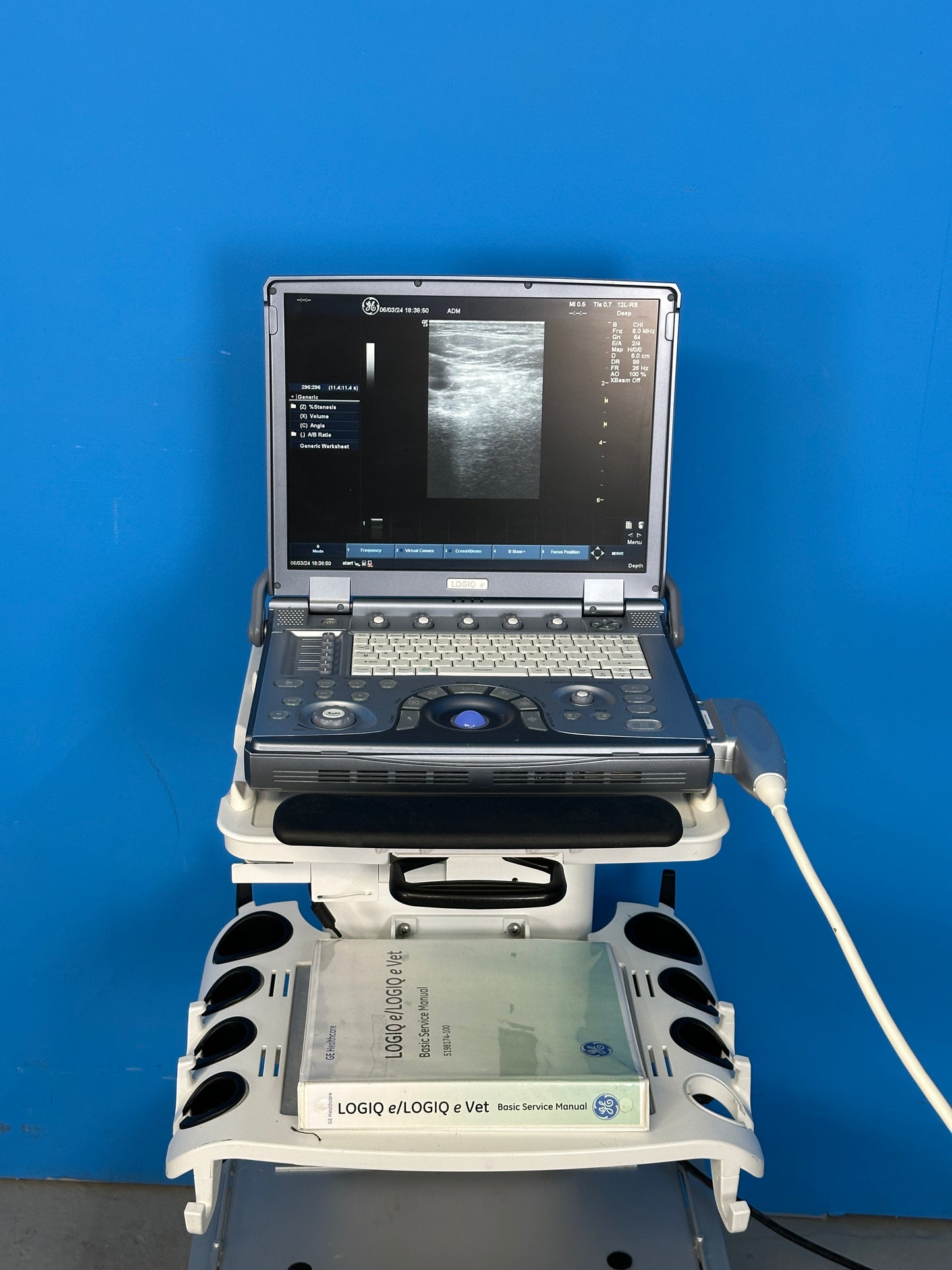

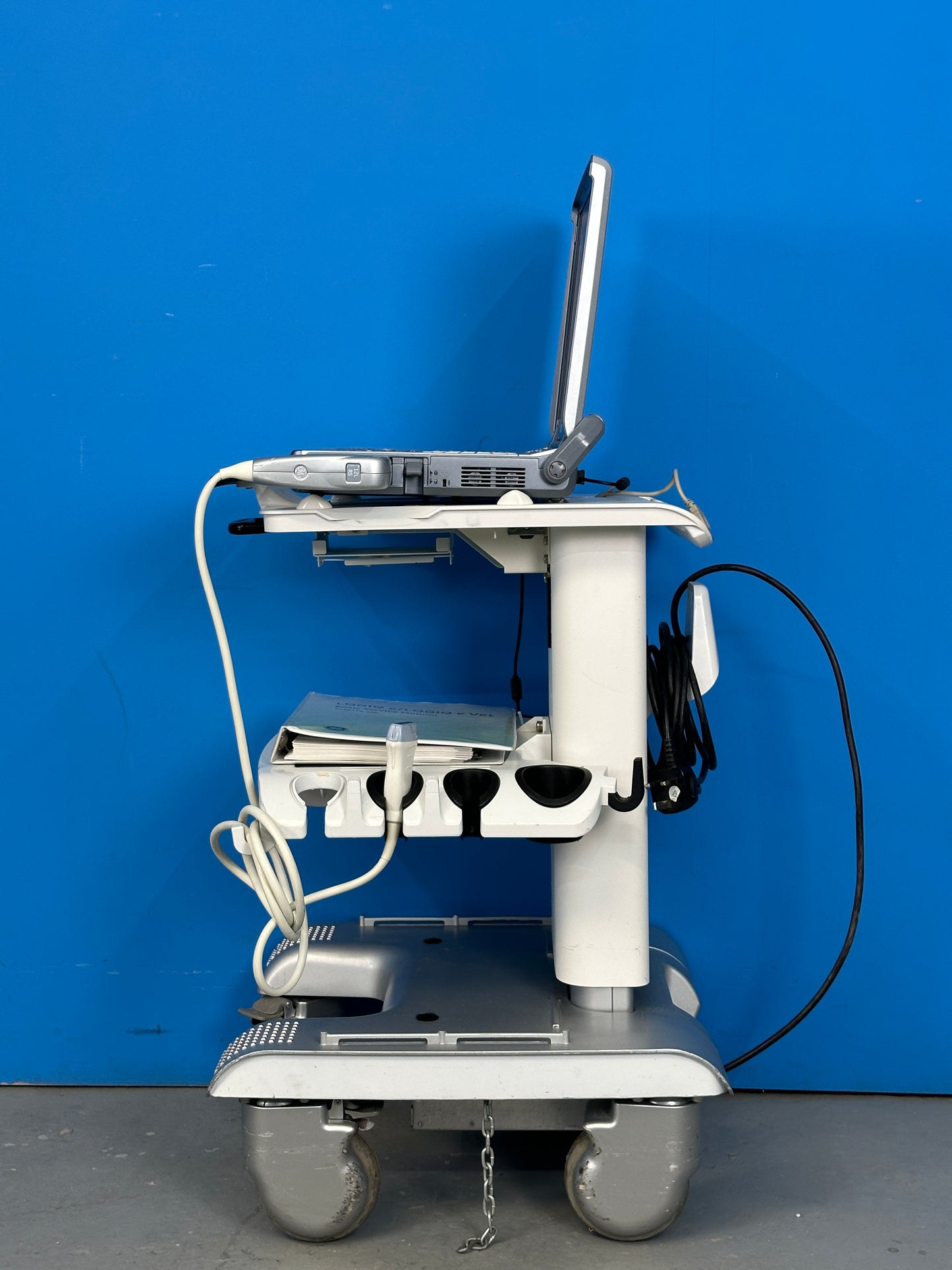

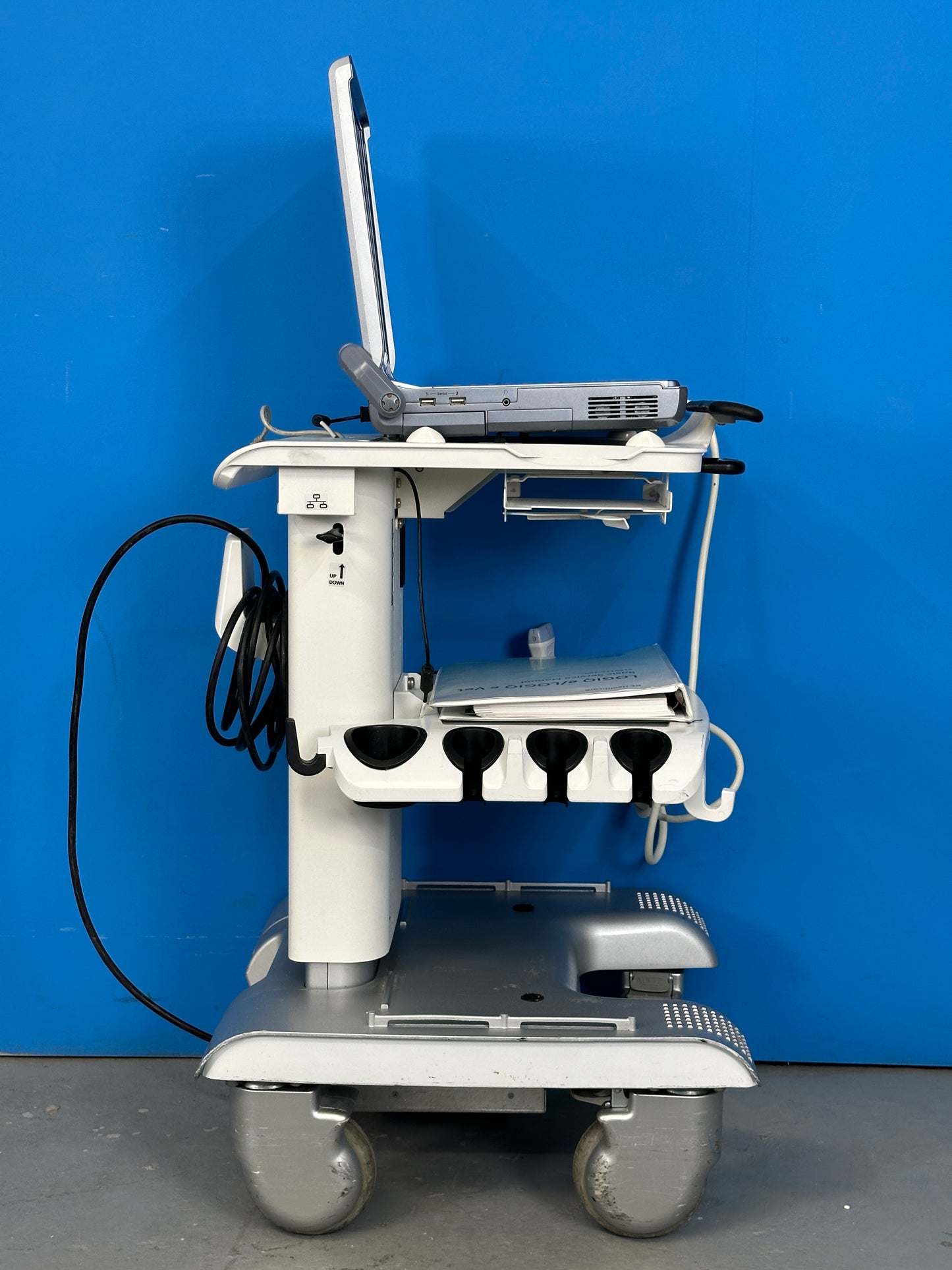

Logiq e is a highly portable system easily moves from patient to patient, anywhere around your healthcare facility with no bulky cart to manage. It also offers immediate access to depth, gain, and focal position, keeping up with the needs of today’s technicians. GE Logiq e best feature is its versatility. It is used in many different situations and has needle-guidance software, Tissue Doppler, CW Doppler, and a wide variety of imaging presets..
LOGIQ e automatically recalls all of the imaging parameters, comments and body patterns to be identical to your previous exam. It even provides an alert if you use a different transducer than last time. Works in B-Mode, Color Mode and PDI. LOGIQ e was built to help make healthcare professionals even faster at performing scans. It also allows you to see a wider field of view for comparing normal to abnormal anatomy.
Software Options:
Easy3D
LOGIQview
B-Steer + Needle Recognition
CrossXBeam*
CMM and AMM
Stress Echo
TEE Probe Support
TDI
IMT
Touch Mode
DICOM 3.0 Connectivity
Applications:
Abdominal
Cardiac
Gynecology
Intraoperative
Musculoskeletal
Obstetrical
Nerve Block
Pediatric and Neonatal
Small Parts and Superficial
Urological
Vascular
Transducer Types:
Convex Array
Microconvex Array
Linear Array
Phased Array
Compatible Transducers:
4C-RS Wide Band Convex Probe
8C-RS Wide Band Microconvex Probe
E8C-RS Wide Band Micro-convex
3S-RS Wide Band Phased Array Probe
6S-RS Wide Band Phased Array Probe
L8-18i-RS Wide Band Linear Probe
8L-RS Wide Band Linear Probe
9L-RS Wide Band Linear Probe
12L-RS Wide Band Linear Probe
i12L-RS Wide Band Linear Probe
i/T739-RS Wide Band Linear Probe
6Tc-RS TEE Probe
P2D Non-imaging Probe
Operating Modes:
B-Mode
M-Mode
Anatomical M-Mode
Color Flow Mode (CFM)
Power Doppler Imaging (PDI)
Continuous Wave Doppler (CWD)
Pulse Wave Doppler (PWD)
Tissue Doppler Imaging (TDI assess direction and velocity of myocardial motion)
User Interface
Operator Keyboard
Alphanumeric Keyboard
Ergonomic Hard Key Operations
Integrated Recording Keys for Peripheral and DICOM Devices
6 TGC Pods, with remapping functionality at any depth
Backlight keys
Display Screen:
15 inch High-Resolution Color LCD – Display size: 1024 x 768
Interactive Dynamic Software Menu
Open Angle Adjustable – 0 to 160°
Integrated Speakers
Brightness Adjustment
Audio Volume Adjustment
The Ultrasound is in Excellent Condition, display screen, control panel and trackball, patient registration and image storing options are in good working order. Our team of product experts ensures that each system is in excellent condition and produces stunning images when tested with a Probe. Contact us today to learn more and get a personalized estimate for your needs. We are here to help you make the most informed decision for your medical equipment purchases in your budget.
