The EG-600ZW Gastroscope is equipped with the latest CMOS image sensor technology which provides super high-resolution imaging with 60p video, and over one megapixel still images. CMOS technology provides images as close as 2mm with less peripheral distortion, enabling closer investigation of surface and micro vascular patterns.
CMOS:
The megapixel CMOS image sensor allows the users to capture high-definition still images and 60fps video with a high image quality and a low noise level. Used in combination with FICE, it provides better contrast for vascular and surface patterns in normal and magnified views.
Mega Pixel:
The latest lens technology developed especially for the 600 series Magnification endoscopes provides a wide observation range, which allows to focus the inspected area easier and faster. Even under magnification. A maximum 135* times magnified image can enhance detailed observation.
Multi zoom:
The latest Multi Zoom technology enables to program up to 3 magnification modes upon your needs to realize an easy to control zoom endoscopy for everybody. 2-step Zoom 3-step Zoom 5-step Zoom.
FICE:
FICE Provides the possibility to enhance slight colour differences such as vascular and mucosal patterns without tissue staining. The procedure digitally selects three wavelengths of light and displays reconstructed images.
Water Jet:
The Water Jet function supports constant visualisation for both diagnostic and therapeutic procedures.
Field of view Normal: 140° / Close: 56°
Observation range 1.5~100mm
- Normal: 3~100mm
- Close: 1.5~2.5mm

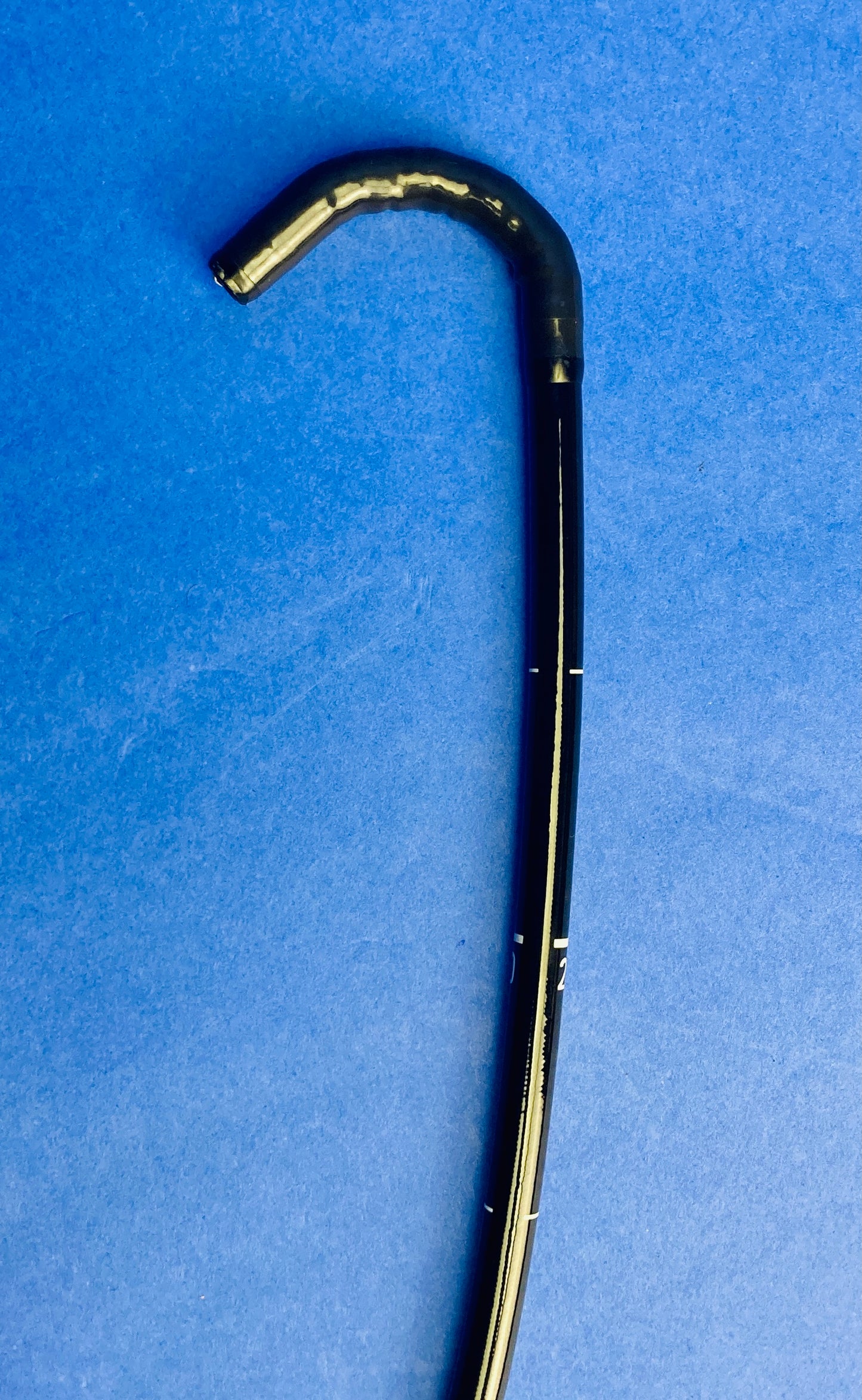

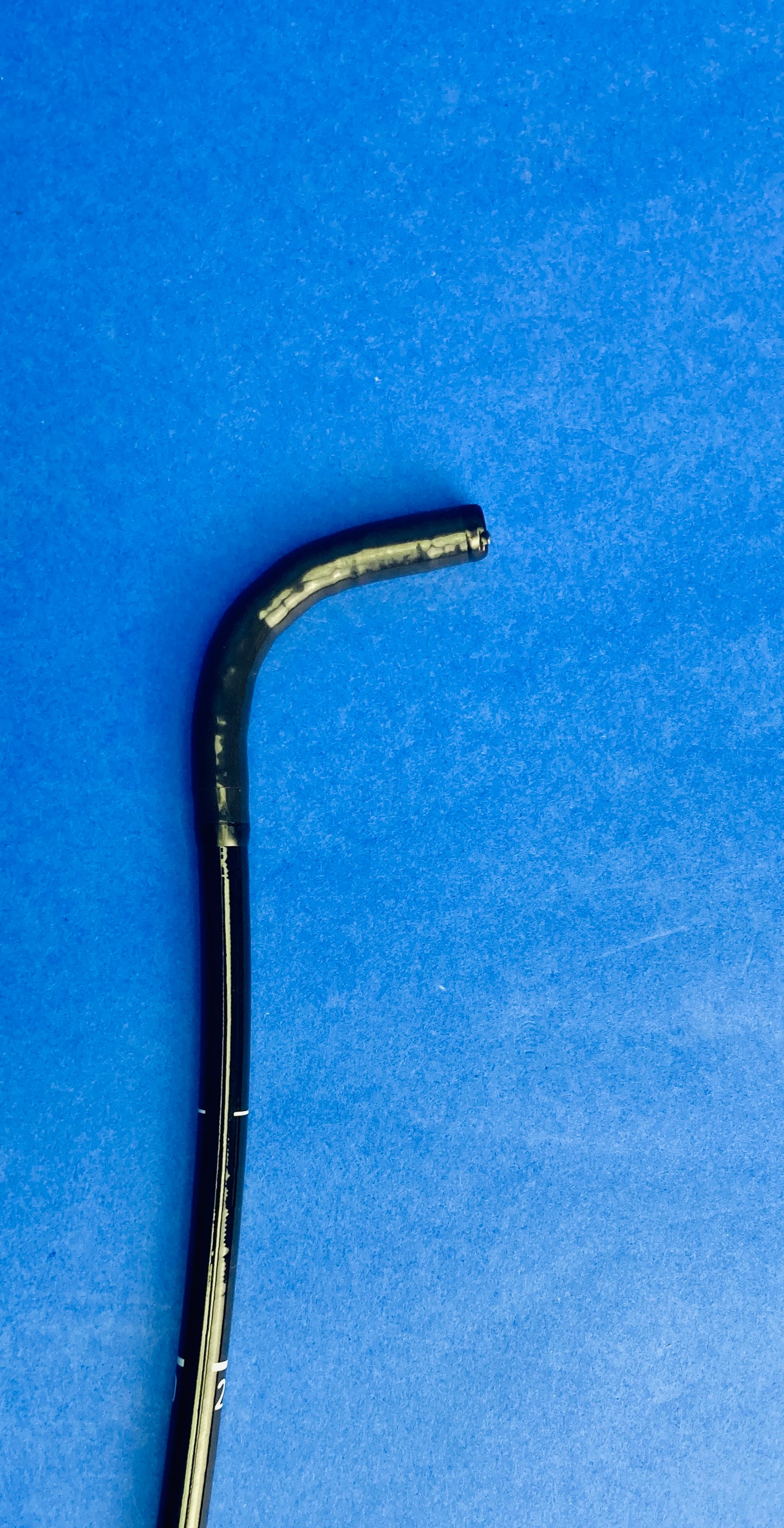

Bending capacity
- Up 210° / Down 90°
- Right 100° / Left 100°
Total magnification 135* times
Distal end diameter 9.9 mm
Flexible portion diameter 9.8 mm
Forceps channel diameter 2.8 mm
Working length 1,100 mm
Total length 1,400 mm

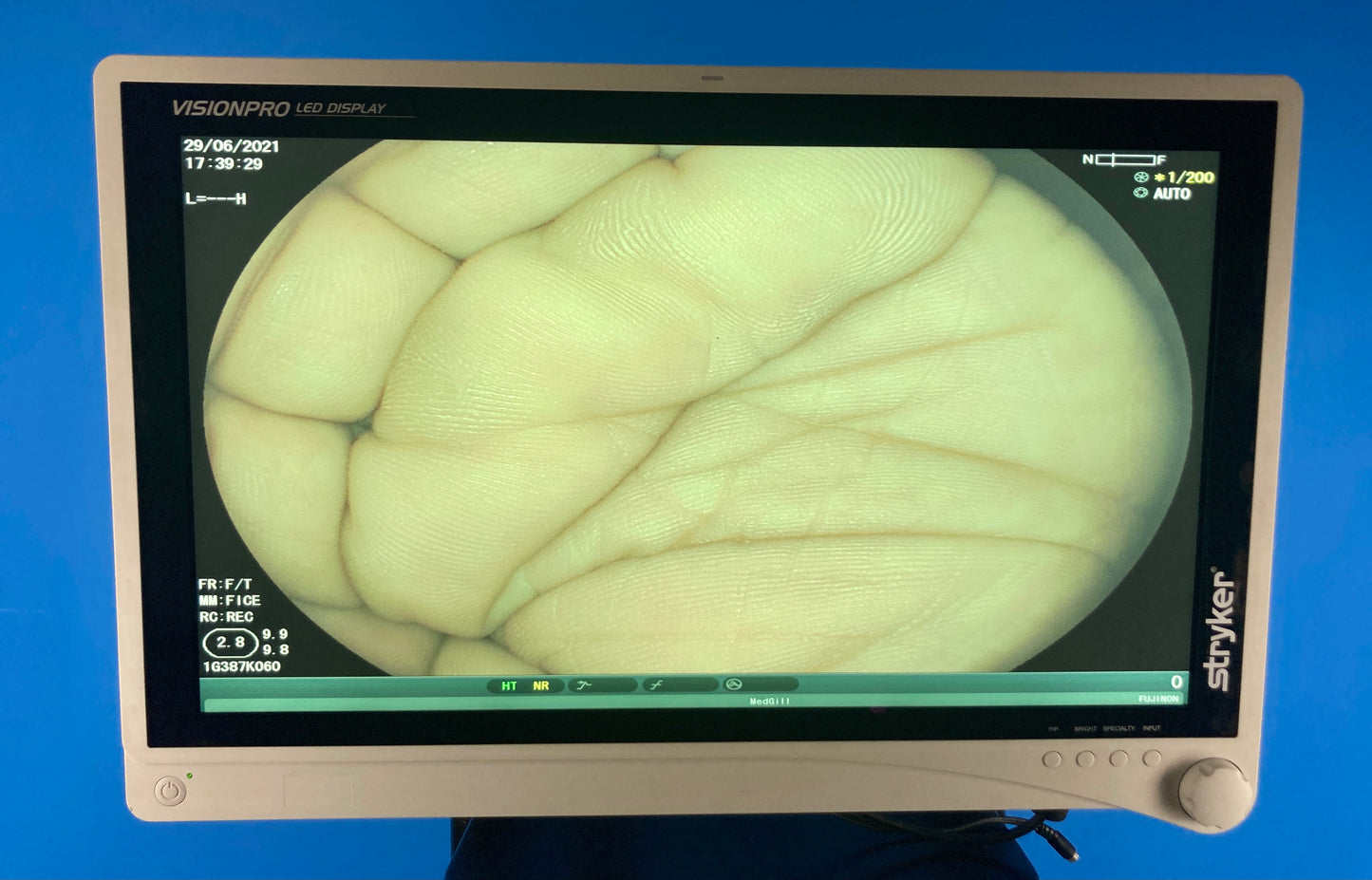

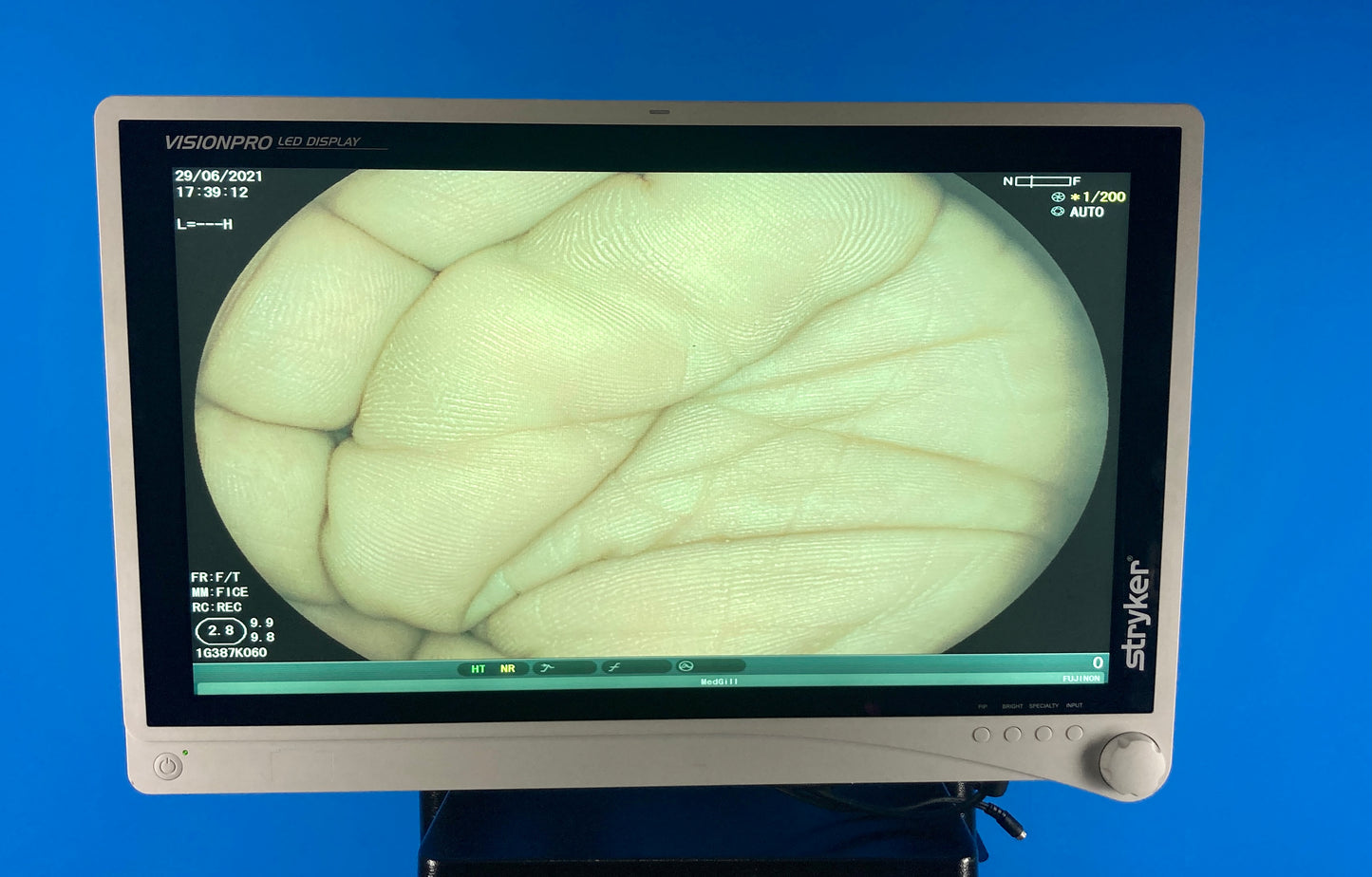

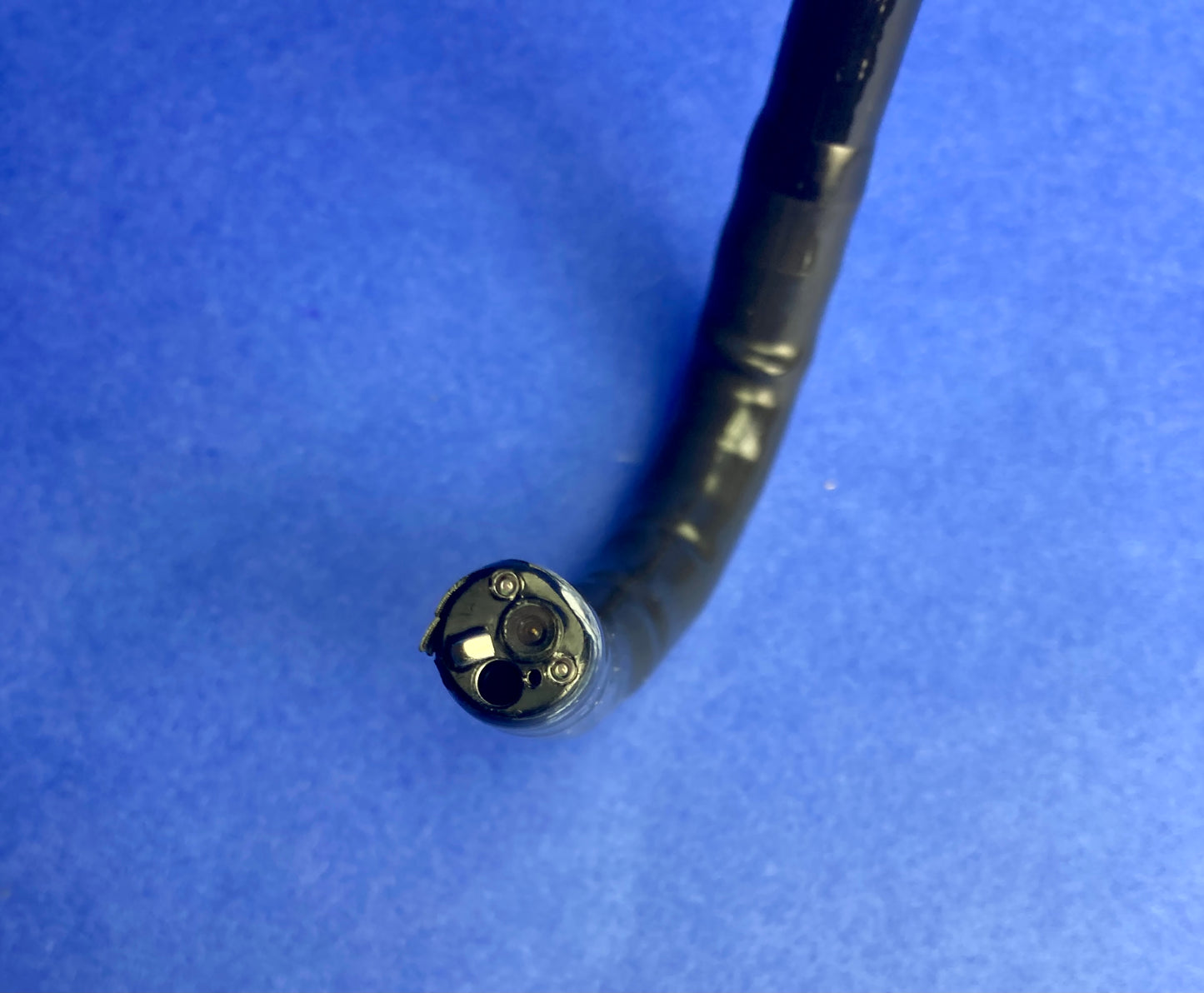

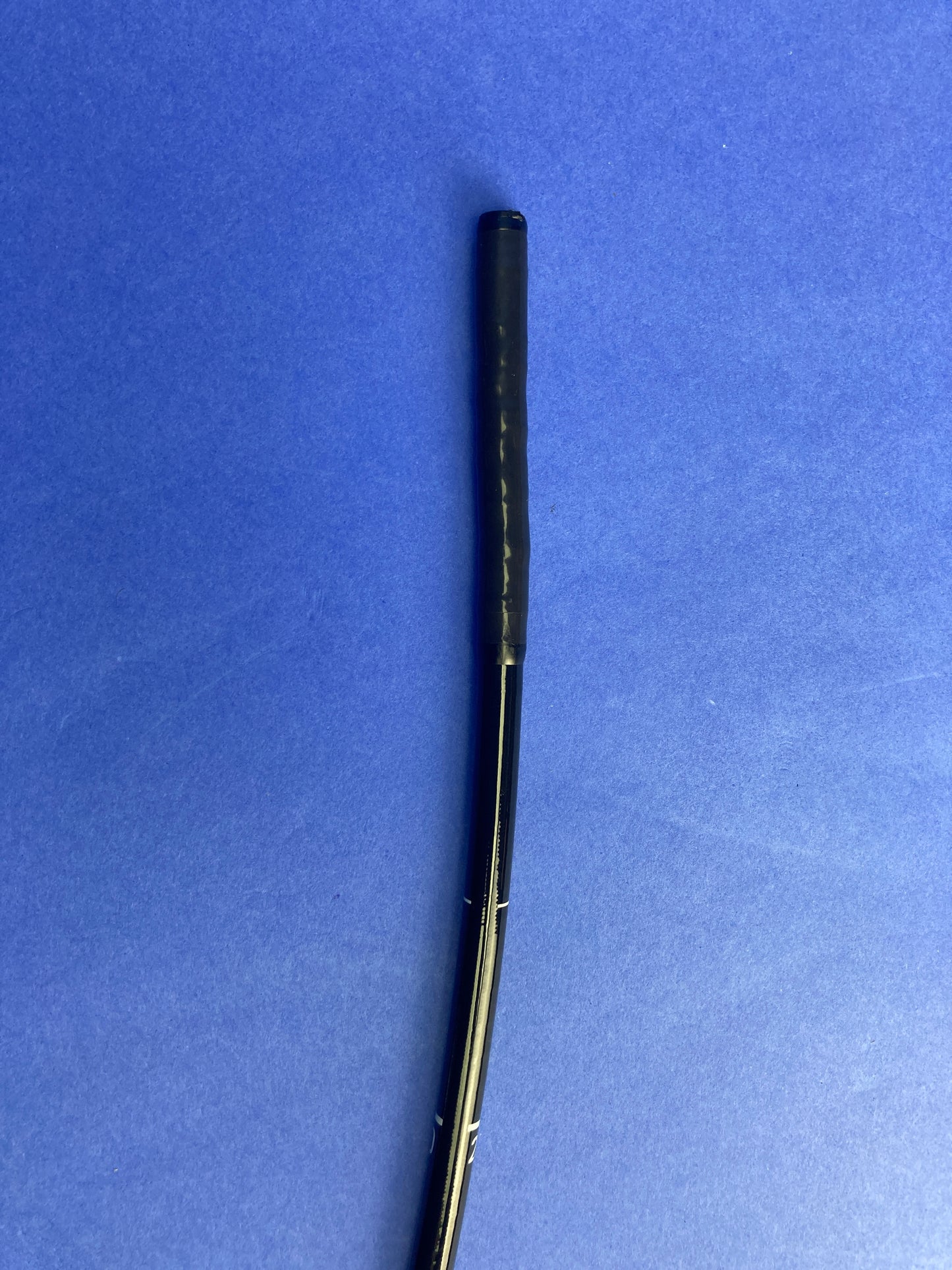

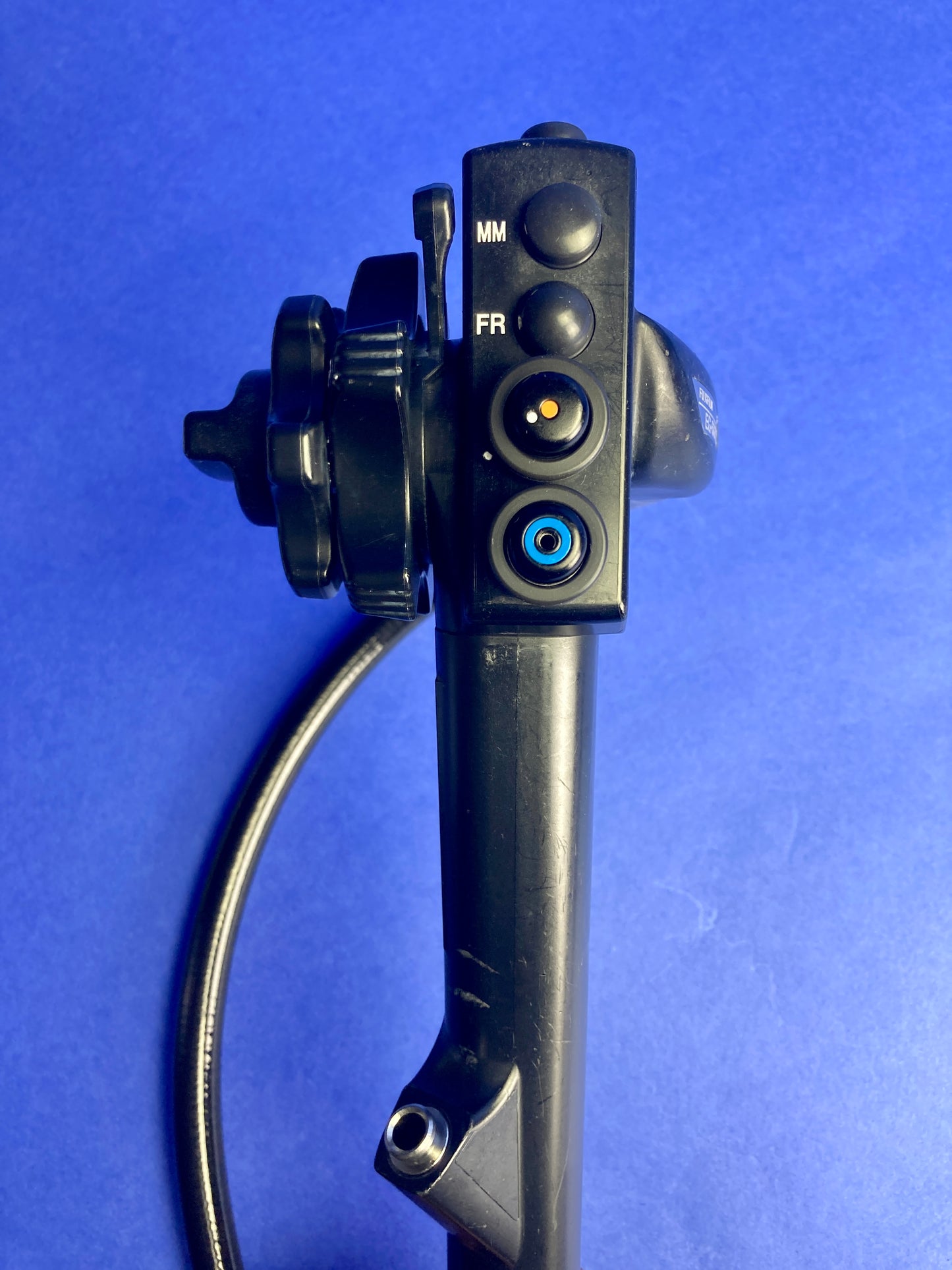

Our team of product experts ensures that the endoscope is in excellent condition and functioning properly. Scope was tested with compatible system and produces clear images. The angulation of the scope is Good. Insertion tube is in Good condition. It passes the leakage test.
Contact us today to learn more and get a personalized estimate for your needs.
Don't hesitate to ask any questions - we are here to help you make the most informed decision for your medical practice.
We service and repair endoscopes as well contact us for more details.
