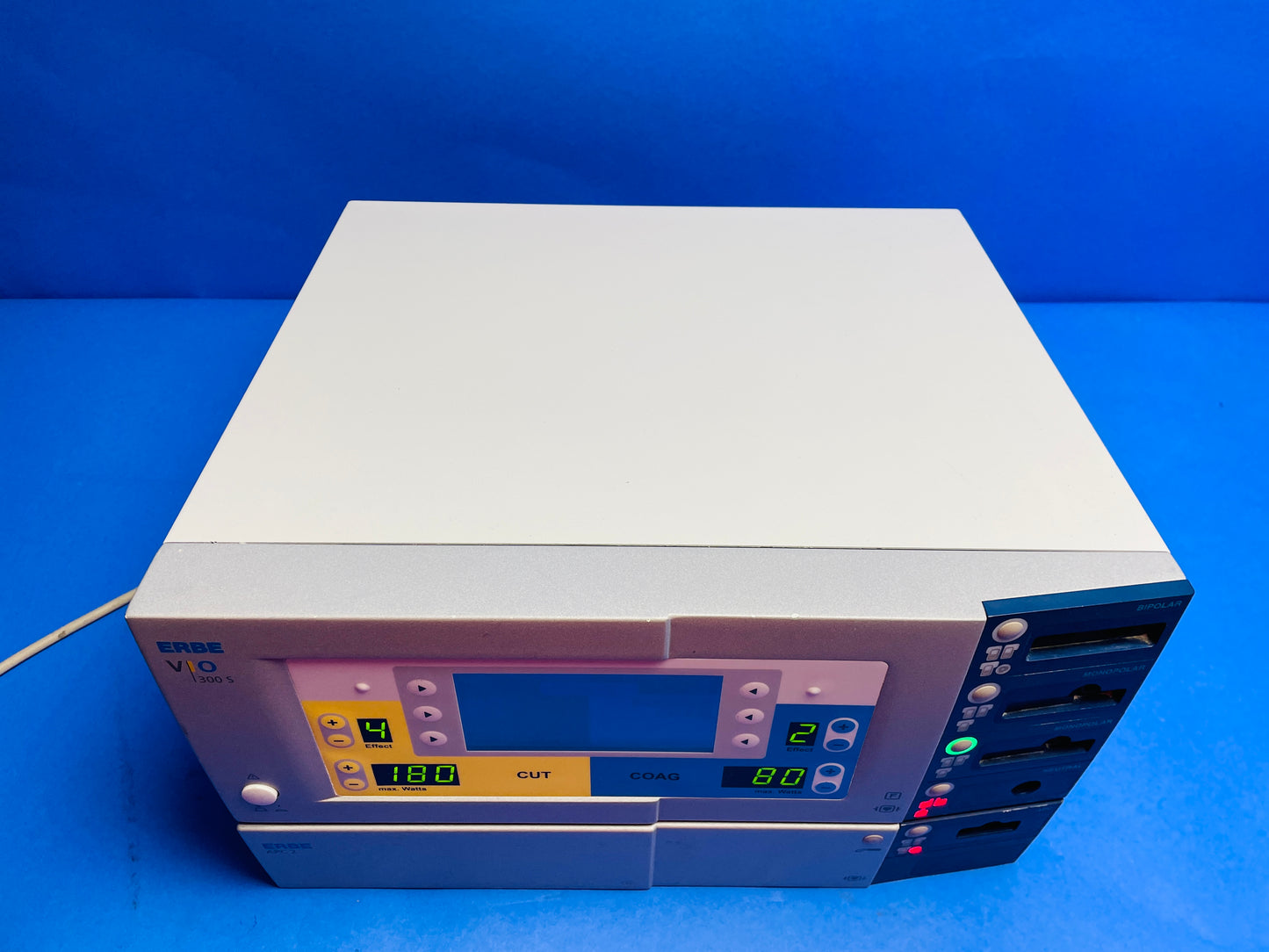

Erbe VIO 300 S Electrosurgical Unit

Erbe VIO 300 S Electrosurgical Unit

The Unit includes the following:

  • APC 2
  • Footswitch

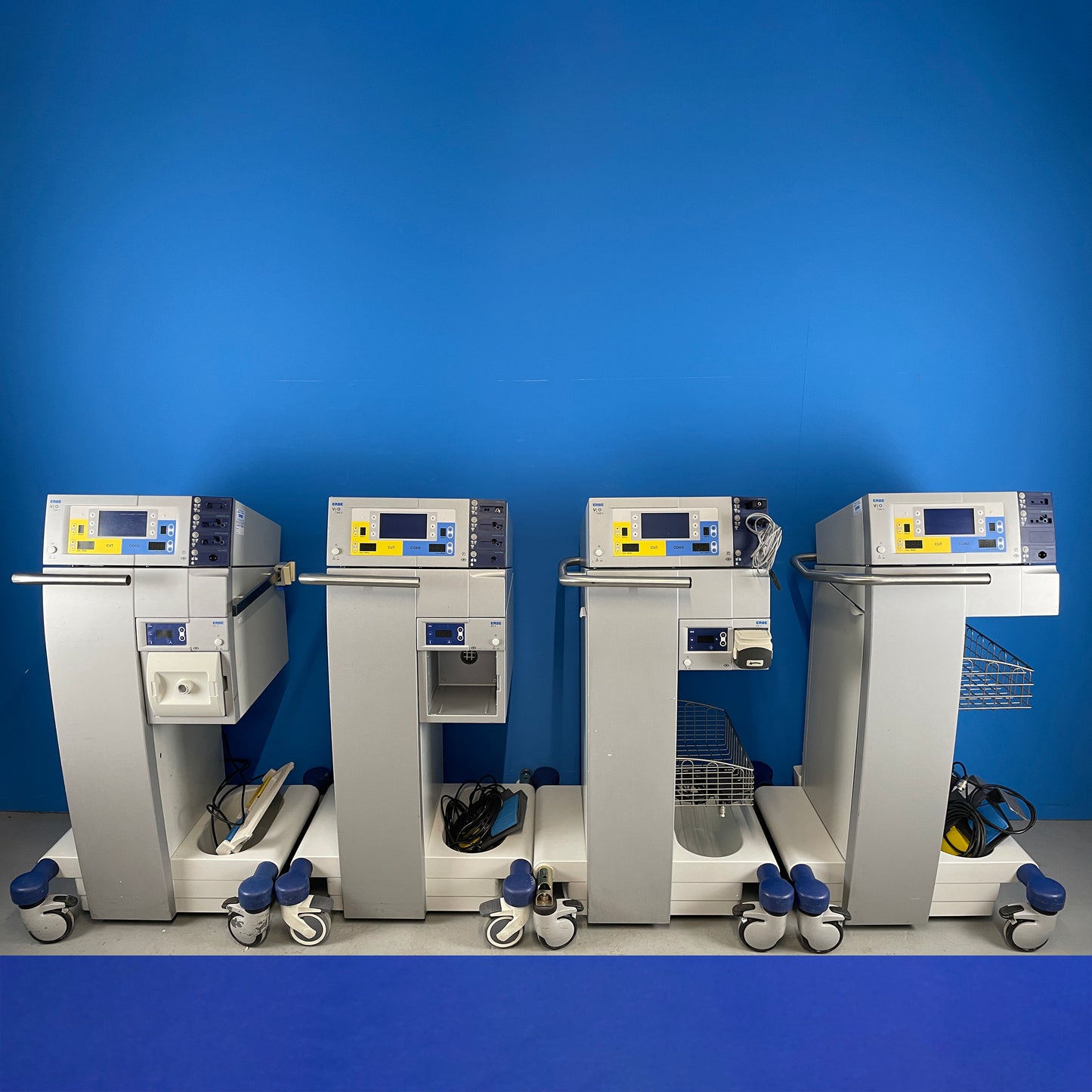

  • Trolley

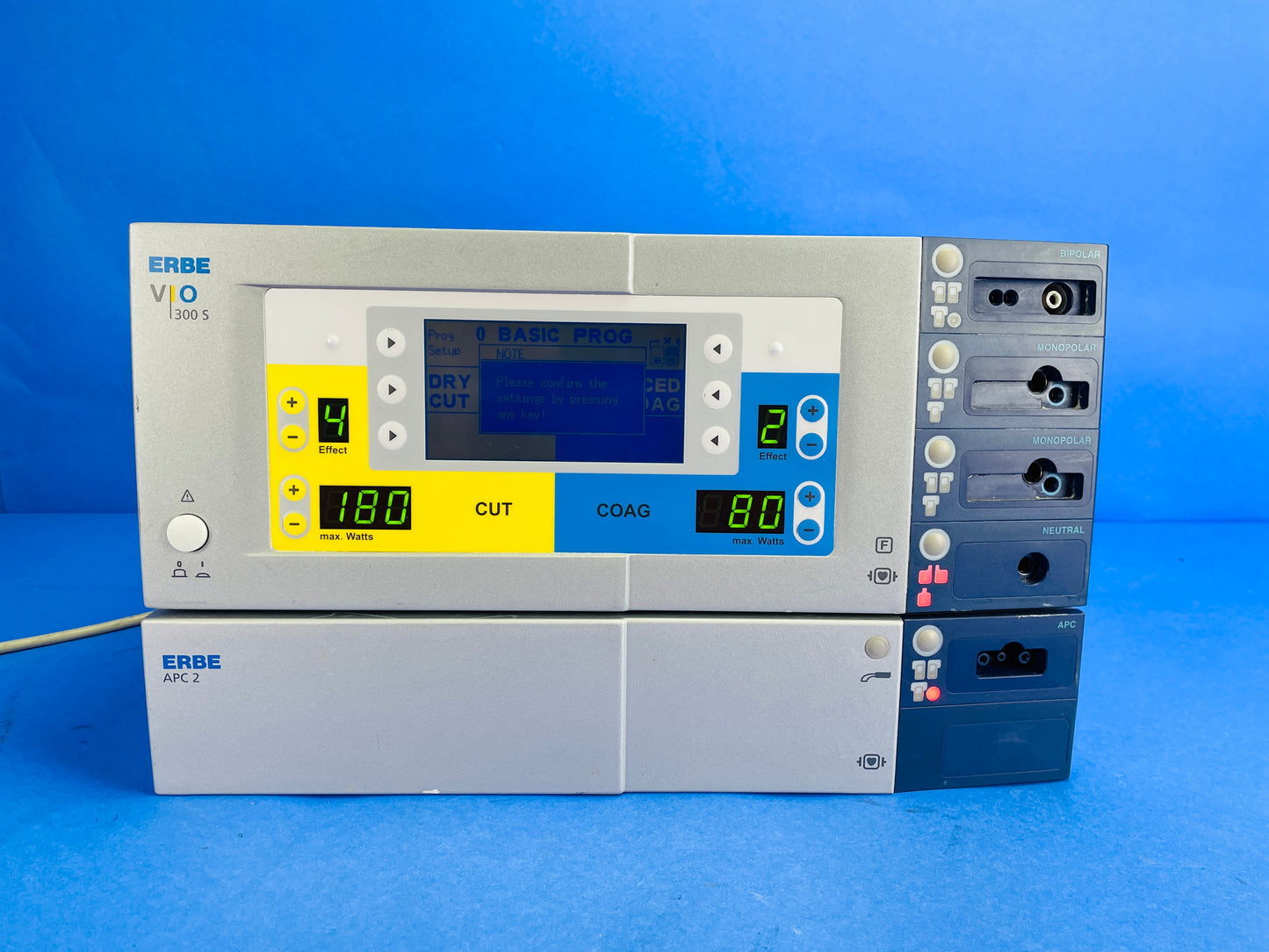

The ERBE VIO 300 S is an electrosurgical unit with enhanced Cut and Coag functions for both monopolar and Bipolar modes. The Erbe VIO 300 S can offer automatic power adjustments for voltage, Arc, and power controls. The VIO 300s model is designed to be the master control unit for the VIO electrosurgical system. The system can be combined with the Erbe APC 2 to extend the abilities of the electrosurgical unit. Display-supported neutral electrode safety system NESSY provides interactive assistance when positioning the return electrode. Assignment of the footswitch: the display makes it possible to assign the footswitch or even just one footswitch pedal to the output socket of choice exact cutting modes needed.

Maximum cut power (VIO 300 S)

(300 watts at 500 Ohm (with PPS, briefly 400 watts)

Frequency (350 kHz)

Compatibilities with:

  • APC2
  • Erbe Jet
  • IES 3 Smoke evacuation
  • Erbecryo
  • Accessories
  • Footswitches
  • Connecting cable

Surgical Procedures:

  • Gynecology
  • Urology
  • General Surgery
  • Gastroenterology
  • Endoscopy
  • pulmonology
  • ENT
  • Orthopedics
  • OMS

The system offers seven different cutting modes and eight Coagulation modes to fit the Automatic output dosage for all regulative technologies.

Cutting  Modes:

HIGH CUT (for cutting inside fatty structures or under water)

AUTO CUT (Standard mode for cutting)

ARGON AUTO CUT (Mode for argon-supported cutting)

PRECISE CUT (very fine cutting with precise power)

ENDO CUT I (Fractionated cutting mode for papillotomy or
other needle / wire applications in endoscopy)

ENDO CUT Q (Endoscopic polypectomy with a snare.
Fractionated cutting and coagulation cycles)

DRY CUT  (Pronounced hemostasis
as a result of voltage control and modulated
forms of current)

BIPOLAR PRECISE CUT (Ideal for microsurgery)

Coagulation and Devitalization Modes:

CLASSIC COAG: (visceral and cardiac surgery)

SWIFT COAG:  (Swift and efficient coagulation with strong hemostatic properties, ideal for exposing critical areas.)

TWIN COAG: (Two instruments with one electrosurgical)

PR SPRAY COAG: ( Coagulation at lower power levels.)

FORCED COAG: ( Achieve hemostasis and devitalize surfaces during endoscopy or surgery with non-contact APC coagulation technology)

SOFT COAG: ( Deep penetrating coagulation without carbonization)

BIPOLAR SOFT COAG: ("Saline is used for coagulation in bipolar resection")

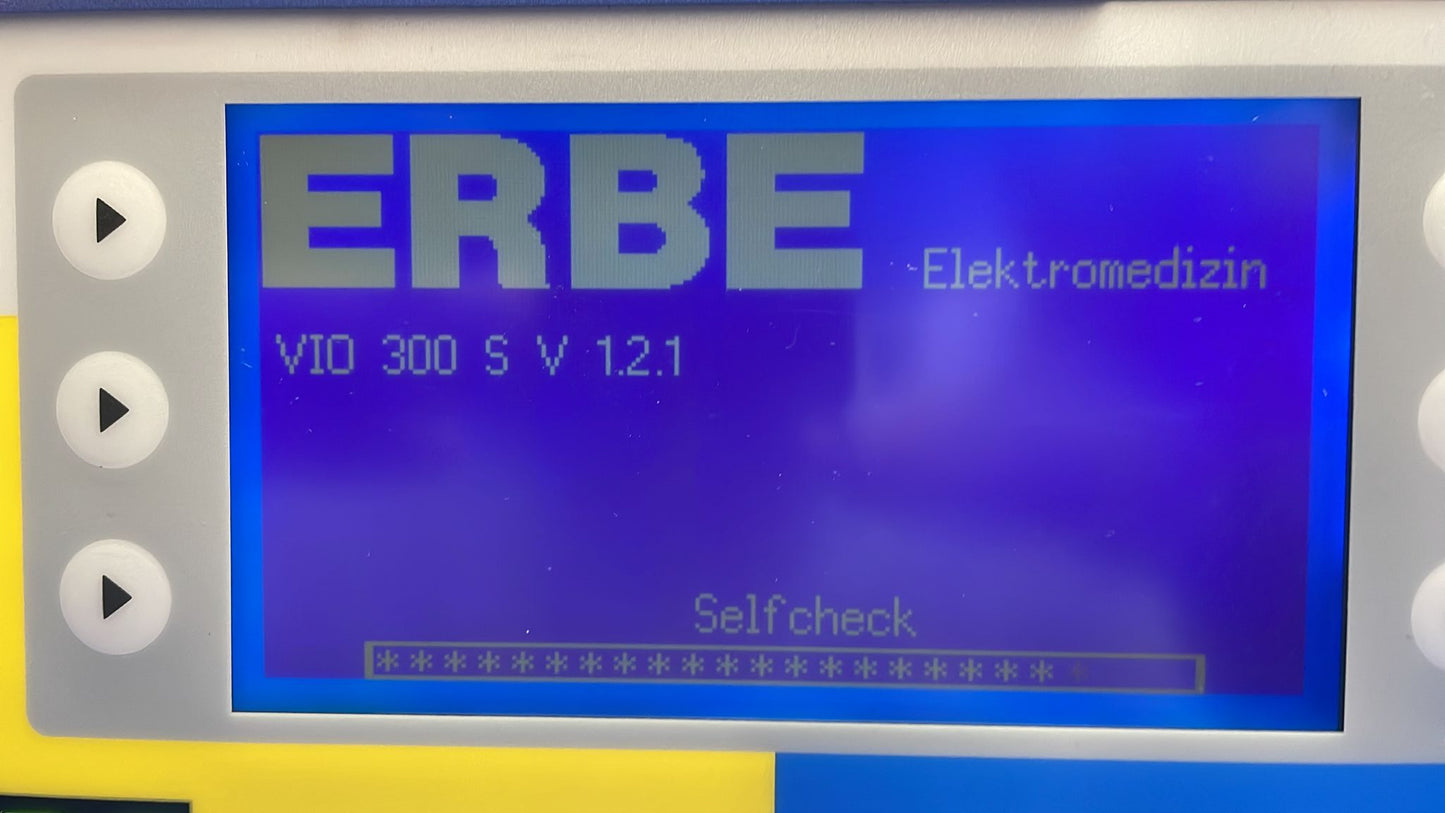

The Erbe VIO 300S Powers on and complete the self Test.

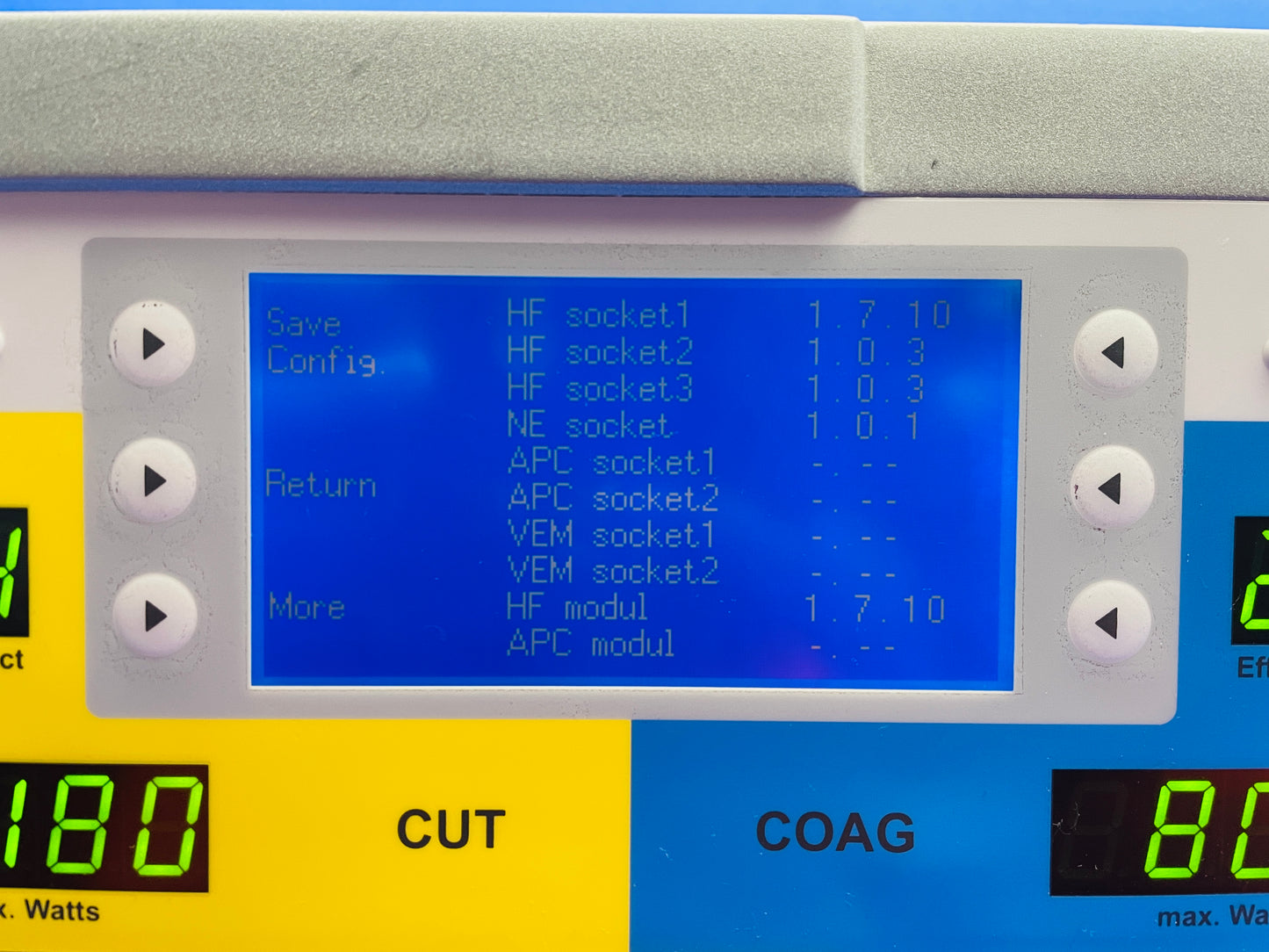

Display panel and controls are in good working order and the patient return plate indicator / alarm are also functional.
The argon plasma coagulation (APC2) unit powers up and has been fully tested.
Patient return plate monitoring circuit is functional
Our team of product experts ensures that each machine is in excellent condition.
Contact us today to learn more and get a personalized estimate for your needs.
Don't hesitate to ask any questions - we are here to help you make the most informed decision for your medical practice.
