• Zeus IE integrates them all into one advanced anaesthesia workstation
  • 20" user interface to set and to monitor ventilation parameters, fresh-gas delivery, and agent dosing. Optional integration of Drager patient monitor module to display also the vital parameters on the same screen
  • Zeus IE can be equipped with the following options which can enhance lung-protective ventilation
  • LEDs for status display of the gas supply from the backup gas cylinders (O2, Air, N2O)
  • Lowest possible consumption of an anesthetic agent and oxygen to save costs per anesthesia procedure
  • Leakage-assistant instantly informs the user of the leakage amount and helps to determine the possible leakage source in a short time without performing a complete leakage test
  • DIVA metering module with Quik Fil filling device or Dräger Fill

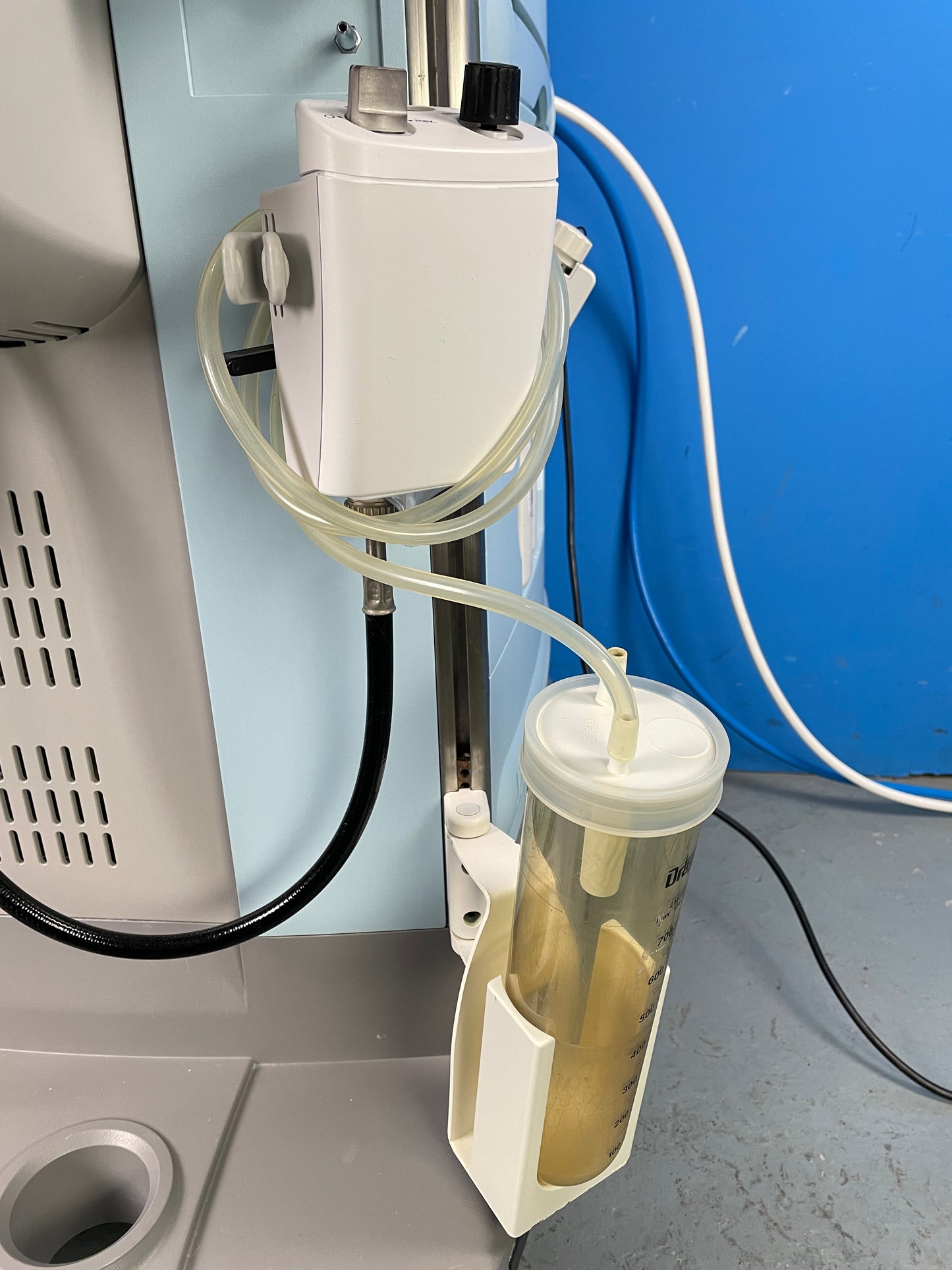

  • Endotracheal suction
  • Zeus IE can be operated in conventional Fresh Gas Mode and in Auto Control mode
  • Connection for oxygen therapy additional oxygen flow meter delivers a set flow of pure oxygen,
  • Zeus IE can, hence, improve clinical outcome, workflow efficiency, and cost savings throughout the anesthesia process.
  • Drager Zeus Immediately change over to cylinder supply in the event of a central gas supply failure:
  • Drager Zeus Multi-step maneouvre applies incremental and decremental pressures based on settings by clinicians
1 13

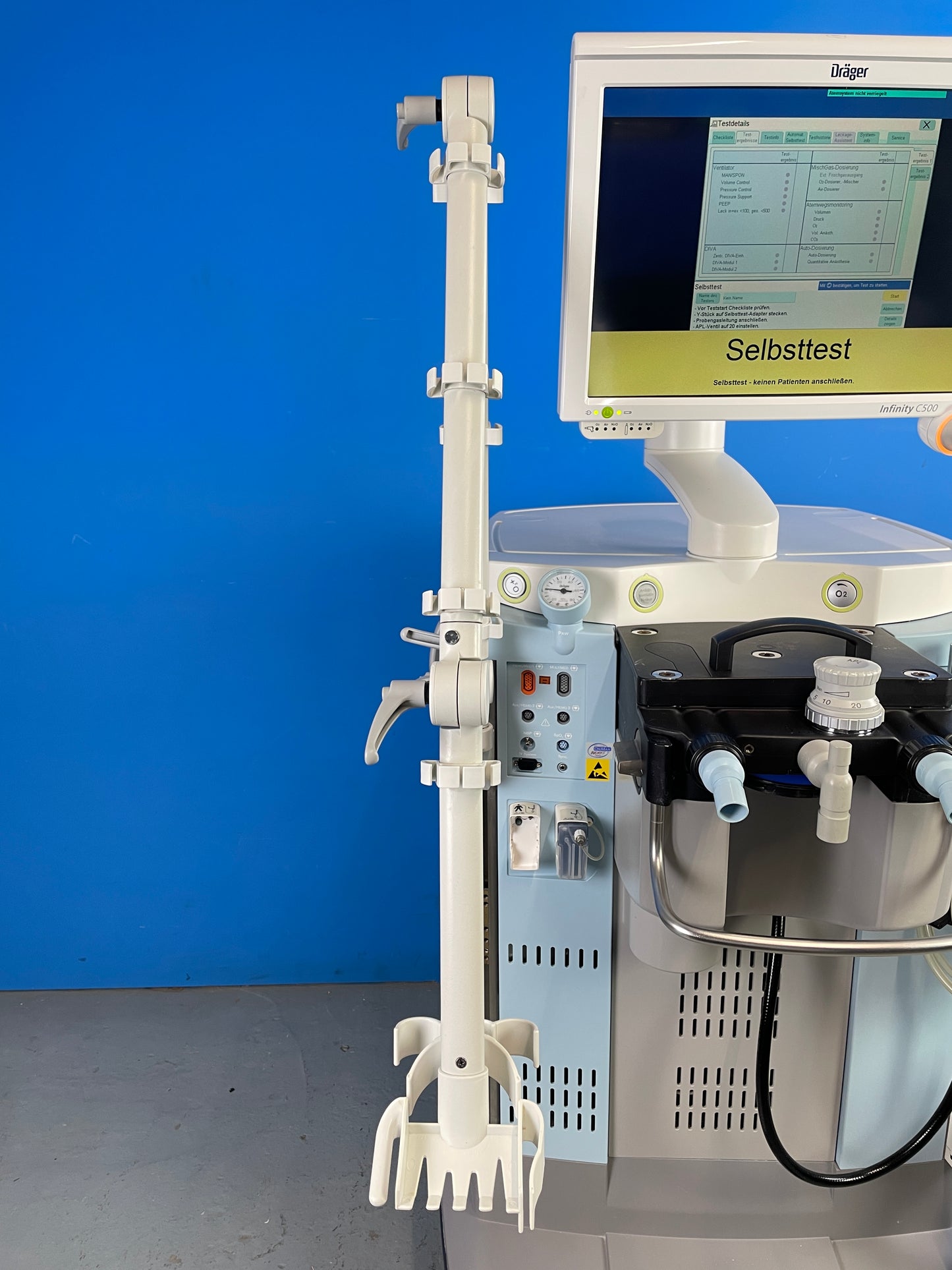

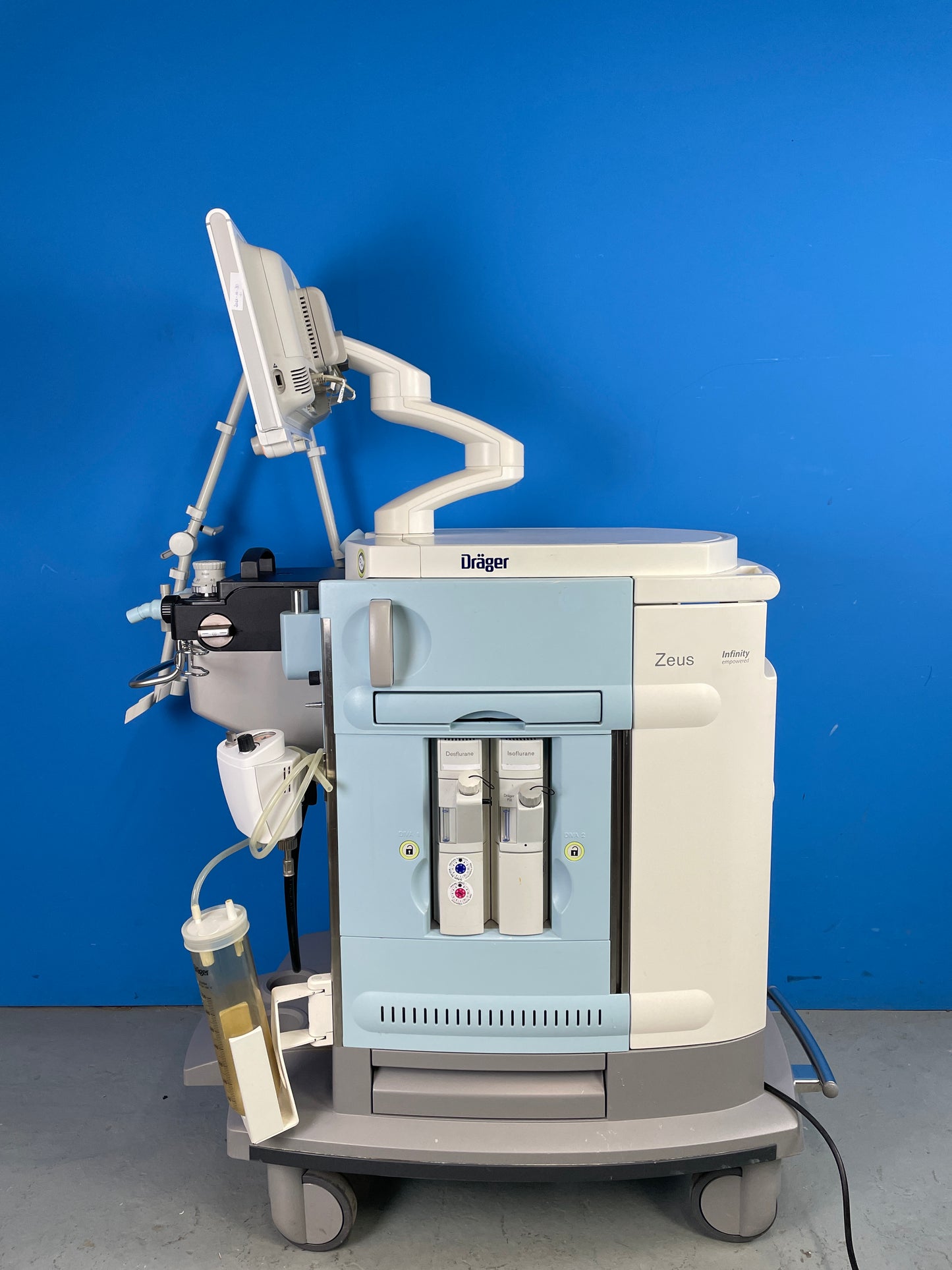

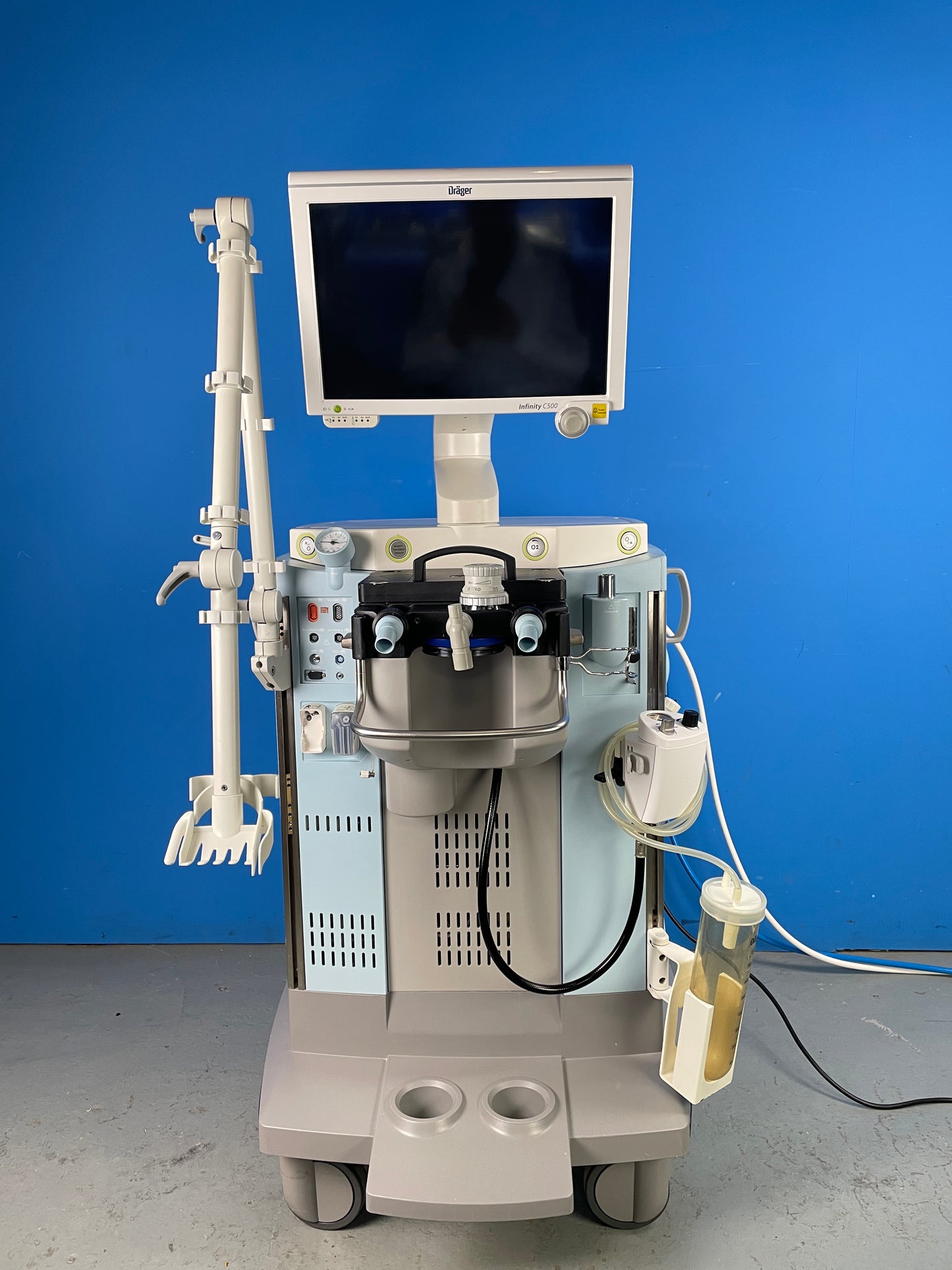

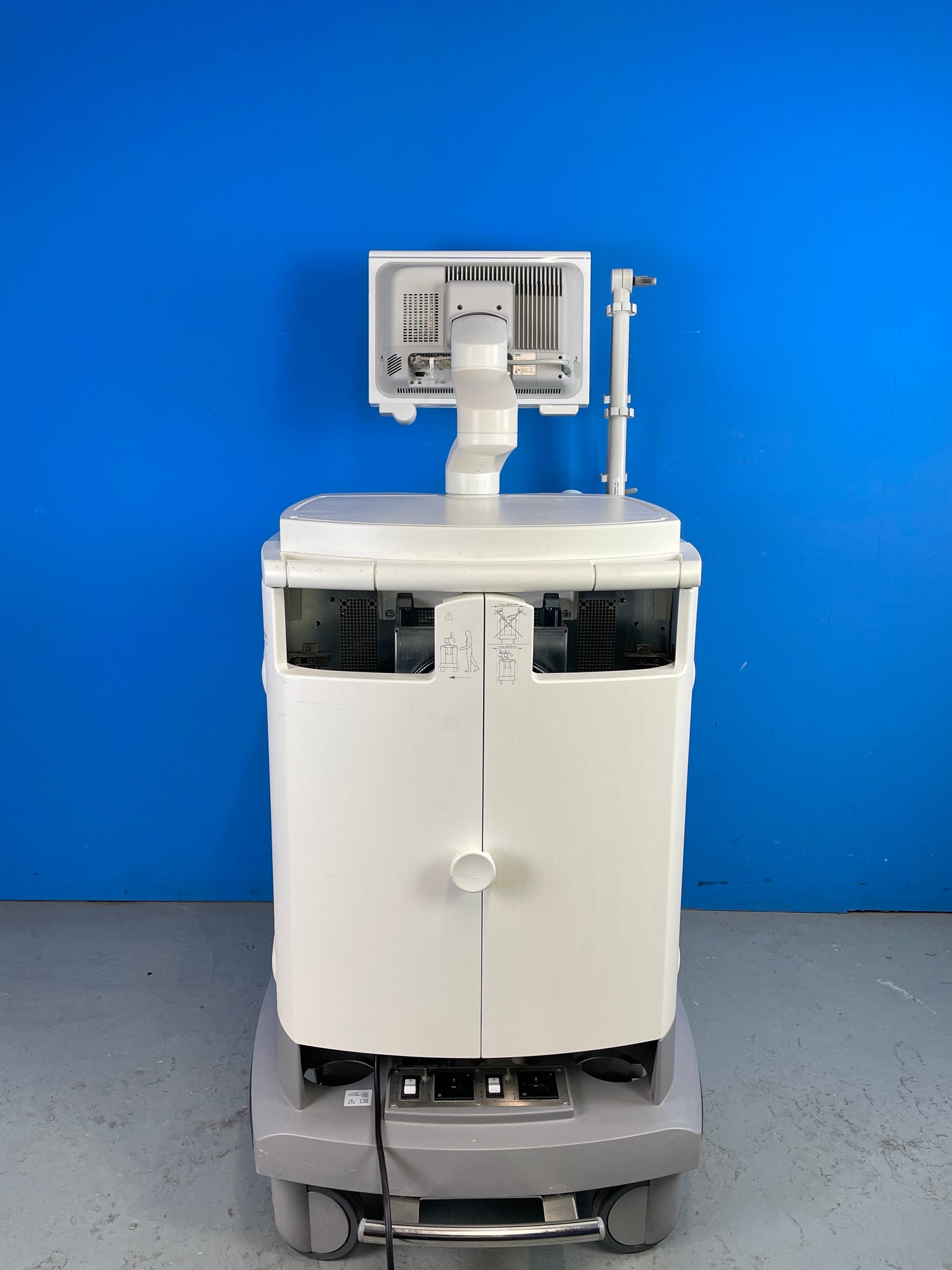

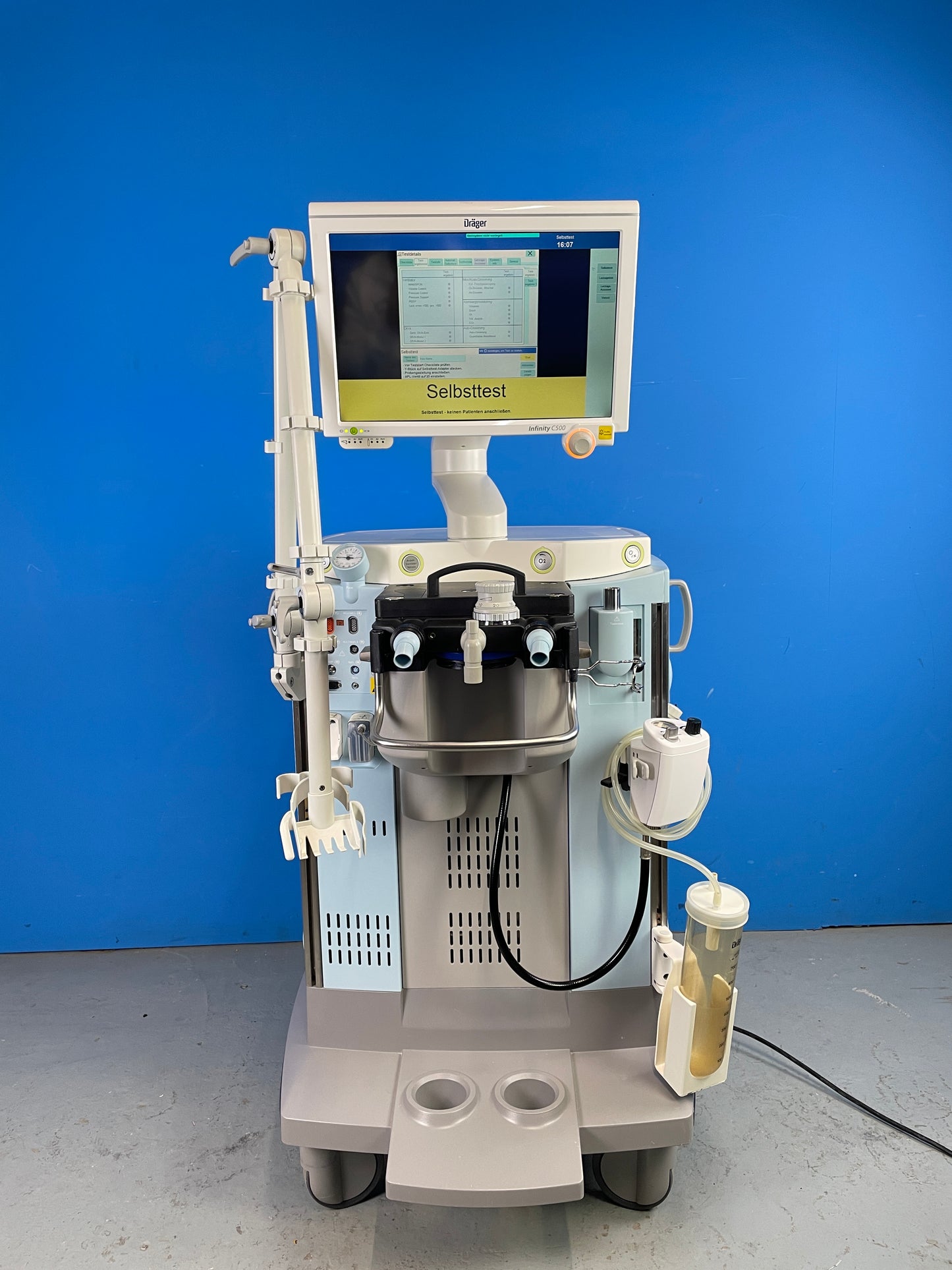

Drager Zeus Infinity Anesthesia Machine

Drager Zeus Infinity Anesthesia Machine

The Machine includes the following:

  • Dräger Isoflurane DIVA Vaporiser
  • Dräger Sevoflurane DIVA Vaporiser
  • CO2 Absorber with disposable canister

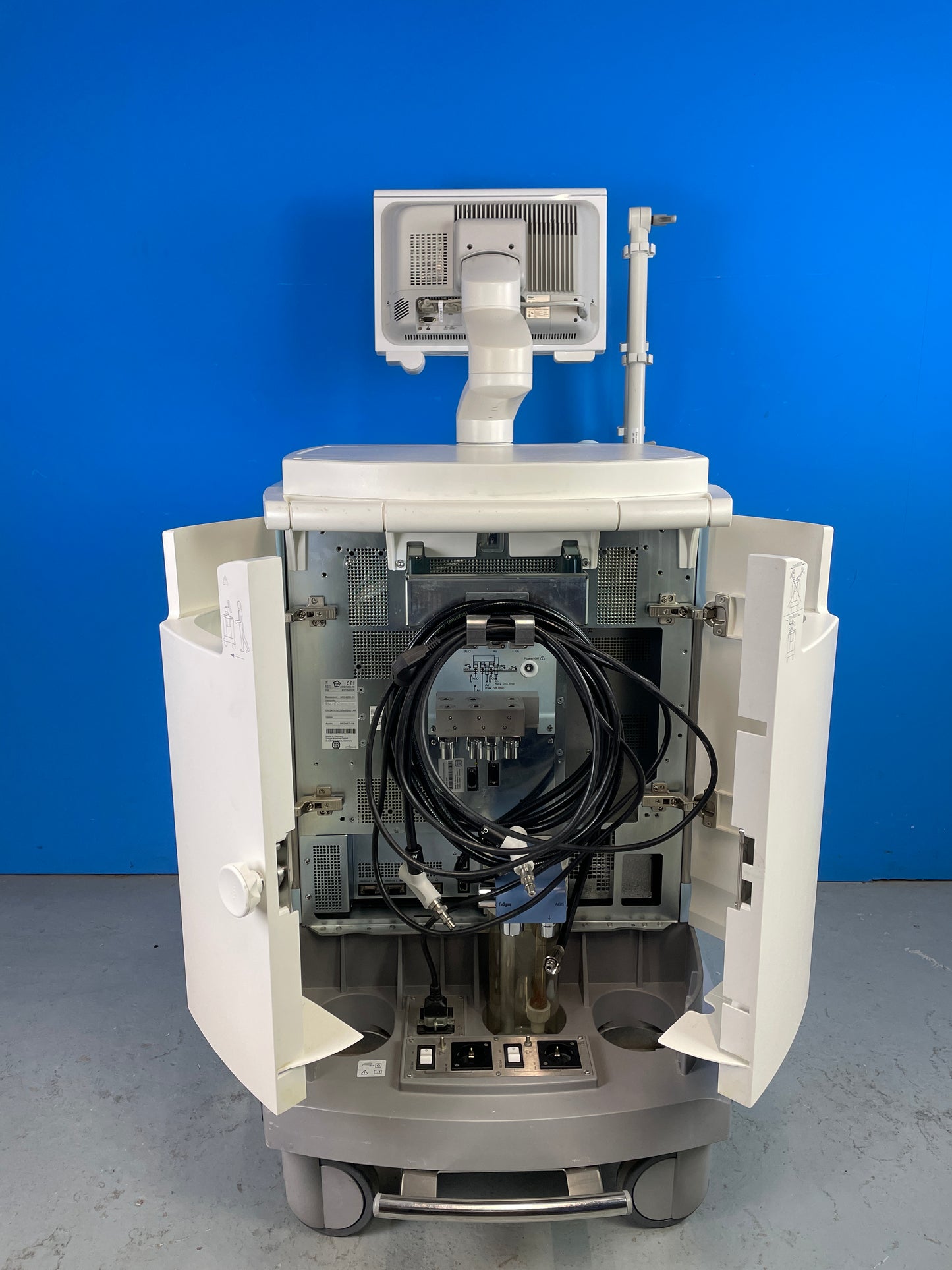

  • Hoses (Air, Nitrous, Oxygen, AGSS)
  • Central Vacuum regulator and hose

The Drager Zeus Infinity Empowered Machine offers

  • Cost-saving gas delivery and Quantitative Anaesthesia
  • Blower ventilation technology
  • Lung-protective ventilation applications
  • Optimised drug administration
  • Efficient workplace design

Ventilation Modes

  • Manual ventilation (with availability of CPAP)
  • Spontaneous ventilation (with availability of CPAP)
  • VCV (Volume Control ventilator) with VC Autoflow
  • PCV/BiPAP Pressure Control ventilation
  • SIMV Synchronized volume-controlled ventilation.
  • SPCV Synchronized pressure-controlled ventilation
  • CPAP pressure support
  • SVC Smart ventilation control

Smart Ventilation Control (SVC)

  • Ventilation target set by clinician e.g. controlled, supported spontaneous breathing, or spontaneous breathing
  • Automated and smooth transition from controlled ventilation to spontaneous breathing during anaesthesia course
  • Reduction of user interactions by automated adaptation of ventilator support until the patient is ready for extubation
  • Compliant with recommendations of respective healthcare societies how to protect lungs of surgical patients (e.g. tidal volume is set in ml per kg of ideal body weight)
  • Setting targeted etCO2 range to avoid hypocapnia and hypercapnia
  • Quick and easy start with ventilation by just setting patient height and ventilation target

Monitoring

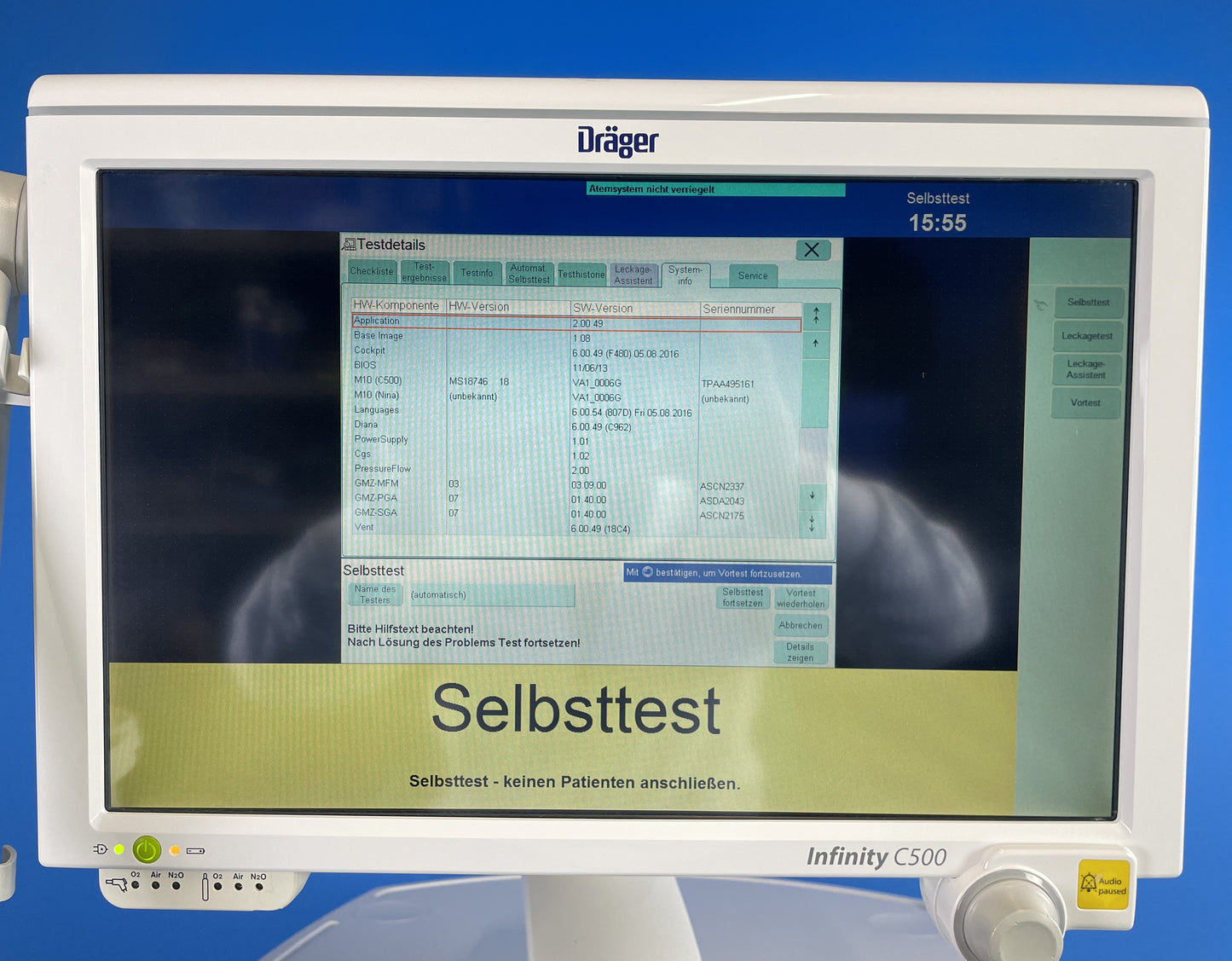

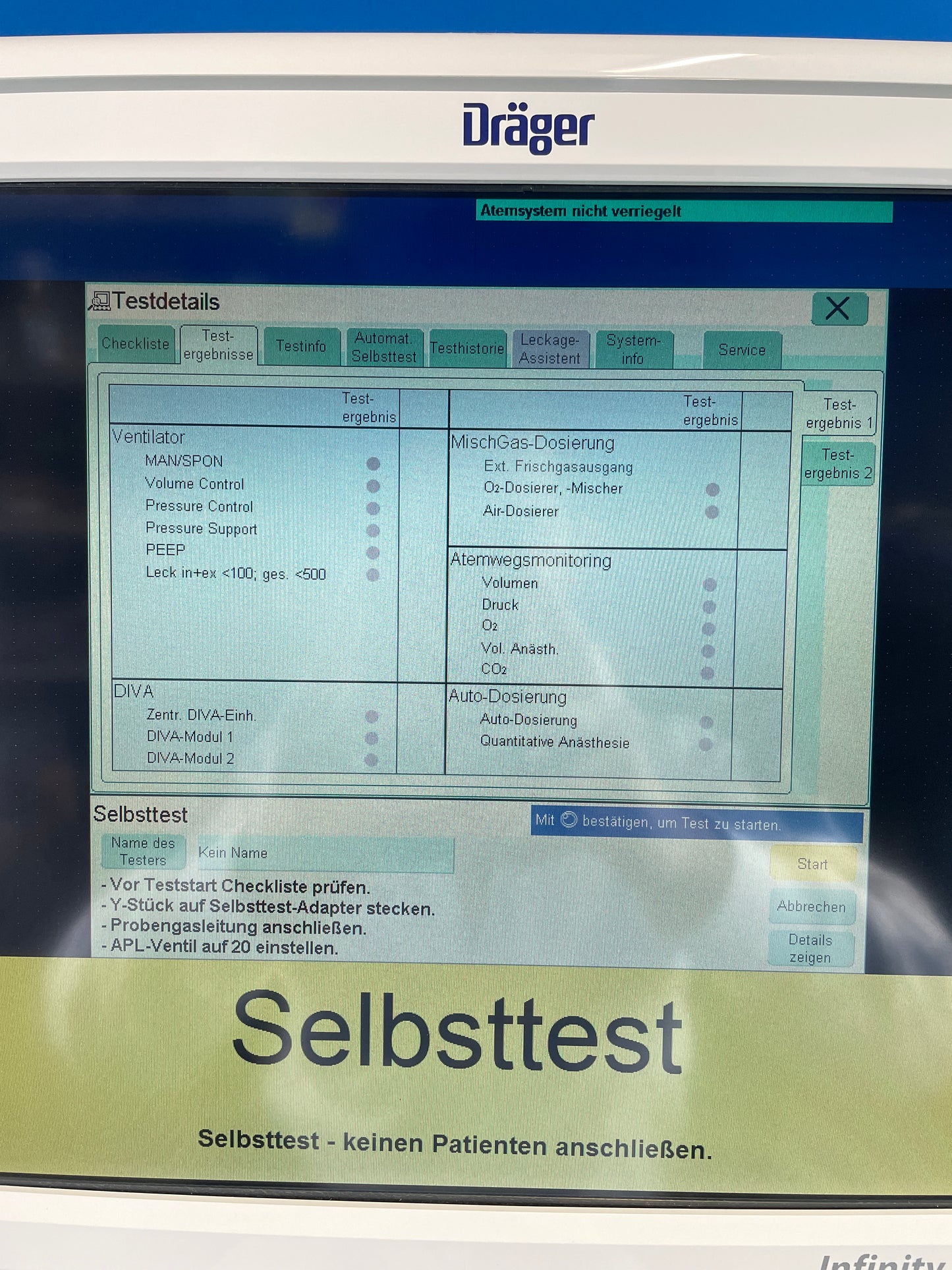

Touch screen 20" color; Display of up to 8 waveforms with mini trends; intelligent alarm management; central alarm display; comprehensive browser-based help system; monitoring of inspiratory and expiratory concentrations of O2, N2O, CO2 as well as volatile agents; age- and altitude-corrected xMAC value; minute volume, tidal volume, breathing frequency; Peak, Plateau, Mean and PEEP breathing pressures; compliance and resistance (with trend); MVxCO2-trend

The Anaesthesia machine was tested with medical air and test lung and complete ventilation cycles were delivered.
Our team of Qualified Biomedical Engineers ensure that the machine is in excellent working condition.
Contact us today to learn more and get a personalised estimate for your requirements.
Additional accessories and attachments can be provided upon request.
We are here to help you make the most informed decision for your medical equipment purchases in your budget.
