• Drager Primus Anaesthesia machine was tested with medical air and test lung and complete ventilation cycles were delivered.
  • Primus uses the familiar user interface and operating philosophy common to all current Dräger medical devices. This means that in spite of its impressive level of sophistication, your staff will spend a minimum amount of time learning how to use the Primus

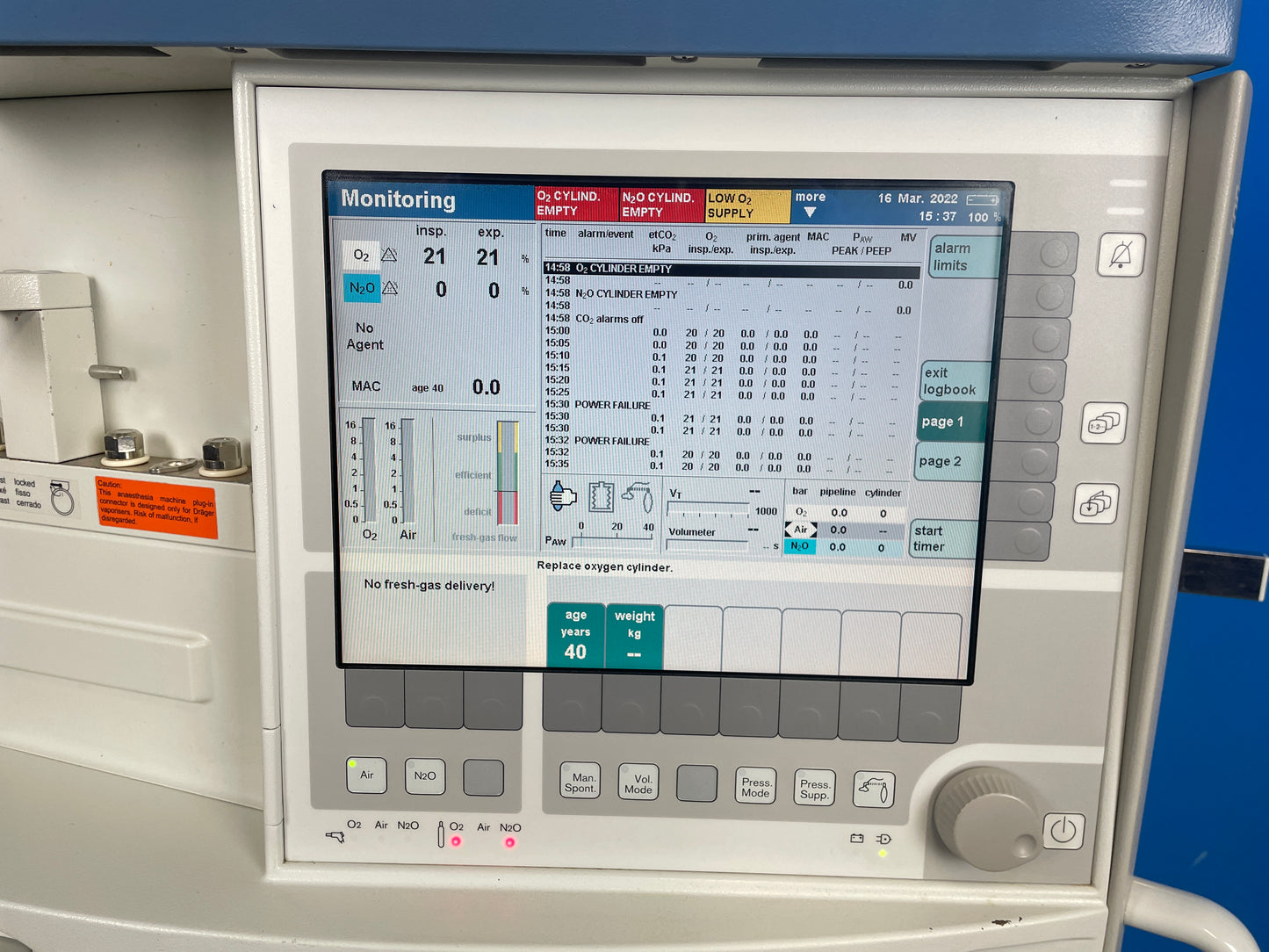

  • Drager Primus monitor pulmonary function and ventilation parameters on a large, user-configurable 12,1“TFT color display.

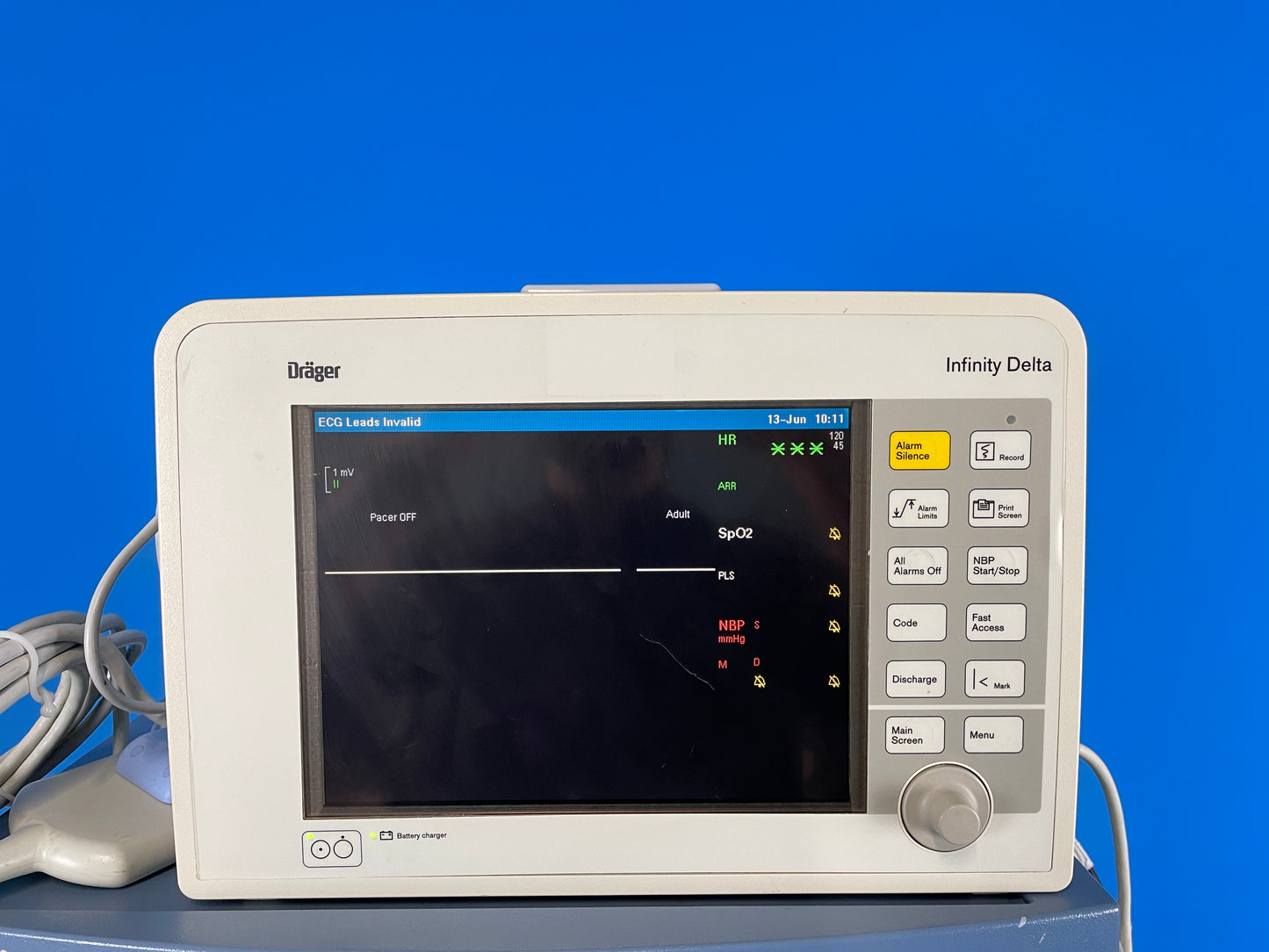

  • Drager Infinity Delta Anesthesia monitor Shows the all parameters

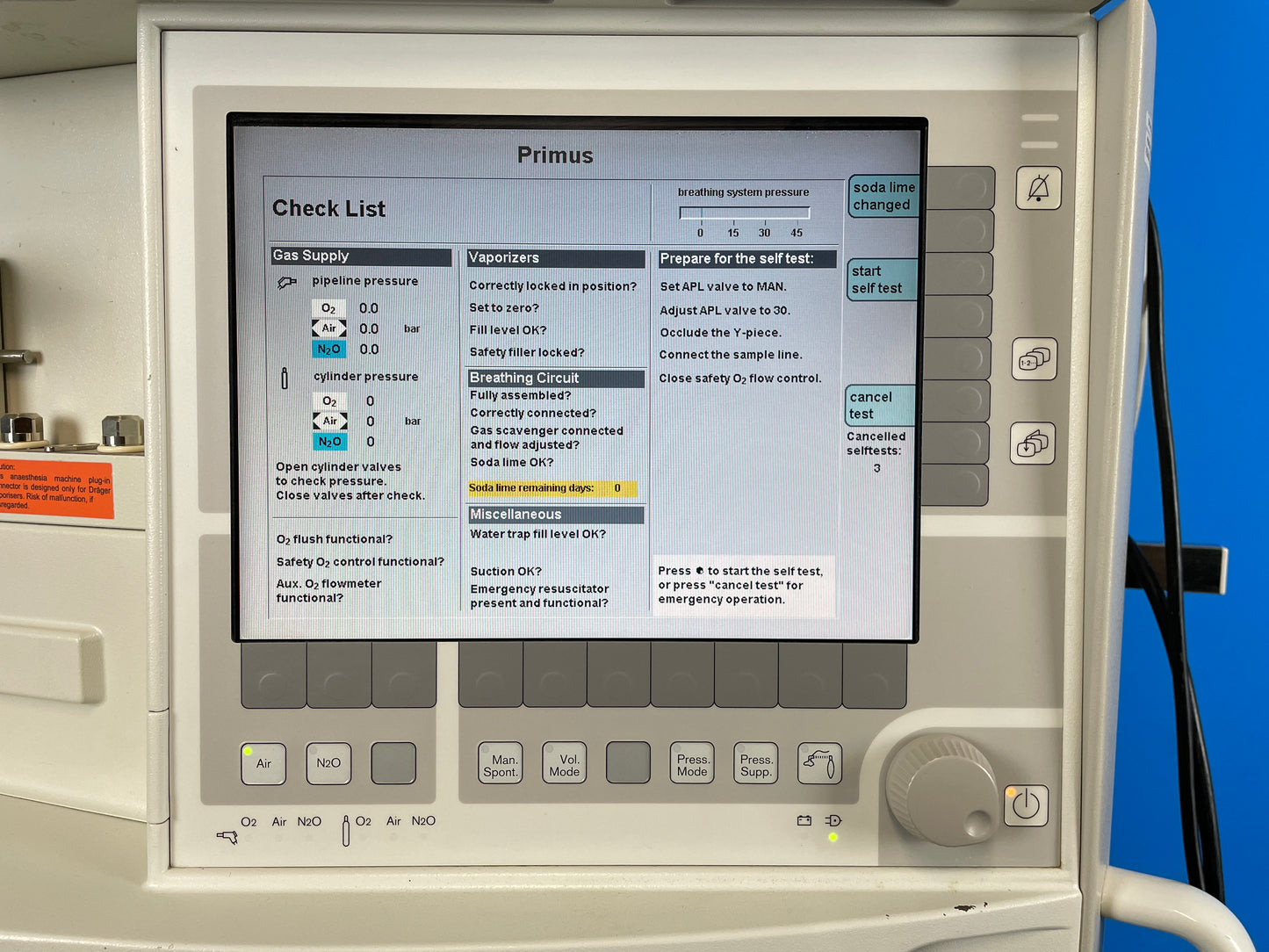

  • All the settings are entered on the screen using the appropriate keys and the rotary knob.
  • A full range of volume and pressure oriented modes provides the various options for every clinical situation.

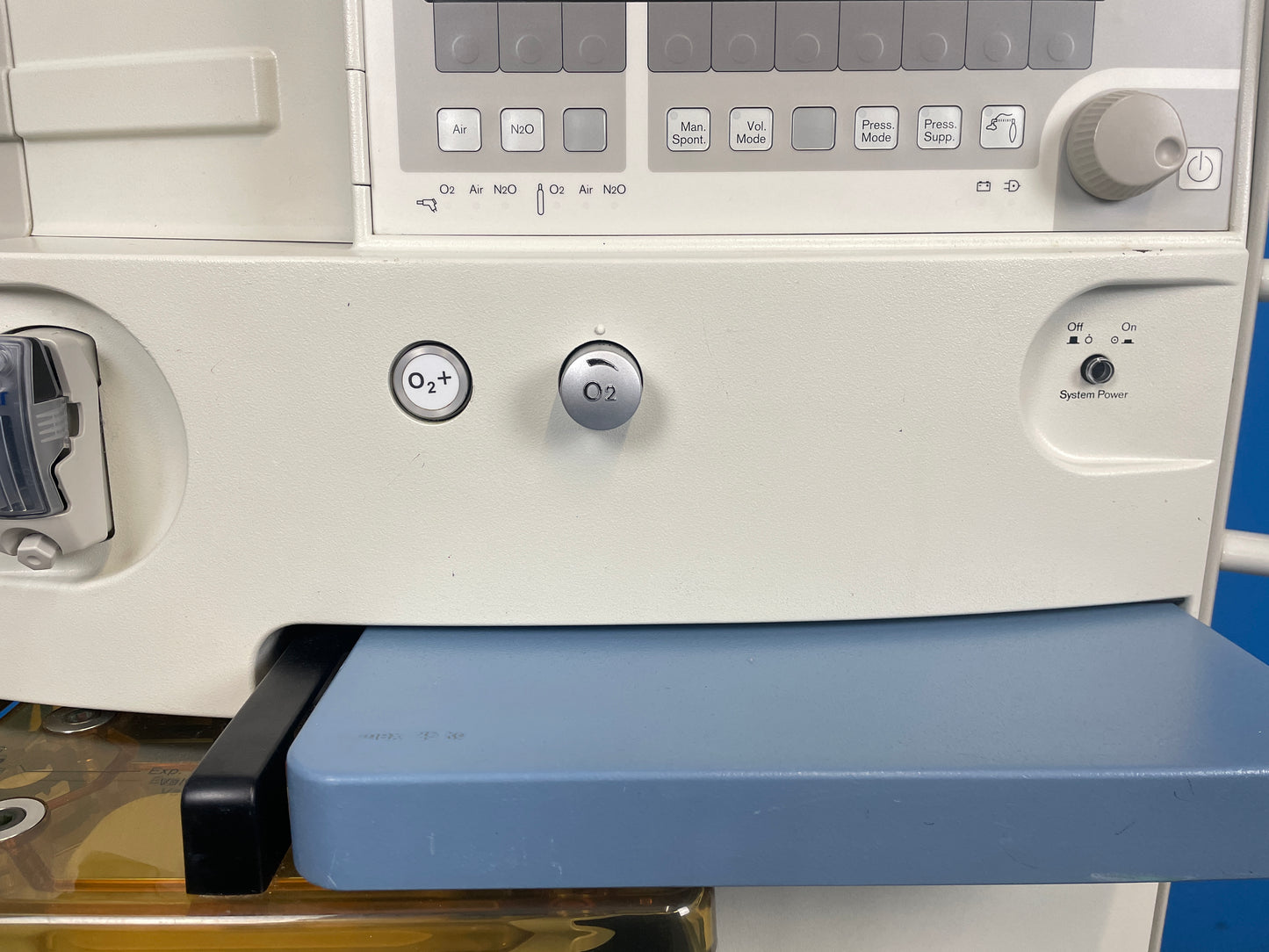

  • Auxiliary oxygen can be used in any ventilation mode, in standby mode, or even if the machine is switched off, as long as the central O2 gas supply is connected.

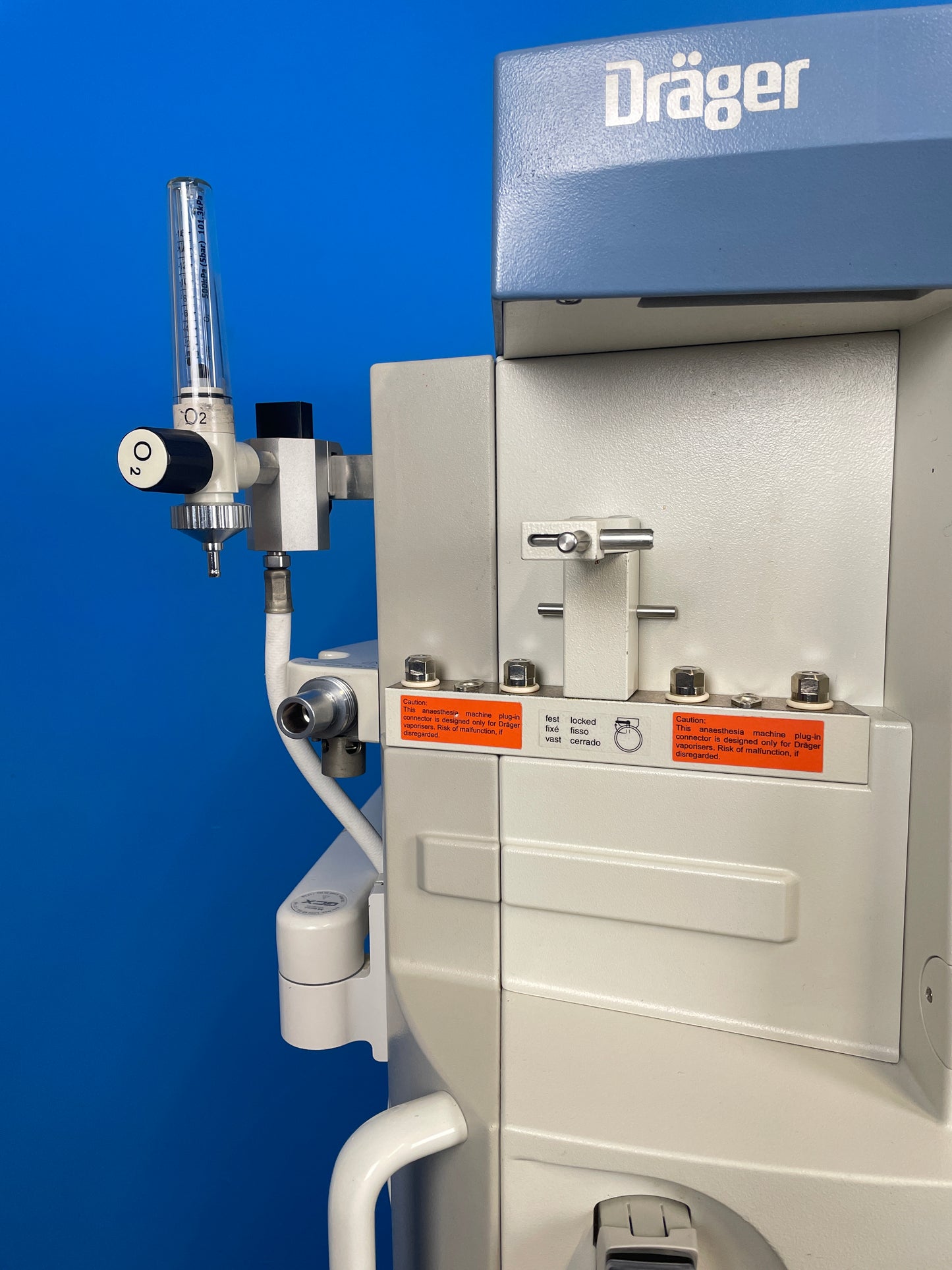

  • Vaporizers are mounted in a level position and seated securely on the mounts. Connect each breathing hose to the inspiratory port and expiratory port, optionally with microbial filter

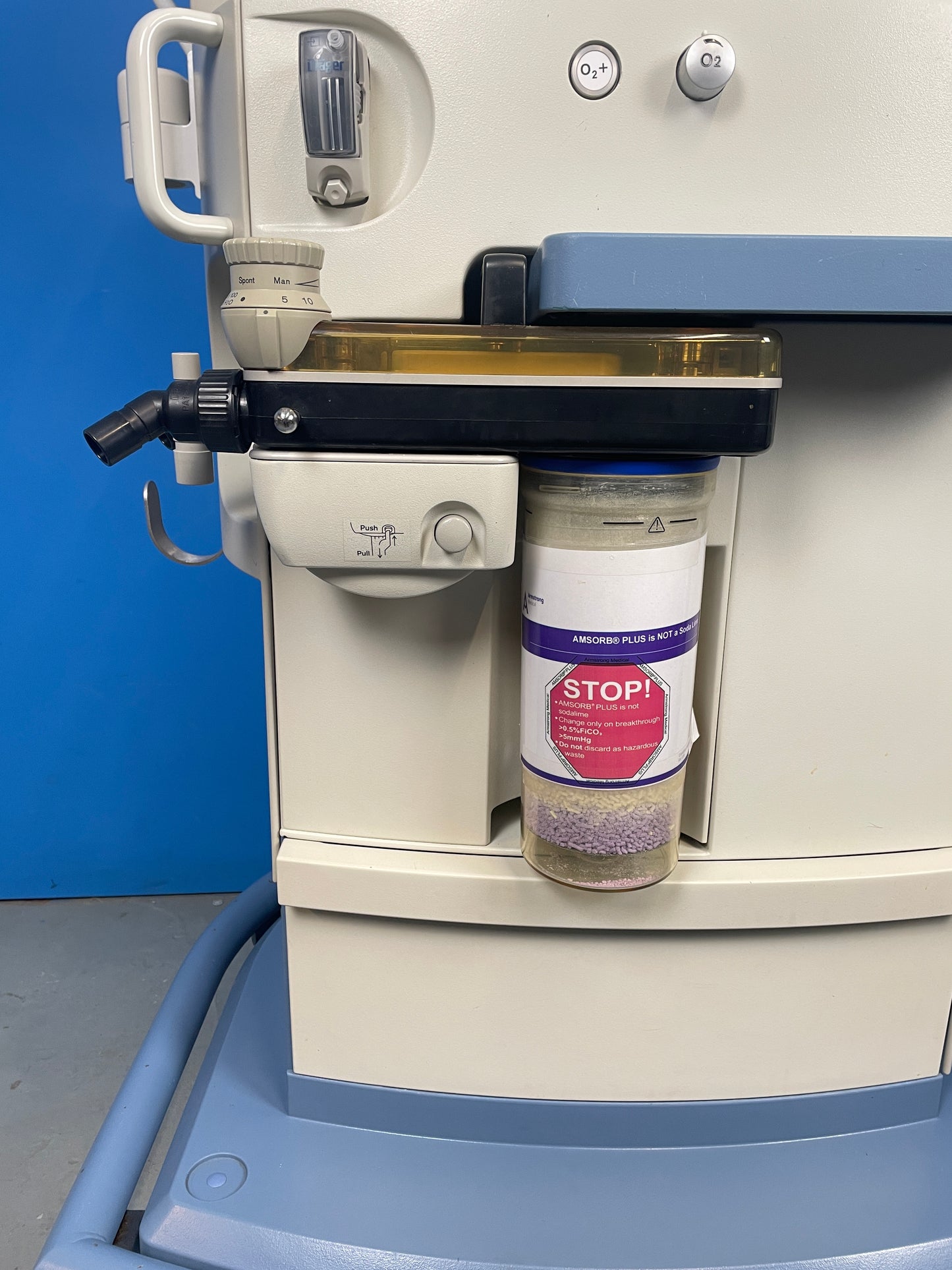

  • Soda lime is essential for CO2 absorption in inhalation anaesthesia machines with rebreathing systems. The soda lime must be exchanged
  • The Primus has two auxiliary outlets on the rear of the machine. Each outlet is rated 4 amps and protected by safety fuses.
  • fully automatic self-check, open architecture, standard user interfaces and flexible monitoring options were designed to help reduce costs, save time and allow caregivers to focus on their primary task – the patient
  • Primus has a built-in uninterruptible power supply UPS which maintains the power supply for at least 30 minutes (up to 90 minutes, depending on the ventilation parameters) in the event of a mains power failure, provided that the battery is charged.
1 12

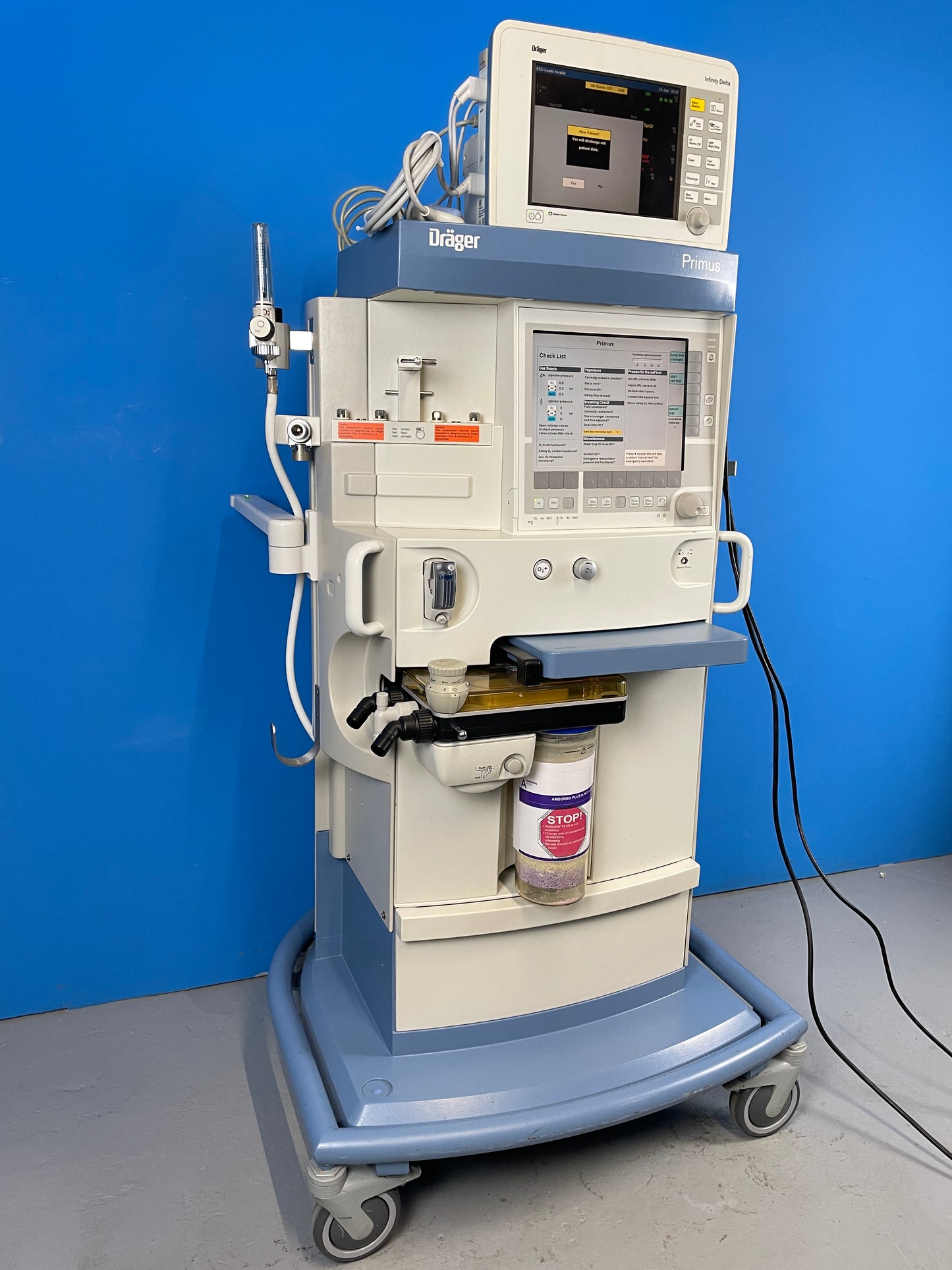

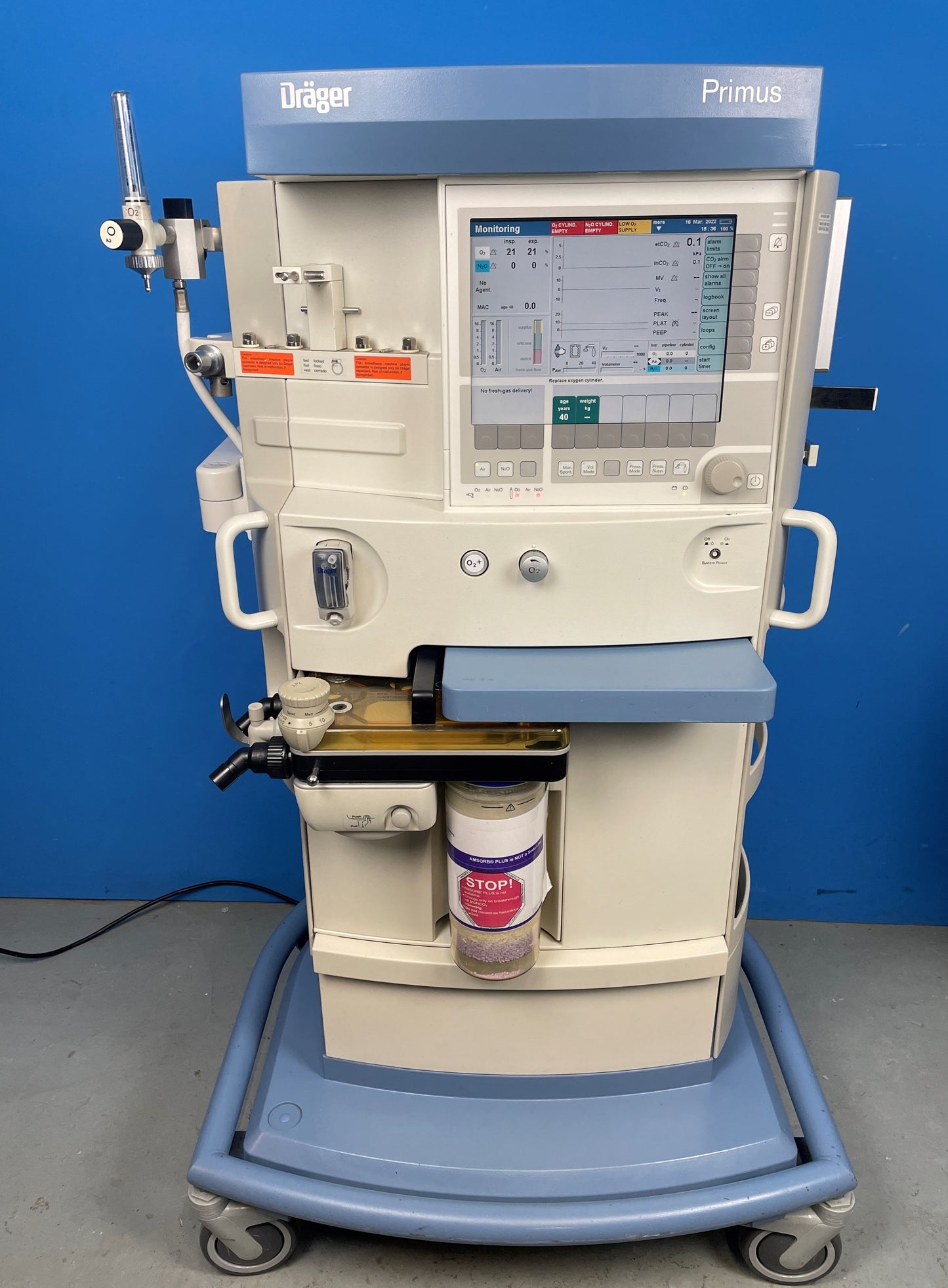

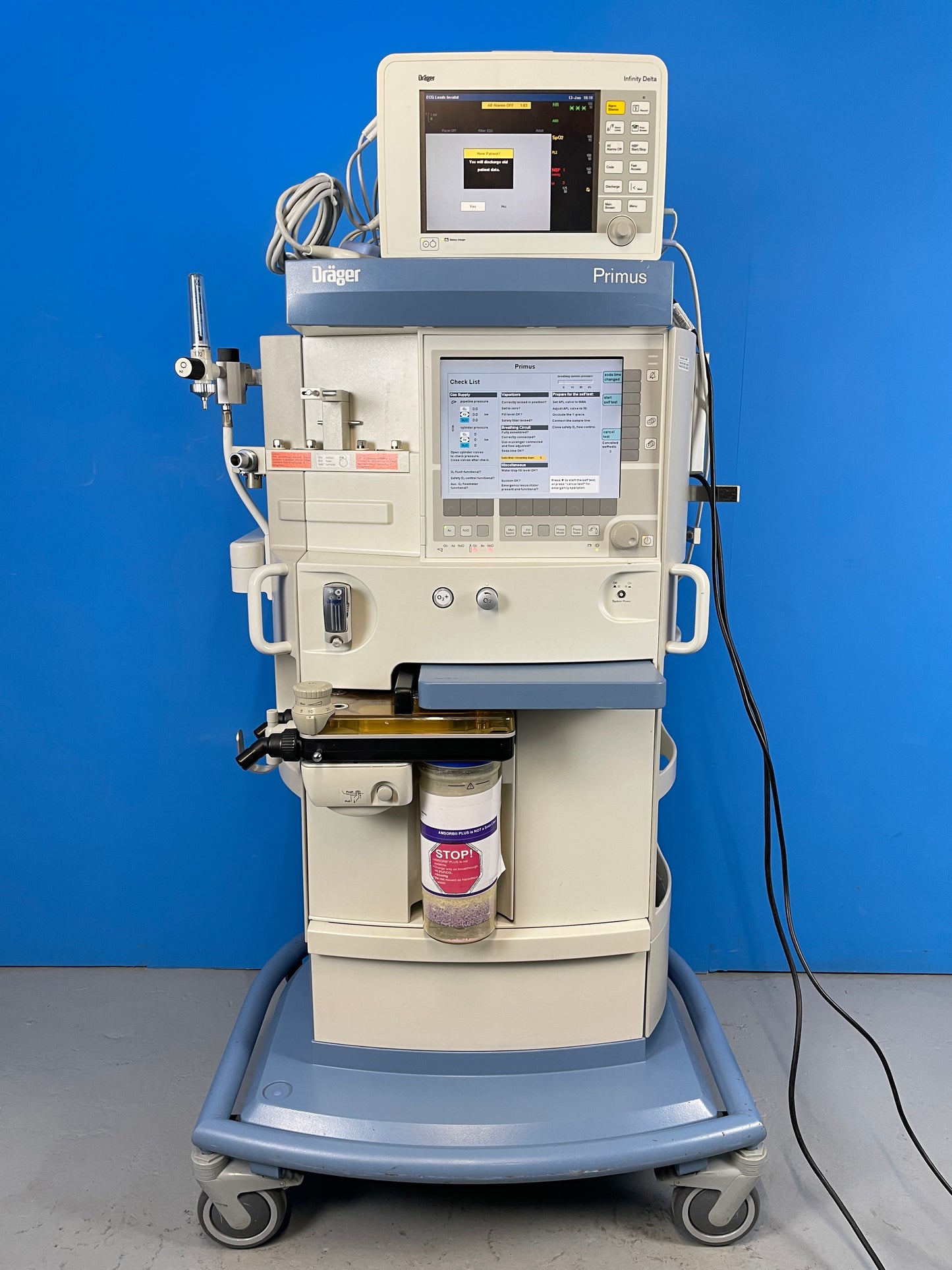

Drager Primus Anesthesia Machine with Drager Infinity Delta Monitor

Drager Primus Anesthesia Machine with Drager Infinity Delta Monitor

The Machine includes the following:

  • Drager Infinity Delta Monitor
  • CO2 Absorber with Disposable canister
  • Hoses (Air, Nitrous, Oxygen, AGSS)
  • Central Vacuum regulator and hose

The Drager Primus Machine offers

ICU standard ventilation

E-Vent plus high-speed electronic piston ventilator, the Primus delivers just that – peak flow comparable to ICU ventilators while avoiding the need for drive gas. A full range of volume and pressure oriented modes provides the various options for every clinical situation

Ventilation Modes

  • Manual ventilation
  • Spontaneous ventilation
  • IPPV Volume Mode  ventilation
  • PCV Pressure Mode ventilation
  • SIMV Synchronized volume-controlled ventilation
  • SPCV Synchronized pressure-controlled ventilation

Monitoring

Inspiratory and expiratory concentration of O2, N2O, CO2 as well as Anaesthetic agents (Halothane, Isoflurane, Sevoflurane, Desflurane); Minute volume (MV) and Tidal volume (VT); Breathing frequency; Peak pressure, plateau pressure, mean pressure, PEEP; Patient compliance CPAT; Option: Functional oxygen saturation (SpO2)

The Anaesthesia machine was tested with medical air and test lung and complete ventilation cycles were delivered.
Our team of Qualified Biomedical Engineers ensure that the machine is in excellent working condition.
Contact us today to learn more and get a personalised estimate for your requirements.
Additional accessories and attachments can be provided upon request.
We are here to help you make the most informed decision for your medical equipment purchases in your budget.
