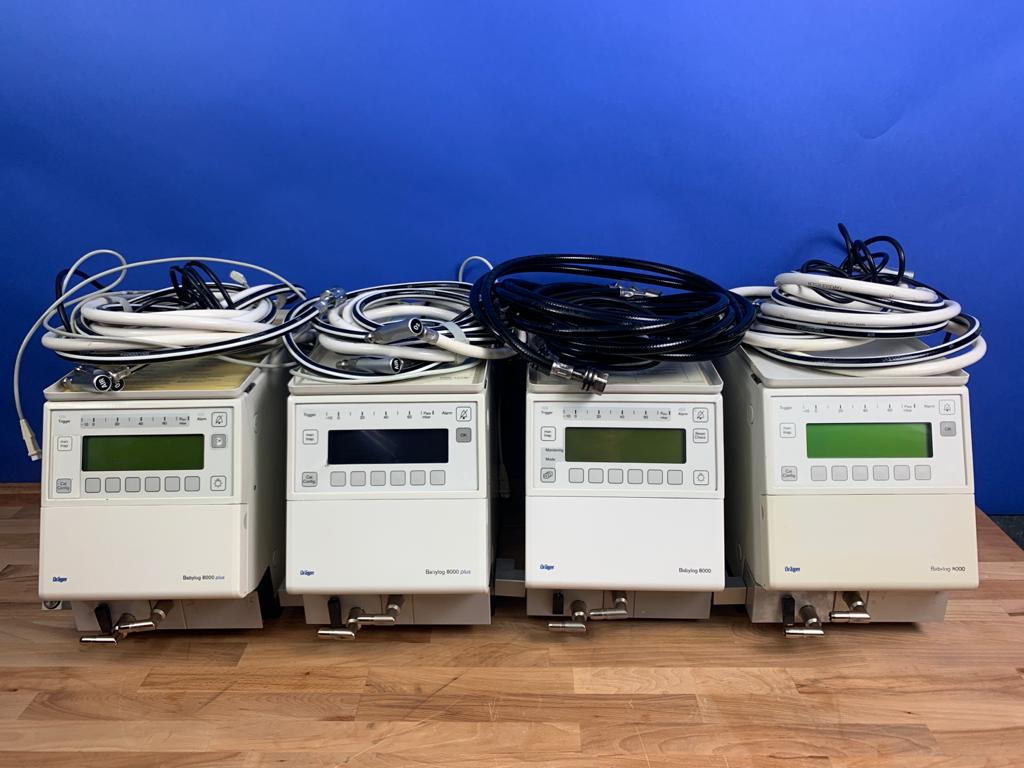

• Babylog 8000 Plus with Accessories and exhalation valves
  • High Frequency Ventilation: CPAP+HFV, IMV+HFV - Frequency: 5 to 20 Hz

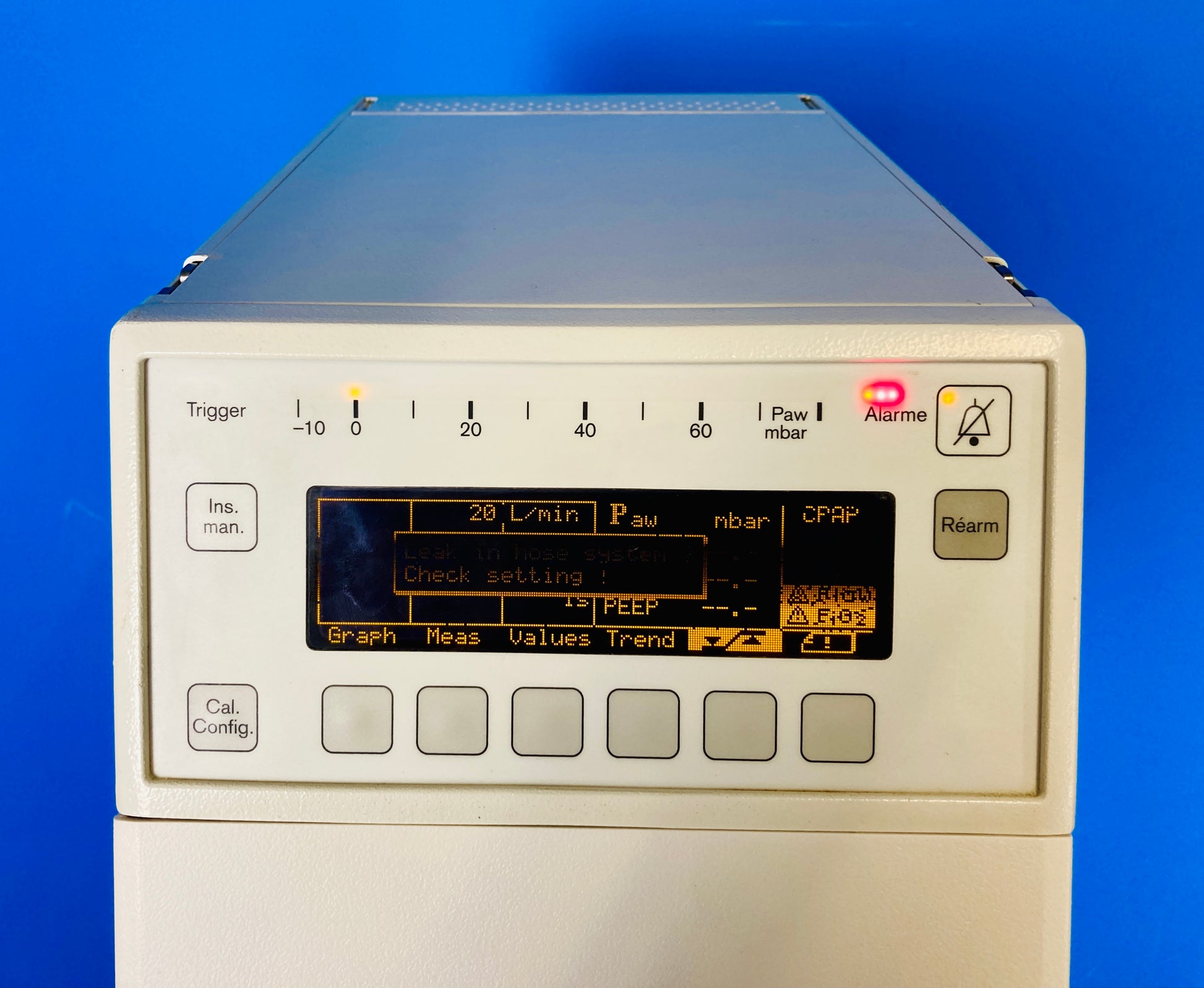

  • The status window displays the current mode of ventilation and other status information.
  • The trigger volume is the volume that a patient must inspire in order to trigger a ventilator breath. It is set in the ventilation modes menu or in the extensions menu.

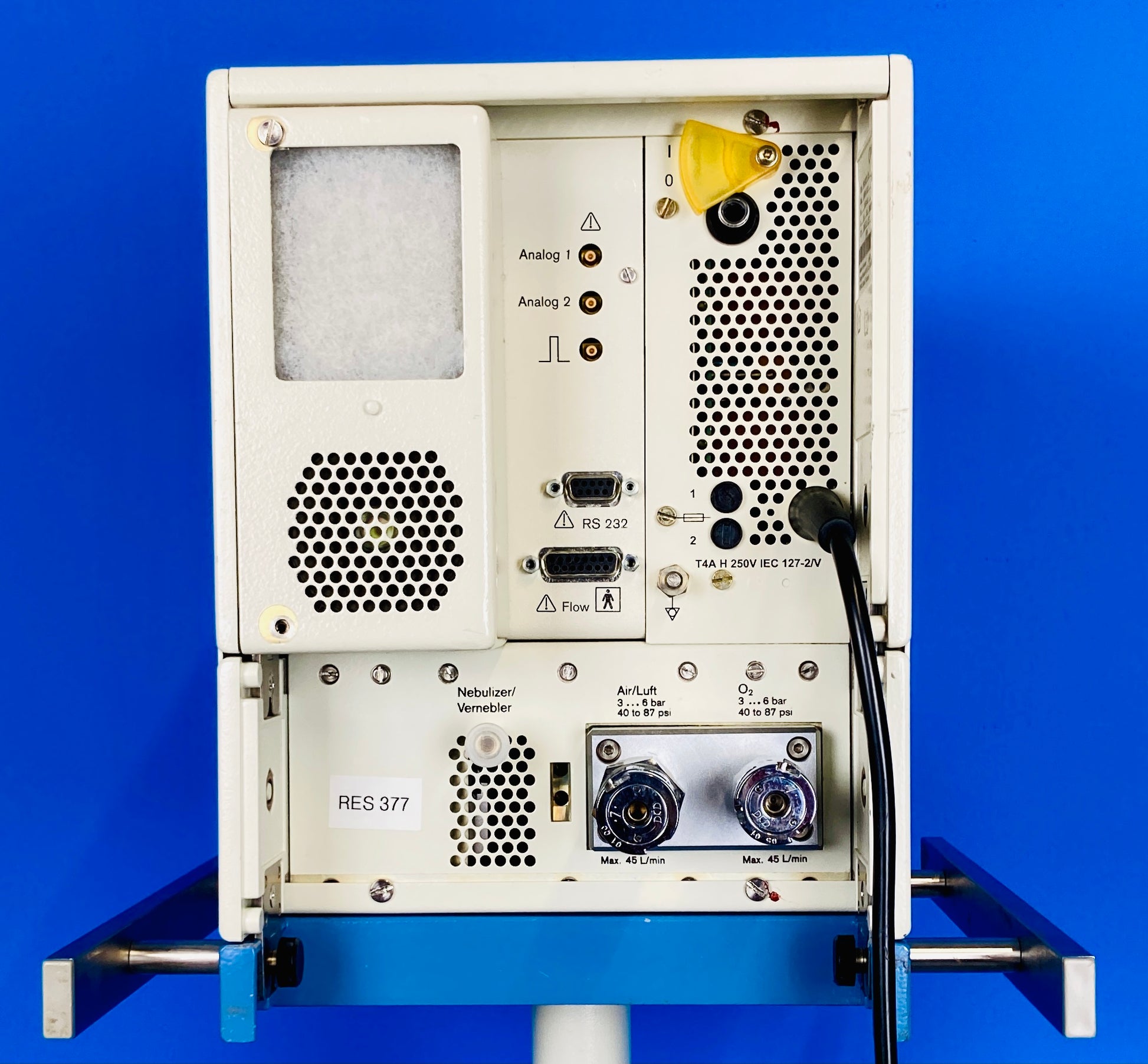

  • Plug flow sensor cable connector into the back panel of the ventilator and tighten securing screws.
  • Babylog 8000 plus ensures gentle and precise ventilation for small children and pre-term babies, with advanced technology to keep up with new treatments and clinical advancements
1 6

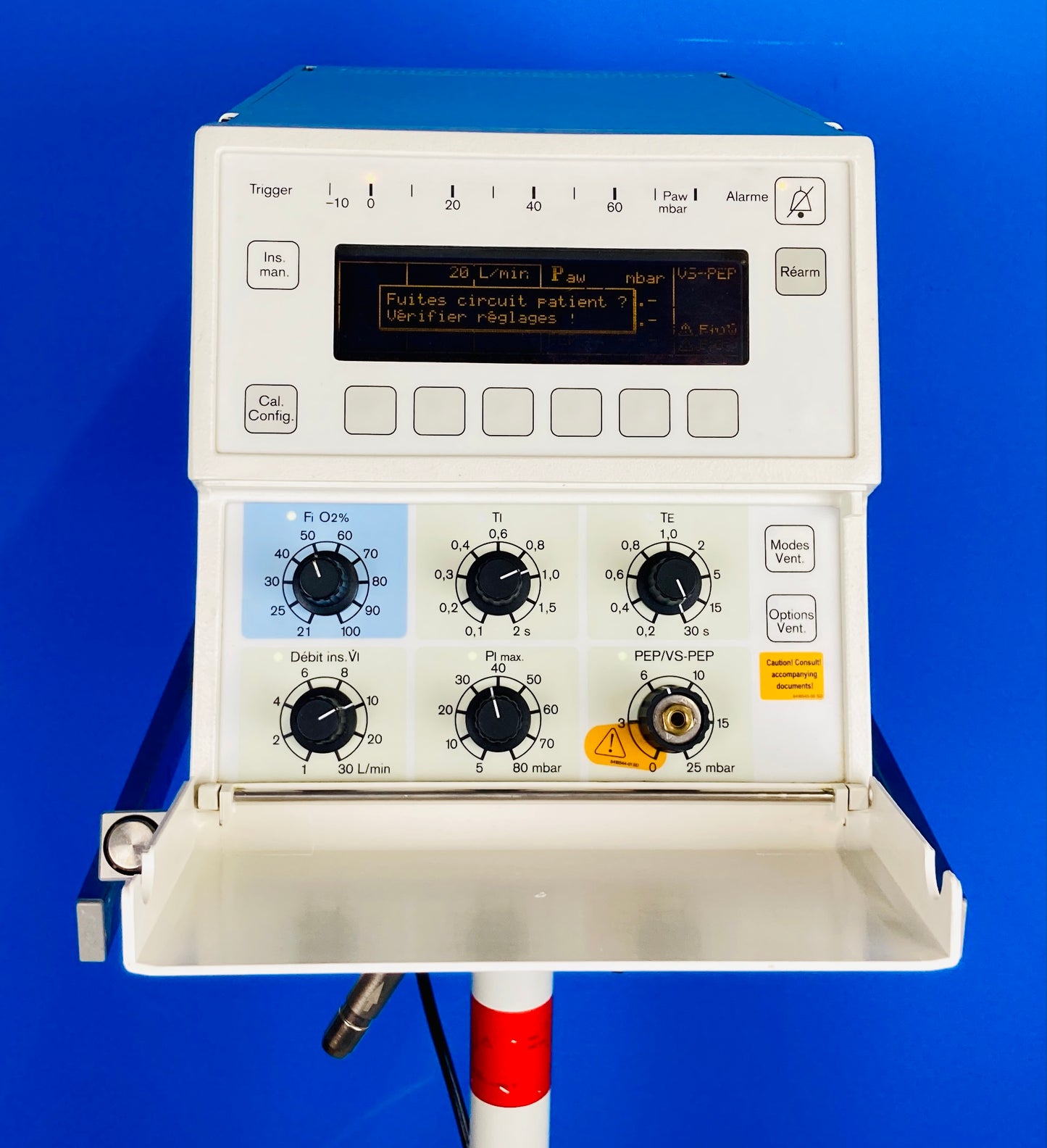

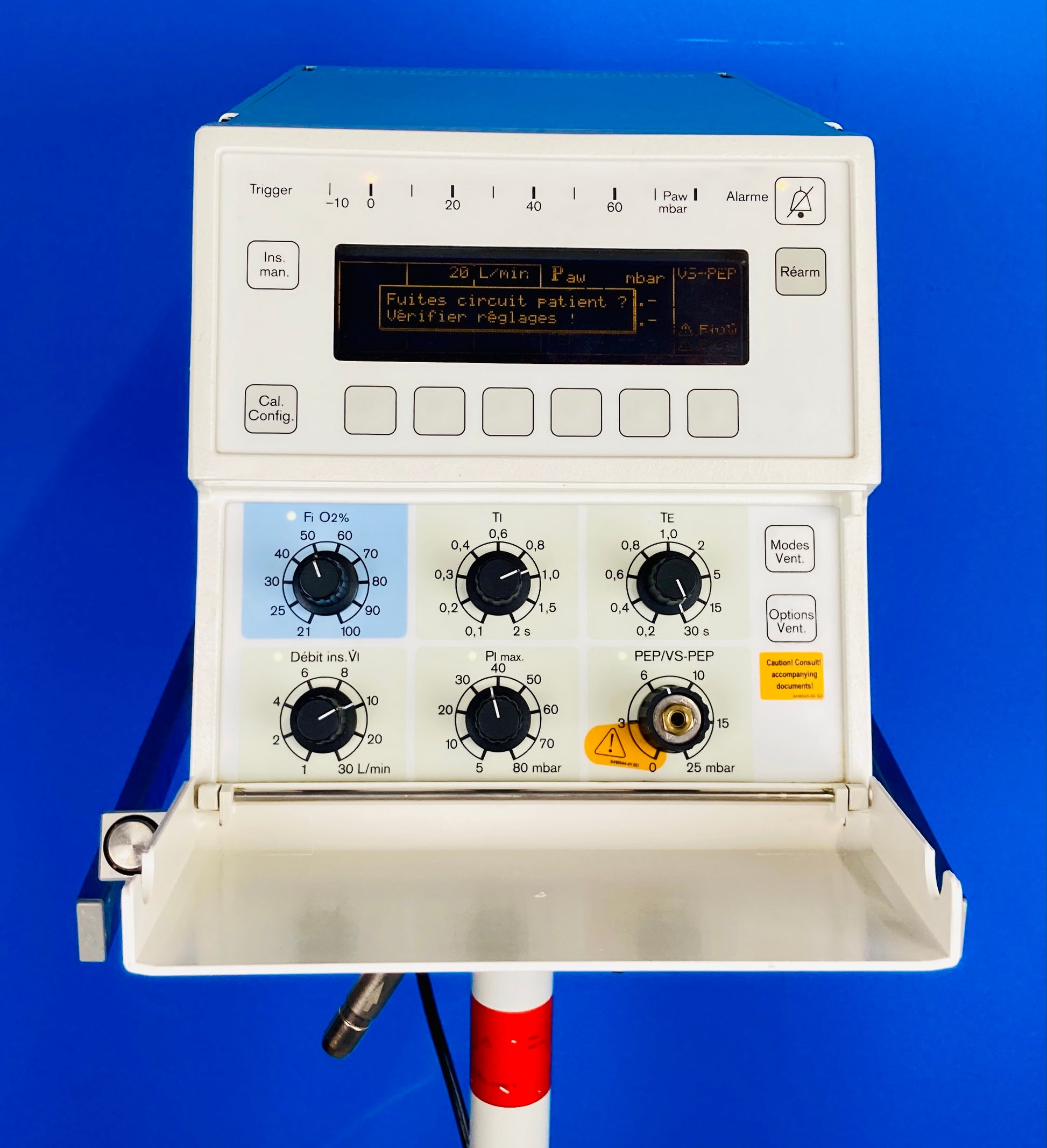

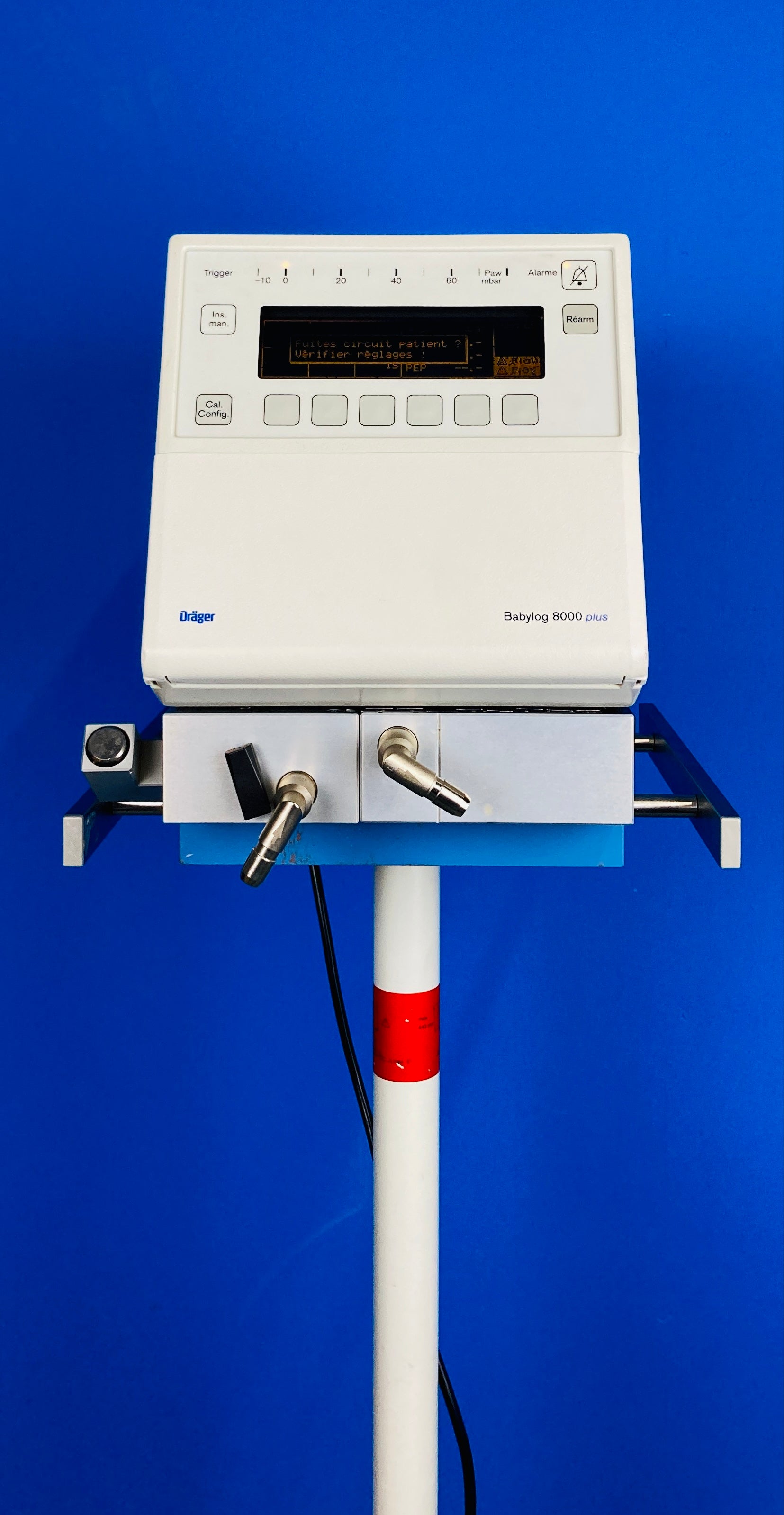

Drager Babylog 8000 Plus Ventilator

Drager Babylog 8000 Plus Ventilator

The Unit includes the following:

  • Air Hose
  • O2 Hose

The Babylog 8000 plus ensures gentle and precise ventilation for small children and pre-term babies, with advanced technology to keep up with new treatments and clinical advancements. Patient comfort is improved with sensitive synchronisation and reduced work of breathing.

Ventilator modes:

  • SIMV:
  • CPAP:
  • IPPV/IMV:
  • SIPPV:
  • PSV:
  • HFV & VIVE:

TECHNICAL SPECIFICATIONS:

Controls

  • Conventional ventilation: continuous flow, pressure-limited, time-cycled
  • Triggered ventilation: SIMV, SIPPV, PSV1), leak adapted
    - Trigger: Flow/volume trigger, leak adapted
    - Trigger delay: approx. 40-60 ms
  • High Frequency Ventilation: CPAP+HFV, IMV+HFV
    - Frequency: 5 to 20 Hz
  • Volume Guarantee Ventilation: SIMV+VG, SIPPV+VG, PSV+VG
  • Oxygen mixer loss (bleed flow): 0 (zero) L/min

Settings

  • Inspiratory oxygen concentration: 21-100 vol.% oxygen
  • Peak inspiratory pressure: 10 to 80 mbar
  • PEEP/CPAP: 0 to 25 mbar
  • Maximal frequency: 200 bpm
  • Inspiratory time: 0.1 to 2 seconds
  • Expiratory time: 0.2 to 30 seconds
  • Inspiratory flow: 1 to 30 L/min
  • Base Flow (VIVE): 1 to 30 L/min

Monitoring

  • Flow monitoring: at the Y-piece, integrated
  • Volume monitoring: at the Y-piece, integrated
  • Lung function monitoring: compliance, resistance C20/C
  • Method: linear regression analysis
  • FiO2 monitoring: integrated
  • Real-time curves: Flow and pressure, integrated
  • Inspiratory oxygen concentration: 21-100 vol.% oxygen
  • Peak pressure: to 99 mbar
  • Mean airway pressure: to 99 mbar
  • Graphic trends: 6 parameters, integrated

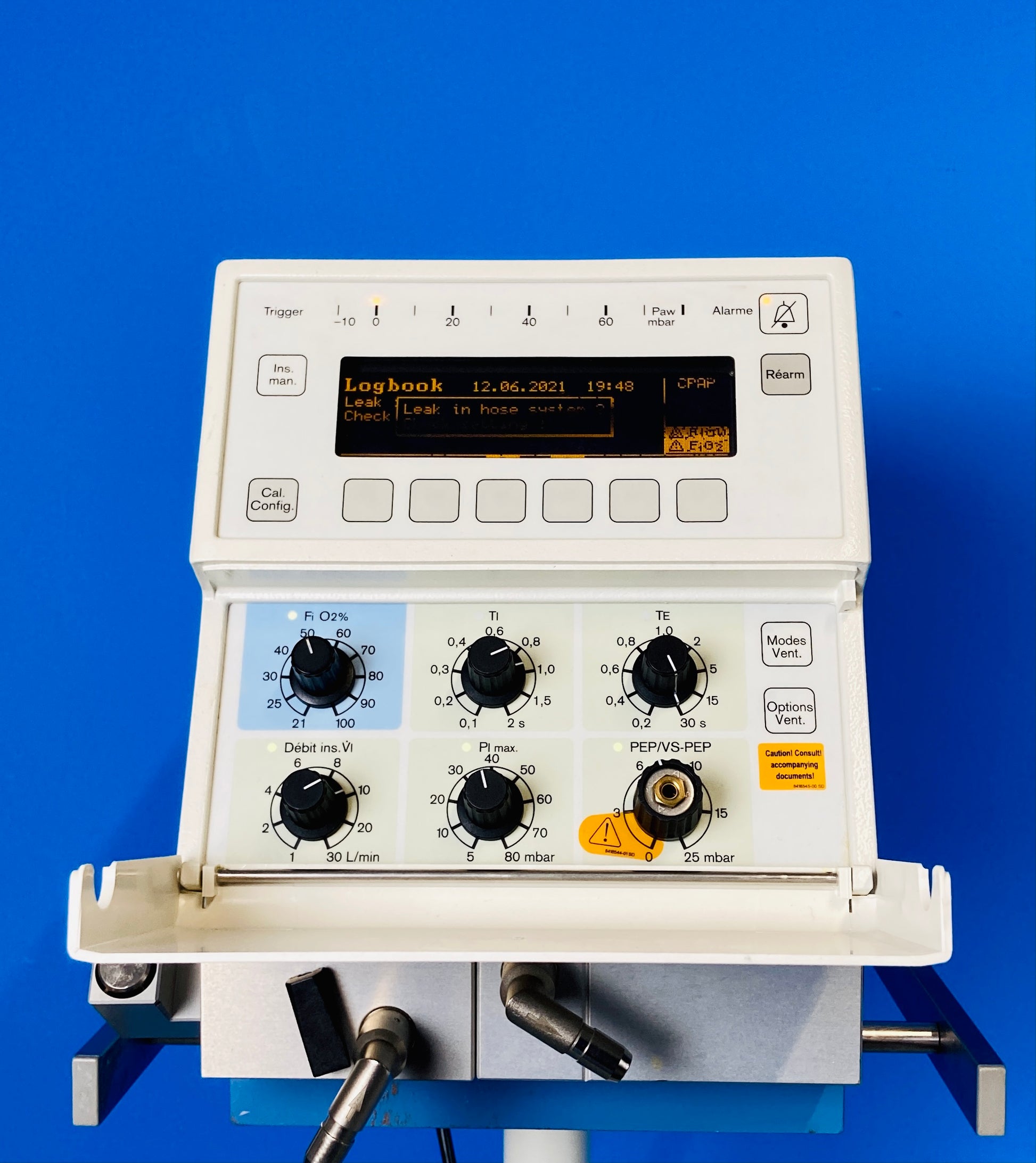

  • Logbook: record of up to 100 alarms

The unit Powers On and completes the Self Test
The unit is in Excellent Condition.
