• GE Datex Ohmeda Aestiva 5 is a versatile anesthesia machine with an integrated breathing circuit for intensive care ventilation.
  • Aestiva 5 is a flexible system, allowing you to customize the anesthesia and ventilation flow.
  • This allows the system to provide consistent delivery of measurements such as tidal volume and gas flow
  • Tec 7 Vaporizer is designed for use in continuous flow techniques of inhalation anesthesia. Each vaporizer is agent-specific and is clearly labeled with the anesthetic agent that it is designed for.
  • Auto View on Alarm (AVOA) automatically shares high priority alarms within the care unit, CARESCAPE Patient Data Module provides consistent hemodynamic measurement during intra-hospital transport and also transfers trend data
1 5

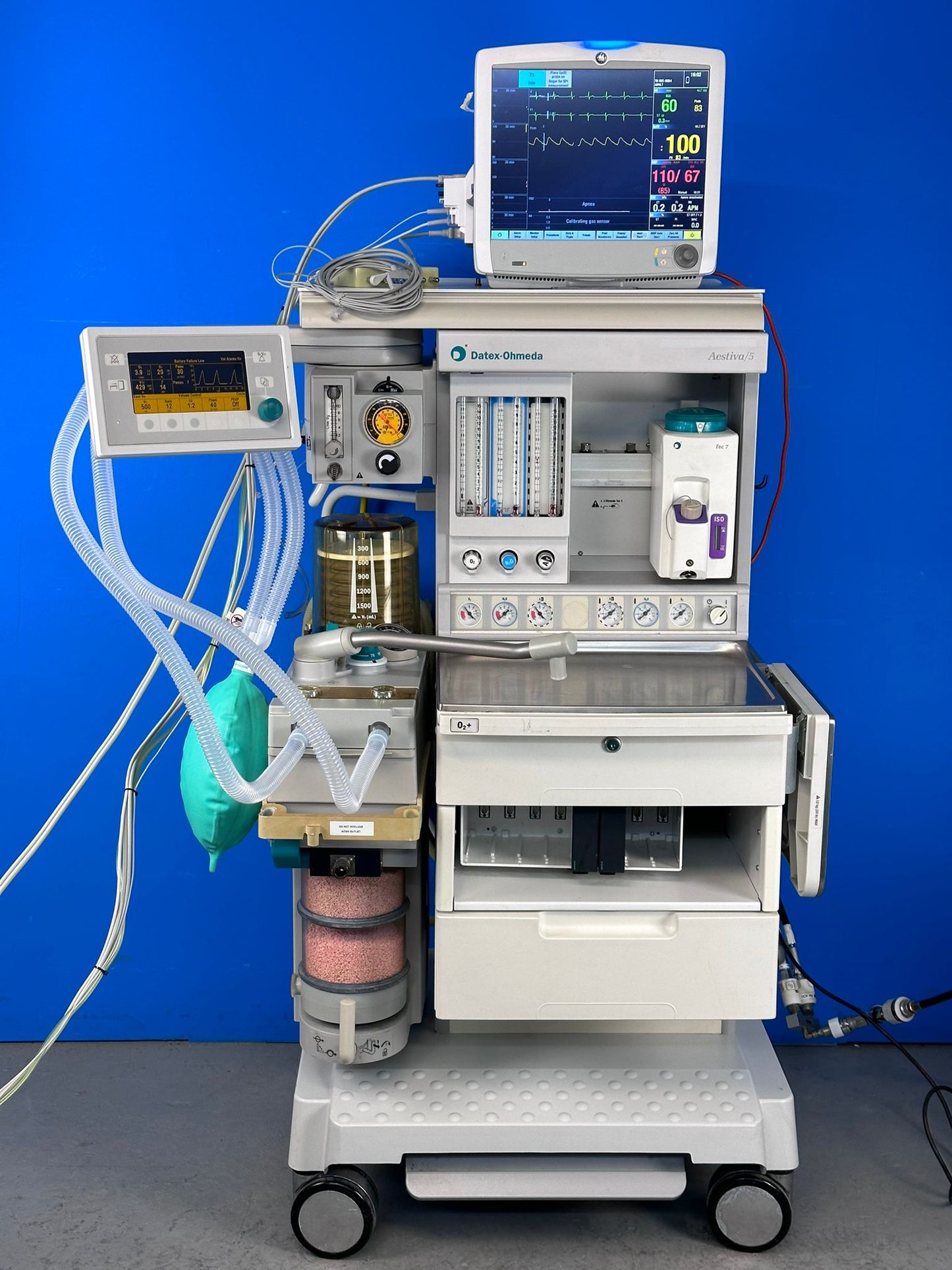

Datex Ohmeda Aestiva/5 with 7900 Ventilator with B650 Anesthesia Monitor

Datex Ohmeda Aestiva/5 with 7900 Ventilator with B650 Anesthesia Monitor

The Machine includes the following:

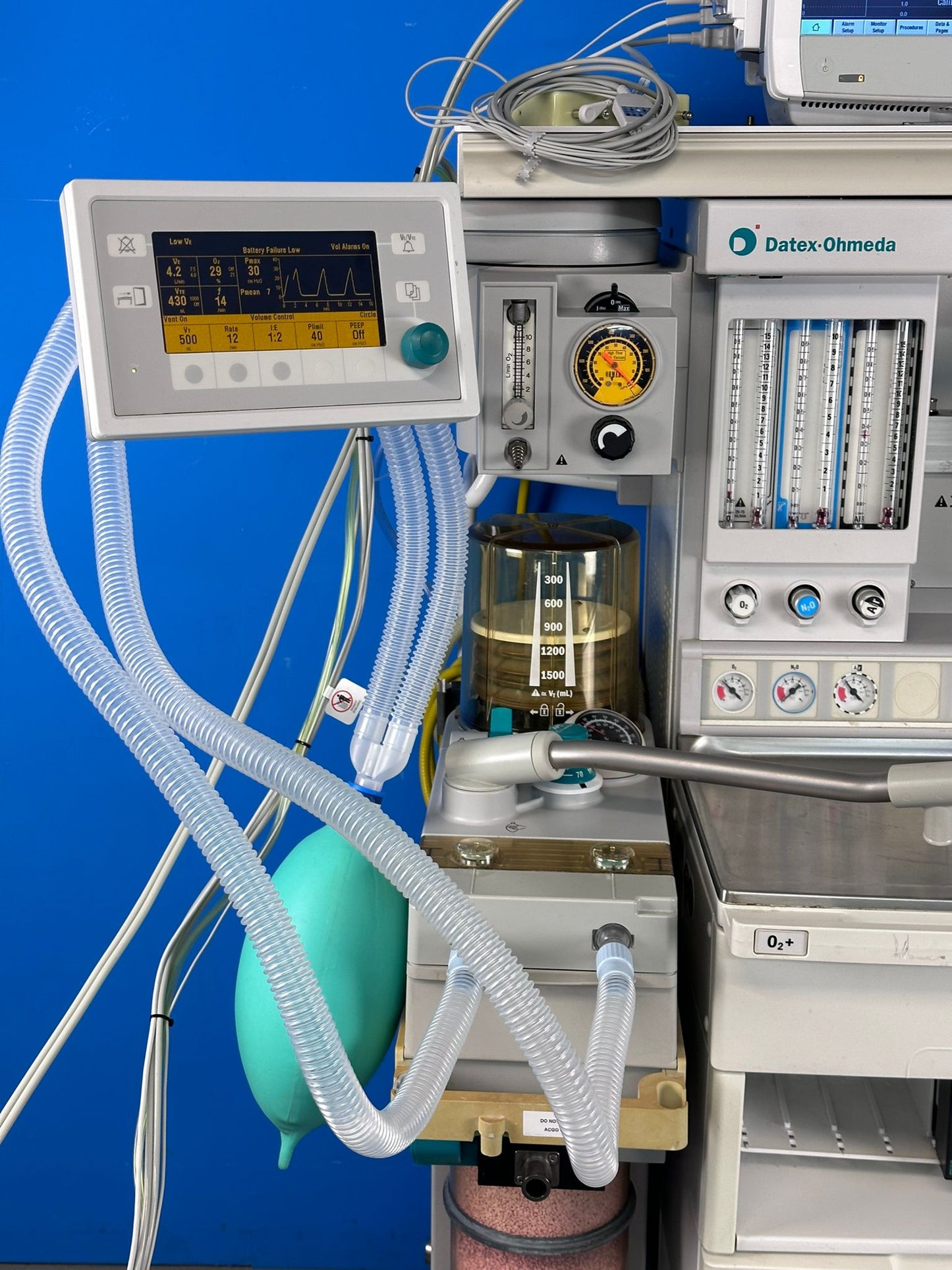

·        GE Datex Ohmeda 7900 Smartvent Ventilator

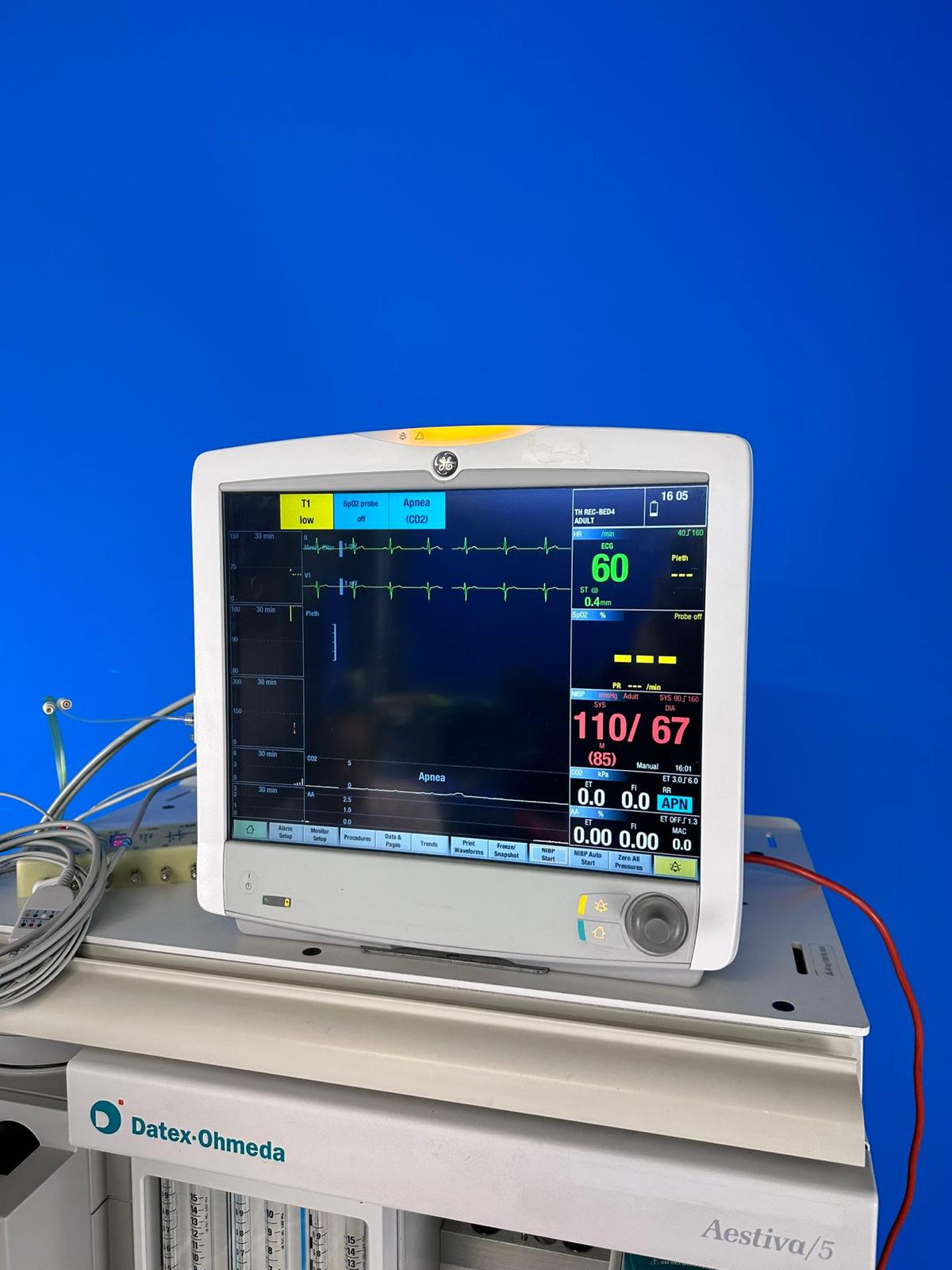

·        GE Carescape B650 Anesthesia Care Monitor

·        GE E-CAIOV-00 Gas Module with Mini D-Fend

·        GE E-PSMP Module

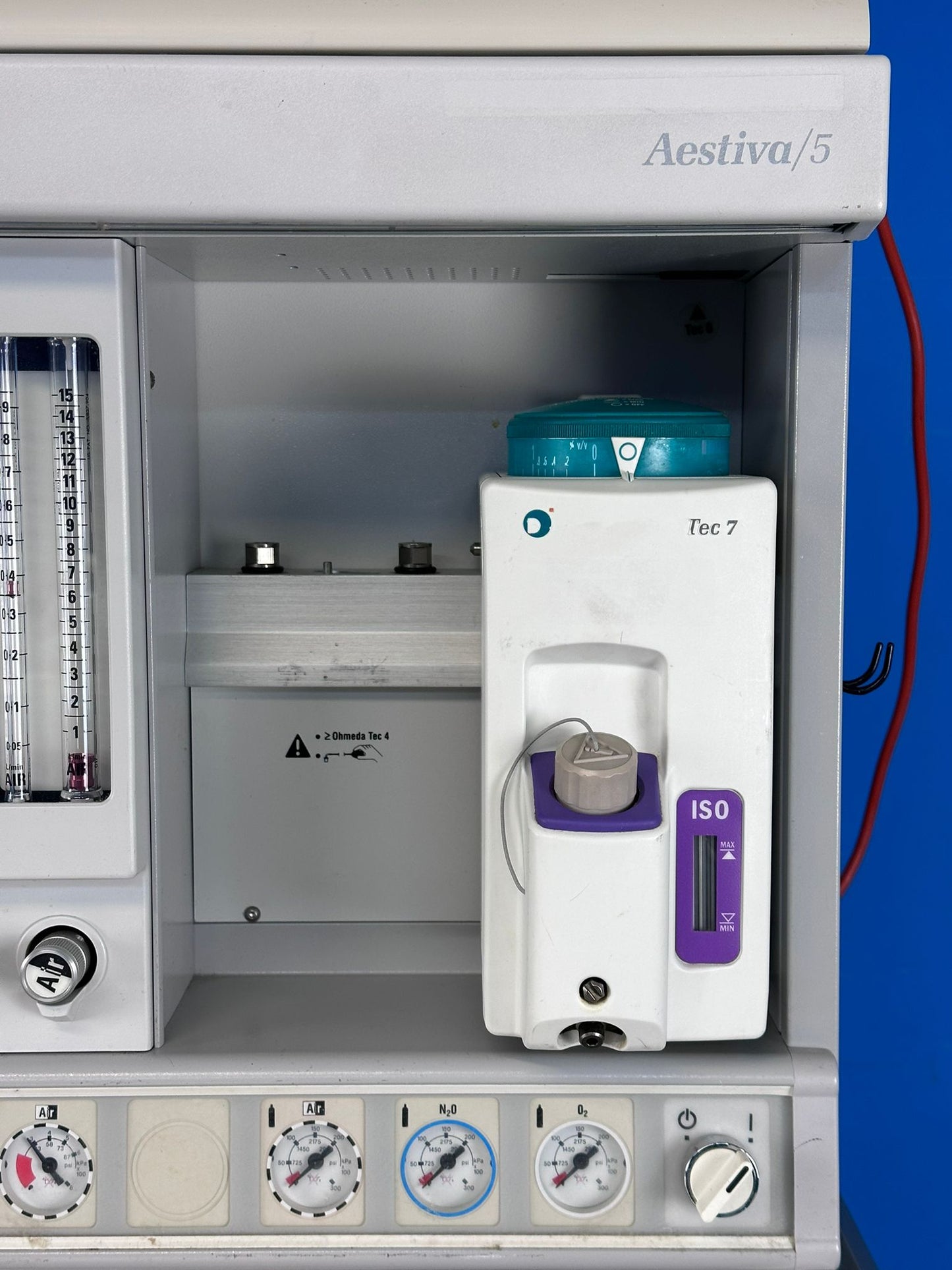

·        Datex Ohmeda TEC 7 Isoflurane Vaporiser (calibrated)

·        Hoses

The GE Datex Ohmeda Aestiva 5 is a versatile anesthesia machine with an integrated breathing circuit for intensive care ventilation.. The Aestiva 5 is a flexible system, allowing you to customize the anesthesia and ventilation flow. The machine comes in two options for ventilation, the 7100 or the 7900 SmartVent giving you a higher level of control. The anesthesia machine can safely produce low-flow anesthesia and can reduce the number of anesthetic agents. This allows the system to provide consistent delivery of measurements such as tidal volume and gas flow. The Datex Ohmeda system additionally offers a few varieties of vaporizer configurations ranging from two or three connections.

Features:

  • Advanced breathing system with ventilation
  • Ventilation options: 7100 and 7900 SmartVent
  • Fresh gas flow compensation—automatically
  • 2 or 3 vaporizer configurations
  • Cardiac bypass case mode
  • Customizable drawers and shelves
  • Dual Air Flow tube for low-flow
  • Built-in machine diagnostics

Ventilation Operating Modes:

  • VCV (Volume Control ventilator)
  • PCV (Pressure Control (optional)
  • SIMV (Synchronized Intermittent Mandatory Ventilation)
  • PSVPro 7900 with Apnea backup (Pressure Support with Apnea Backup) (optional)

Compatible Vaporizers:

Tec 4, Tec 5, Tec 6 Plus, Tec 7

It comes with a 8-inch ventilation display that showcases waveforms and alarm indicators.

The Machine offers both anesthesia gases and ventilation at the same time.

The Machine uses the GE SmartVent 7900 as the ventilator system for the anesthesia machine.

The Machine delivers complete ventilation cycles when tested with the medical gases.

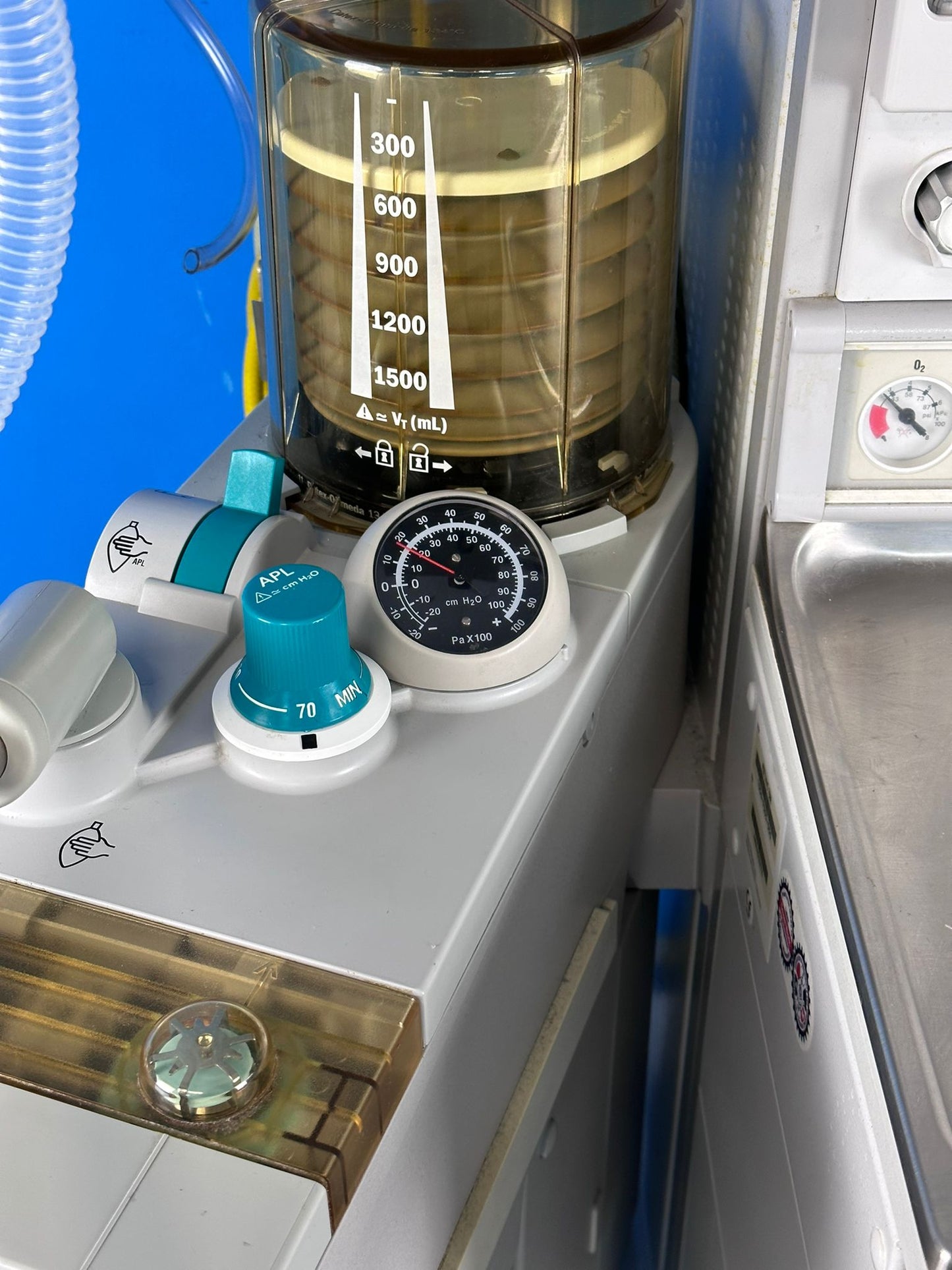

Breathing system's flow sensors, bellows and absorber are in good working condition.

The Aestiva/5 provides optimized low flow anesthesia. This enhances safety while reducing the agent operating costs of the machine.

The anaesthesia machine was tested with medical air and test lung and complete ventilation cycles were delivered.
Our team of Qualified Biomedical Engineers ensure that the machine is in excellent working condition.
Contact us today to learn more and get a personalised estimate for your requirements.
Additional accessories and attachments can be provided upon request.
We are here to help you make the most informed decision for your medical equipment purchases in your budget.
