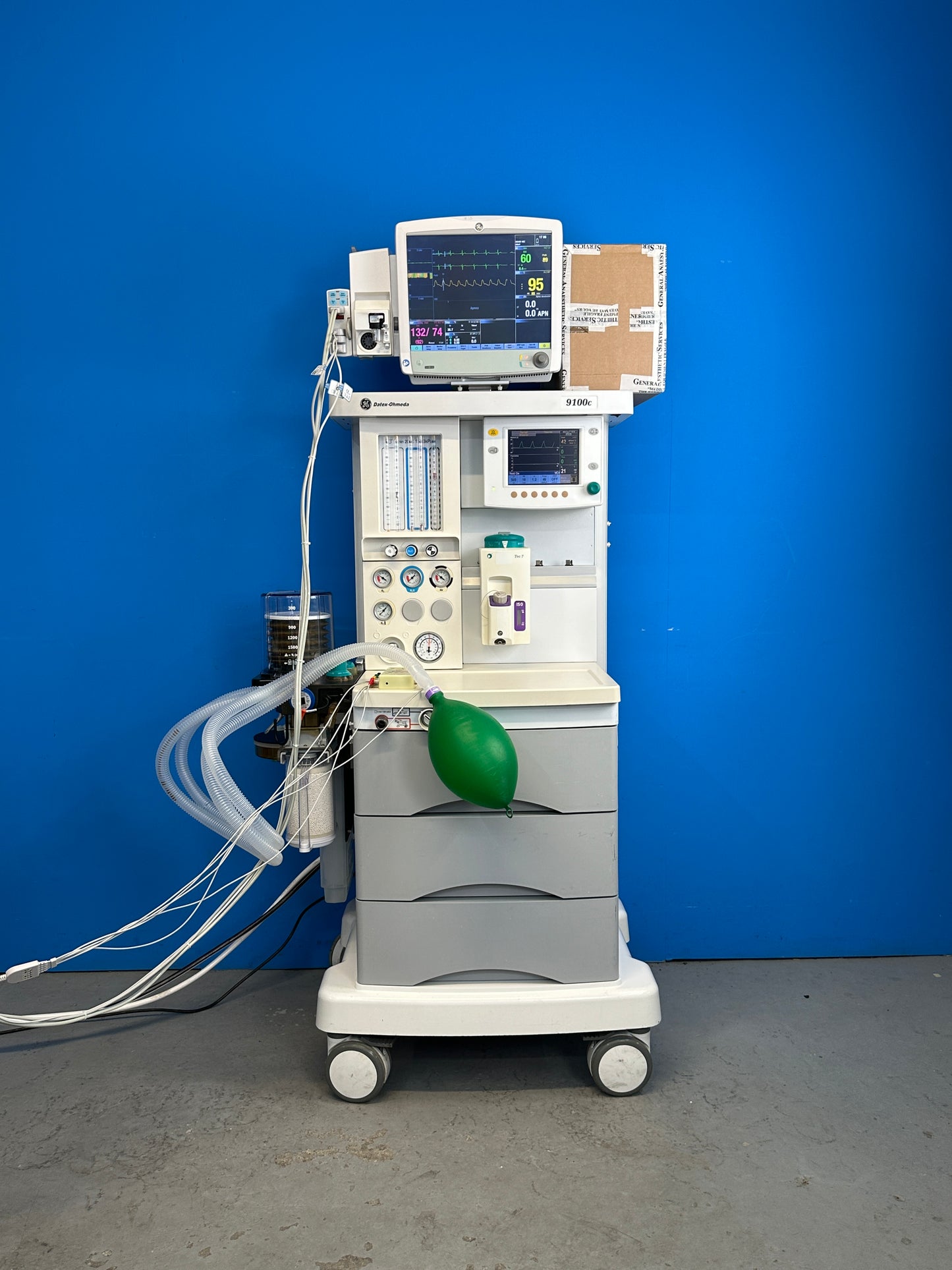

• Datex Ohmeda 9100c anaesthetic machine powers up and completes the initial self-test successfully. The LCD screen, soft keypads and rotary selector dial are working. Screen is in good physical condition.

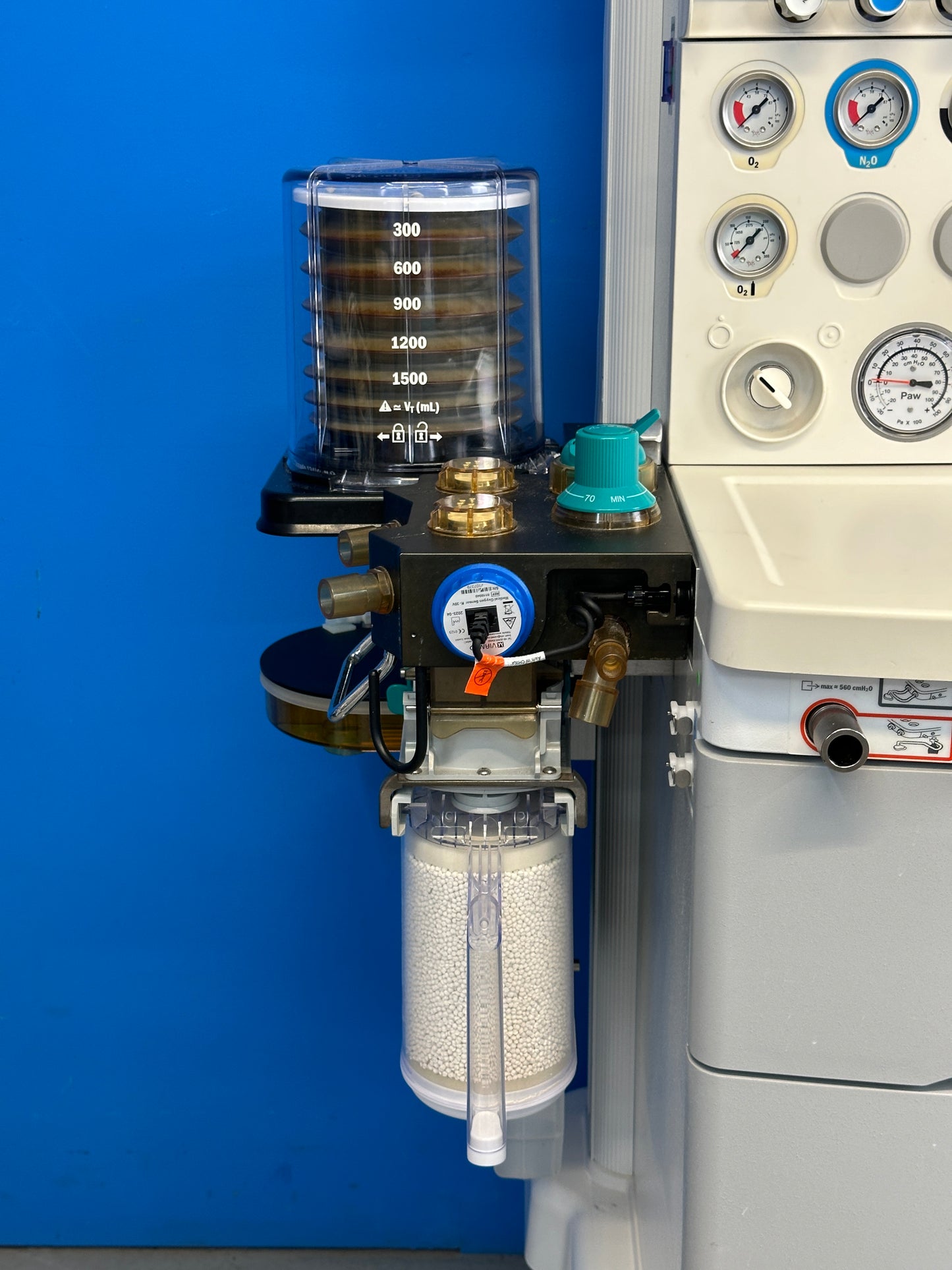

  • Breathing assembly and bellows are in good working order.
  • Good ventilation cycles were delivered with the set tidal volume and breath frequency (BPM) corresponding to the measured minute volume. B650 Monitor with Modules
  • Flow sensor is functional. O2 sensor is functional and calibration was successful. Pressure gauges and flowmeters are working. Anti-hypoxic guard is working. O2 flush and APL valve are working.
  • Small internal volume of 2.6L and non-decoupled fresh gas delivery resulting faster gas kinetics, strike off after delivery.

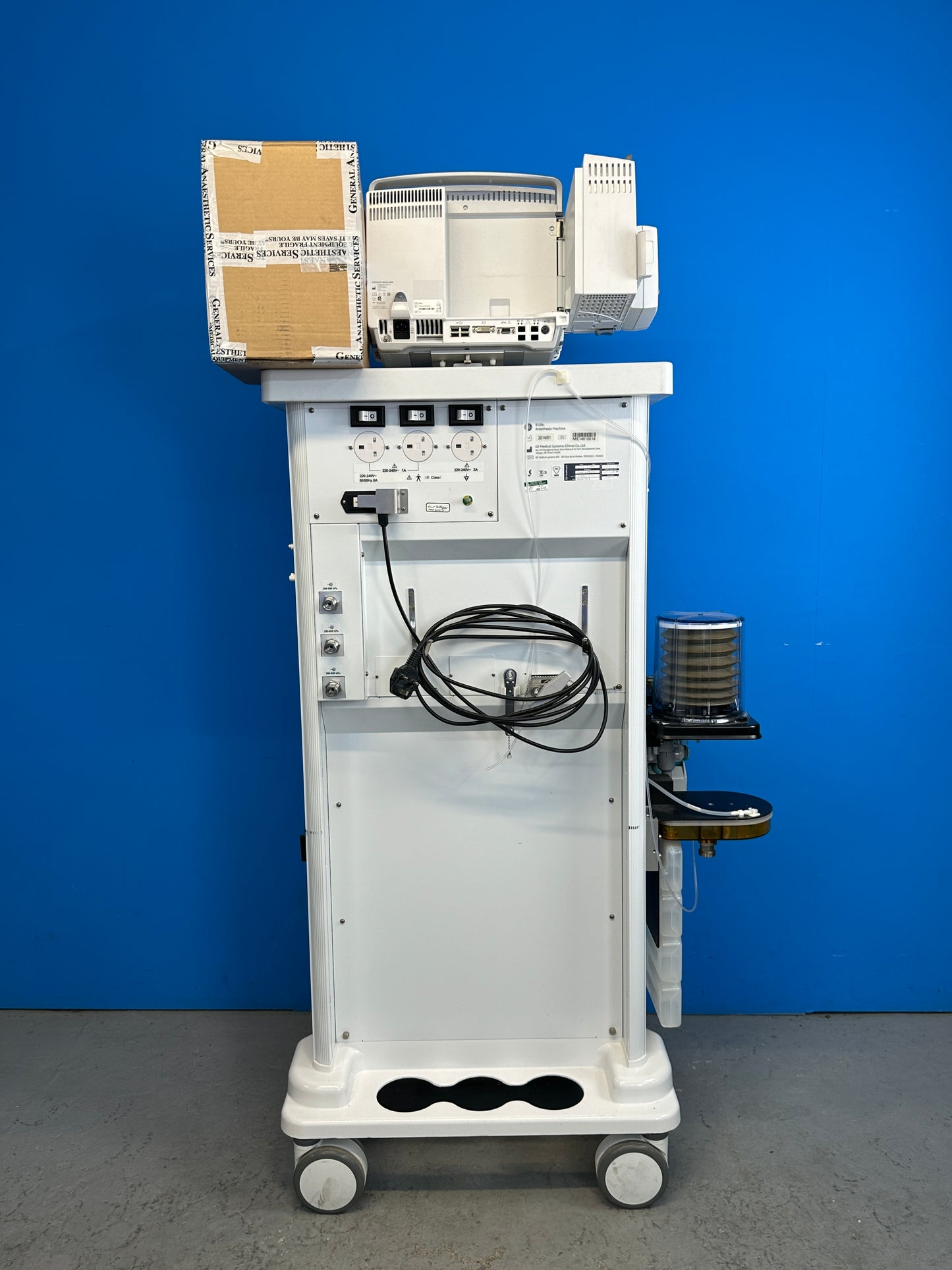

  • O2, Air, N2O pin index yokes are fitted at the back of the Machine
  • Dual flow sensors for precise volume and pressure delivery to reduce the challenges in managing neonatal and pediatric patients
1 7

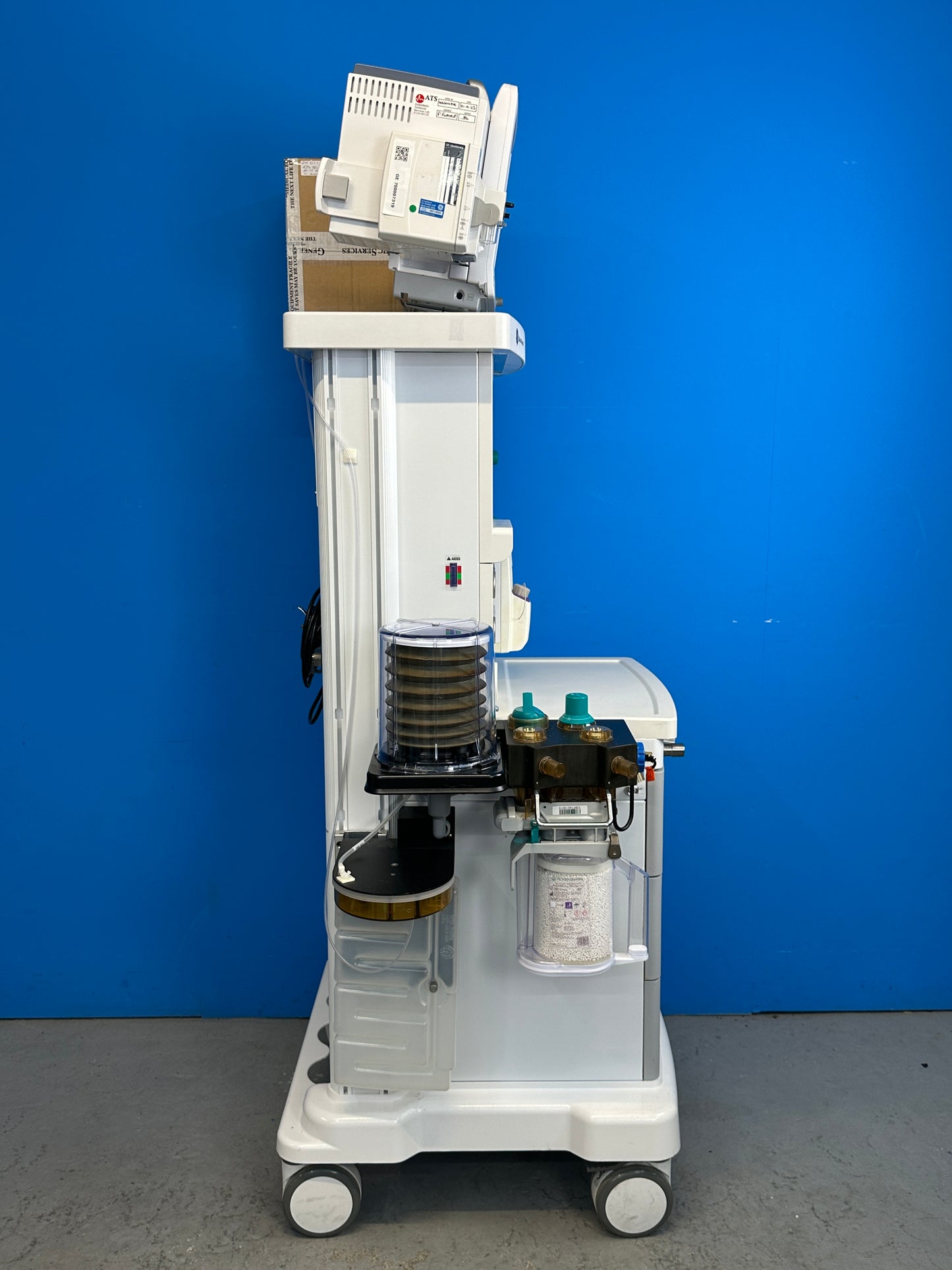

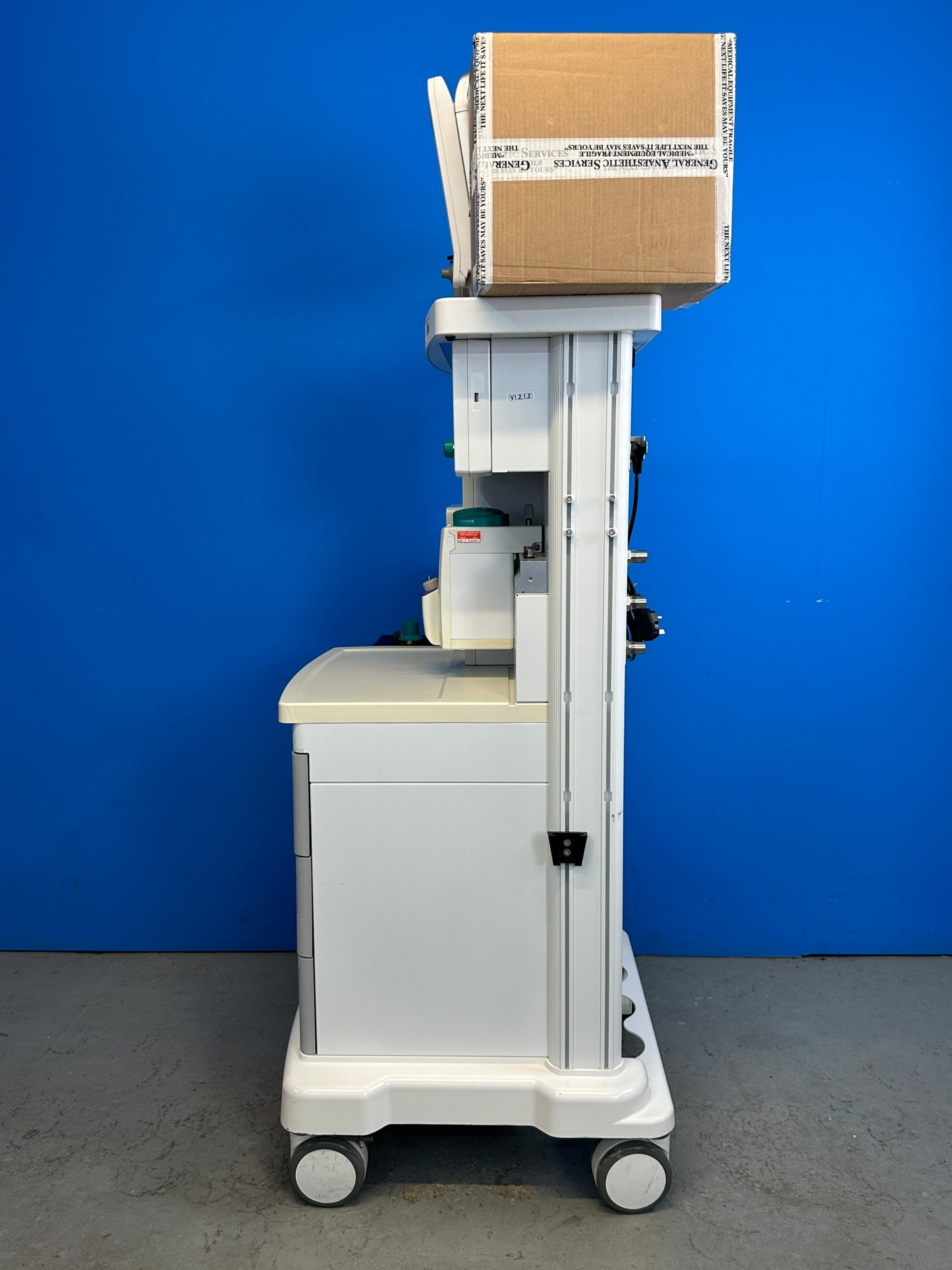

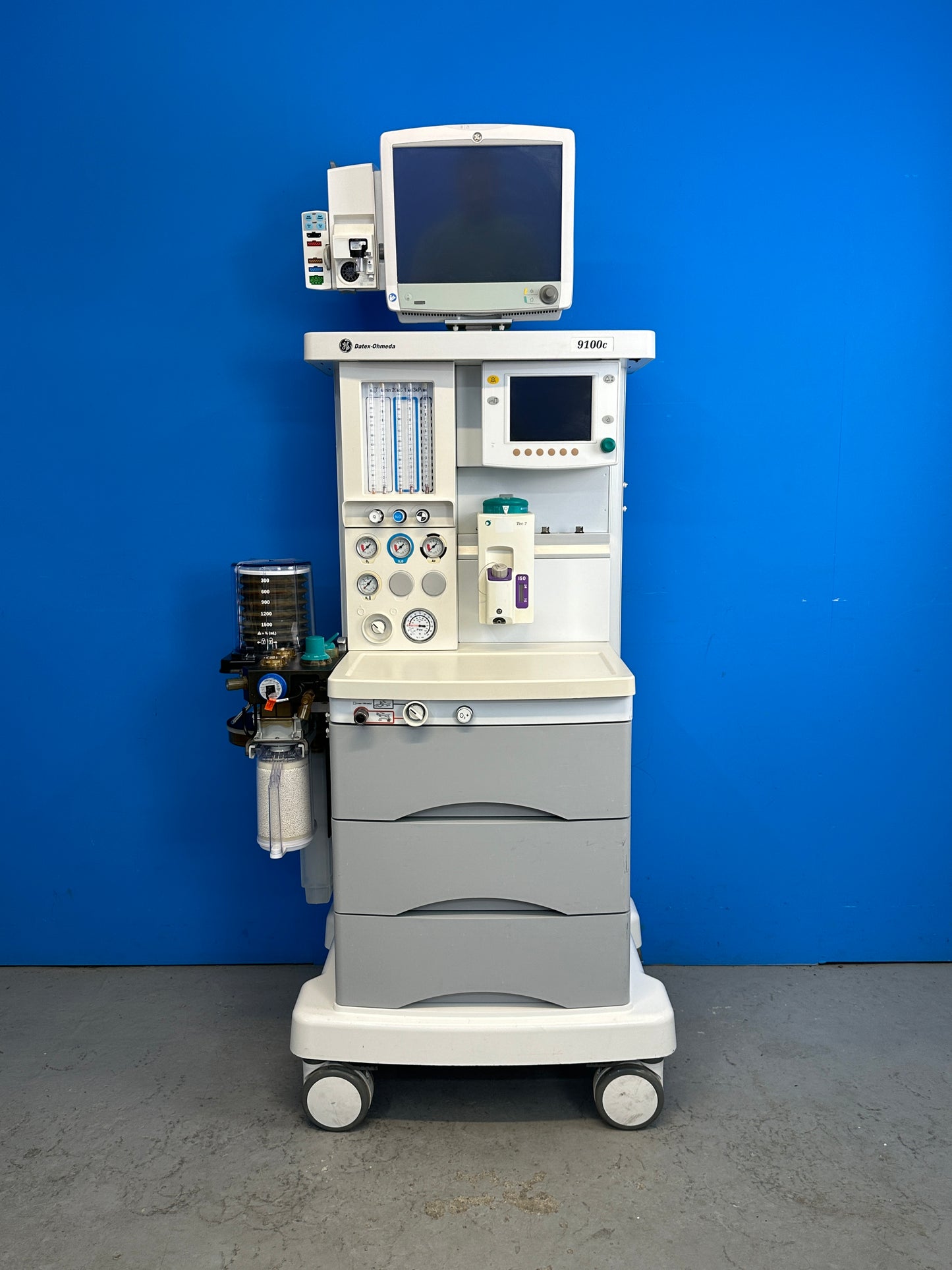

Datex-Ohmeda 9100c Anaesthesia Machine

Datex-Ohmeda 9100c Anaesthesia Machine

The machine comes with the following:

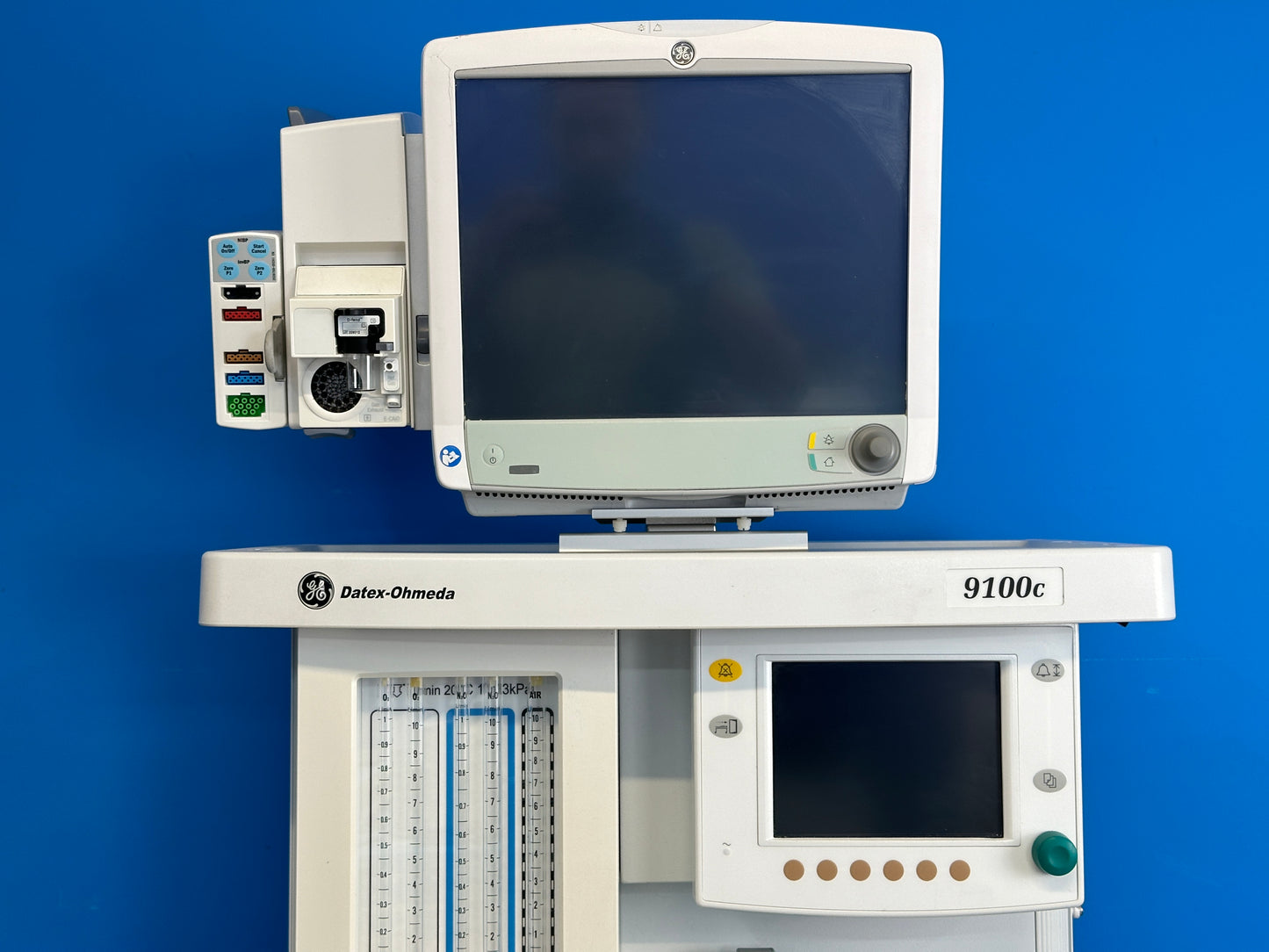

·        Datex Ohmeda B650 Anesthesia Monitor

·        GE E-CAIO Module

·        GE E- PSMP Module

·        Datex Ohmeda SmartVent

·        Datex-Ohmeda Isoflurane Tec 7 Vaporiser

·        Hoses (O2, N2O, Air)

The Datex Ohmeda 9100c anesthesia machine is designed to deliver effectively and precise anesthesia. It features advanced ventilation modes, touch screen interface and compact design. It is compatible for a wide range of patient groups (Neonatal, Paediatric and Adults) and surgical procedures. GE 9100c is typically includes automated pre-use check routine for system integrity and calibration. It is capable of supporting loo-flow and minimal-flow anesthesia techniques.

Datex-Ohmeda 9100c Features:

• GE Datex Ohmeda 9100c  Anaesthesia Workstation Deliver low flow anesthesia with confidence - for early patient recovery.

• Dual flow sensors in this machine are for precise volume and pressure delivery to the patient via, breath by breath, to help reduce the challenges in managing neonatal and Paediatric patients.

• It avoids commonly occurring unsafe conditions during general anesthesia.

• It provides precise delivery of Tidal Volume and Anesthetic Agent.

• It is designed to treat neonates to adult patients .

• Tidal Volume delivery as low as 5ml in pressure control ventilation and as low as 20ml in volume control ventilation .

• GE 9100c anesthesia machine delivers sustained target pressure with decelerating flow.

• Spirometry is with ability to save and compare reference loops for continuous monitoring of ventilatory status.

• Availability of SIMV, PSVPro ™ with apnea backup in this machine.

• Its ICU quality ventilator with ultra-sensitive trigger is to detect breathing effort of even an infant patient.

• It delivers anesthesia precisely.

• In this device, pre-use machine directed checks including the vaporizer leak test that prepare the device for patient use in <5 minutes .

• GE Datex Ohmeda 9100c is also available in a two gas variant.

• Its exchange CO2 bypass system enables removal of the absorbent canister from the patient circuit without introducing leaks into the breathing system, especially required during long

System was tested with medical air and test lung.

Good ventilation cycles were delivered with the set tidal volume and breath frequency (BPM) corresponding to the measured minute volume within tolerances.

Ventilator Modes:

·        VCV

·        PCV

·        SIMV

·        PSVPRO TM with apnea backup

Our team of Qualified Biomedical Engineers ensure that the machine is in excellent working condition.

Contact us today to learn more and get a personalized estimate for your requirements.

Additional accessories and attachments can be provided upon request.

We are here to help you make the most informed decision for your medical equipment purchases in your budget.
