• CF-H260DL is used for endoscopy and endoscopic surgery within the lower digestive tract

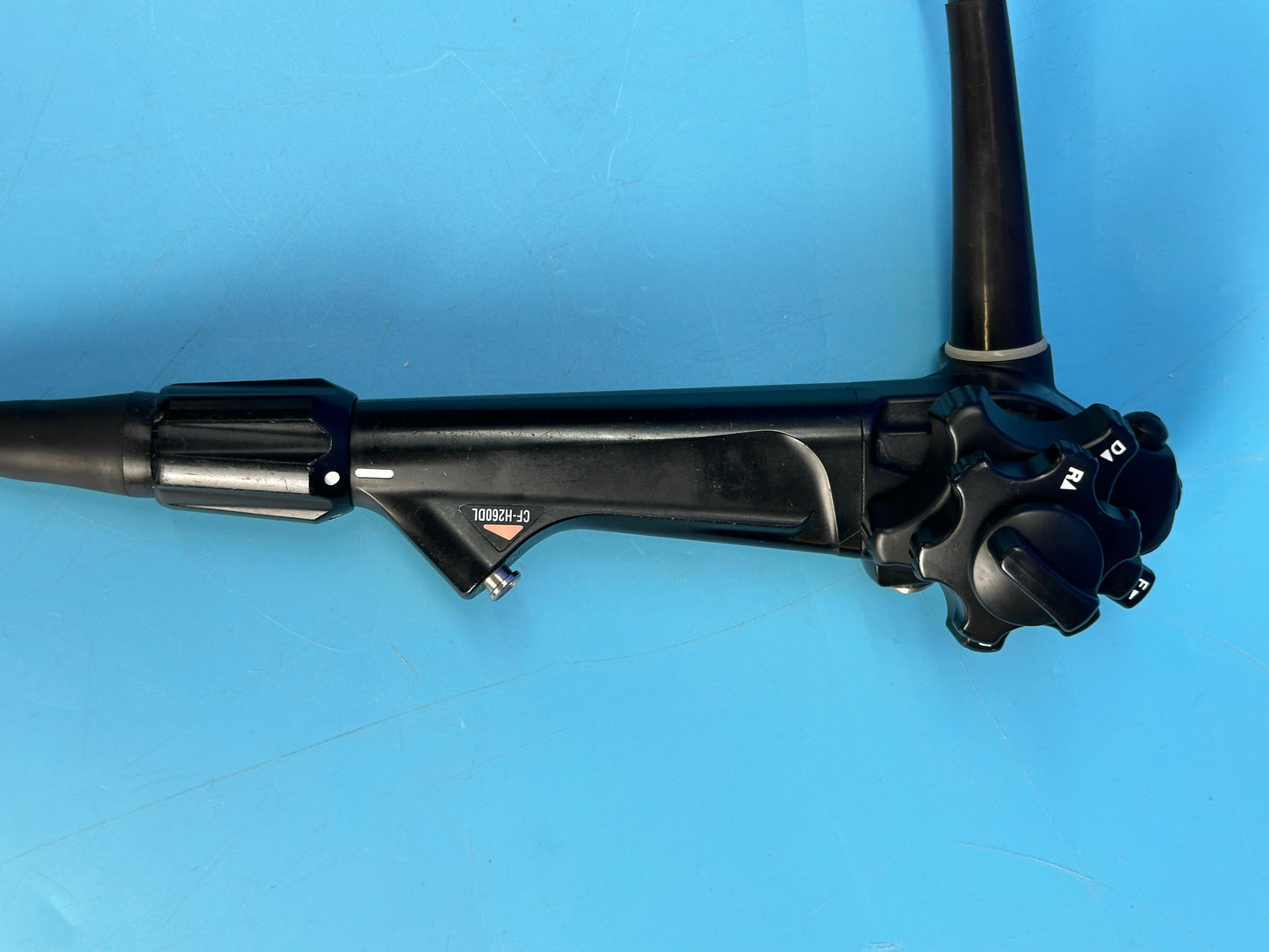

  • When this knob is turned in the “ U” direction, the bending section moves UP; when the knob is turned in the “D ” direction, the bending section moves DOWN.

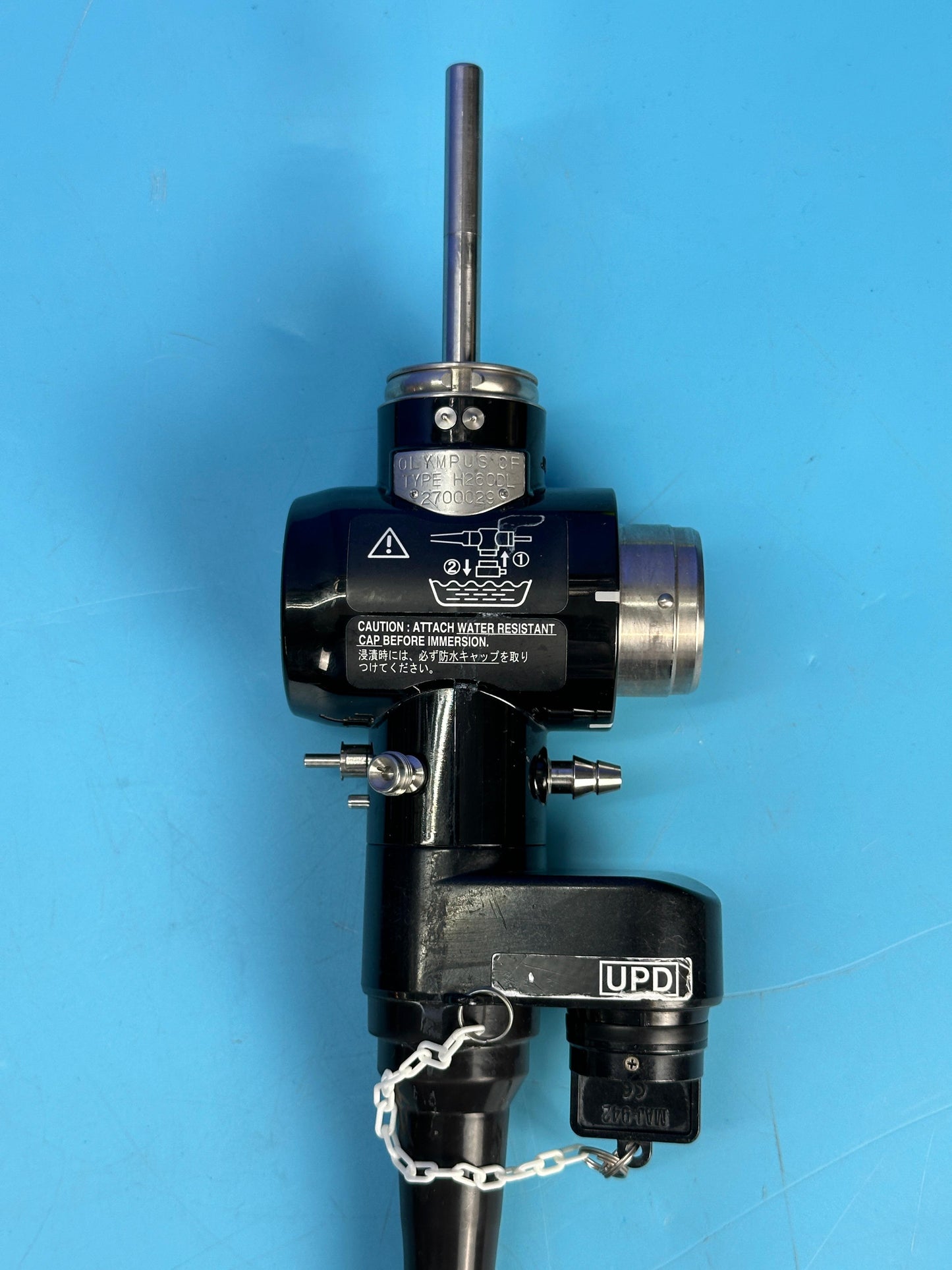

  • Connects the endoscope to the output socket of the light source and transmits light from the light source to the endoscope.

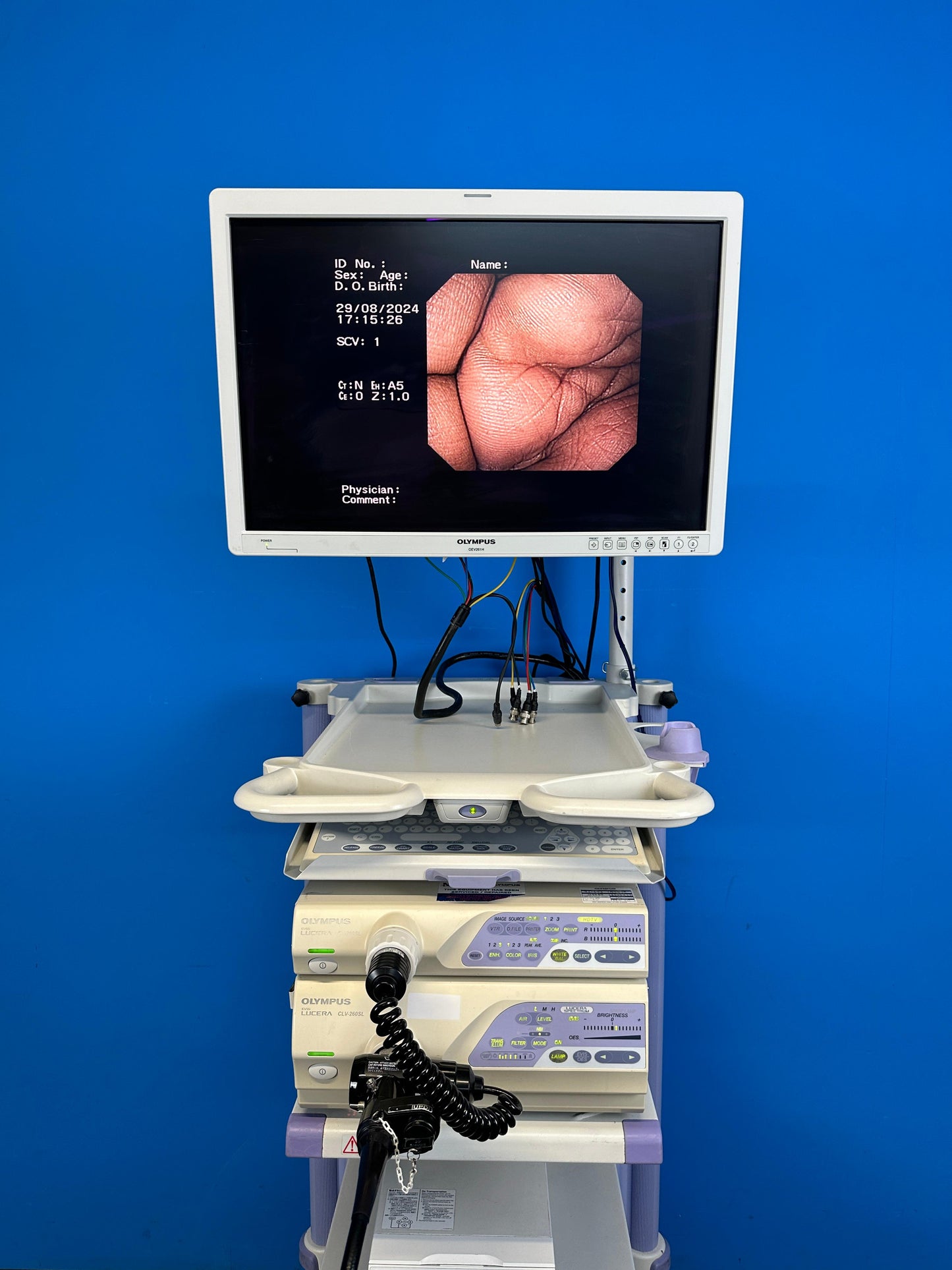

  • Olympus LED Monitor shows Excellent display of the endoscope view

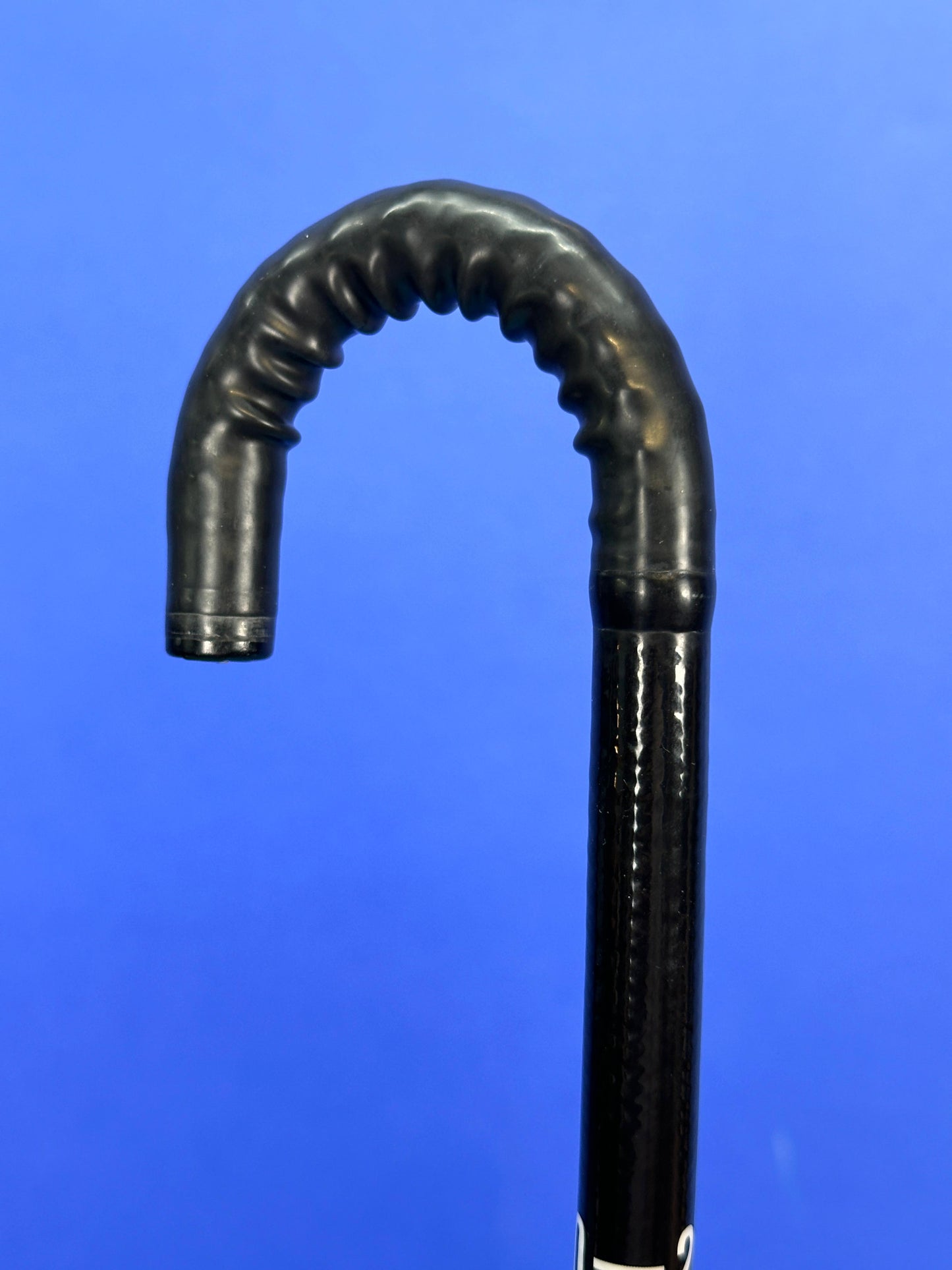

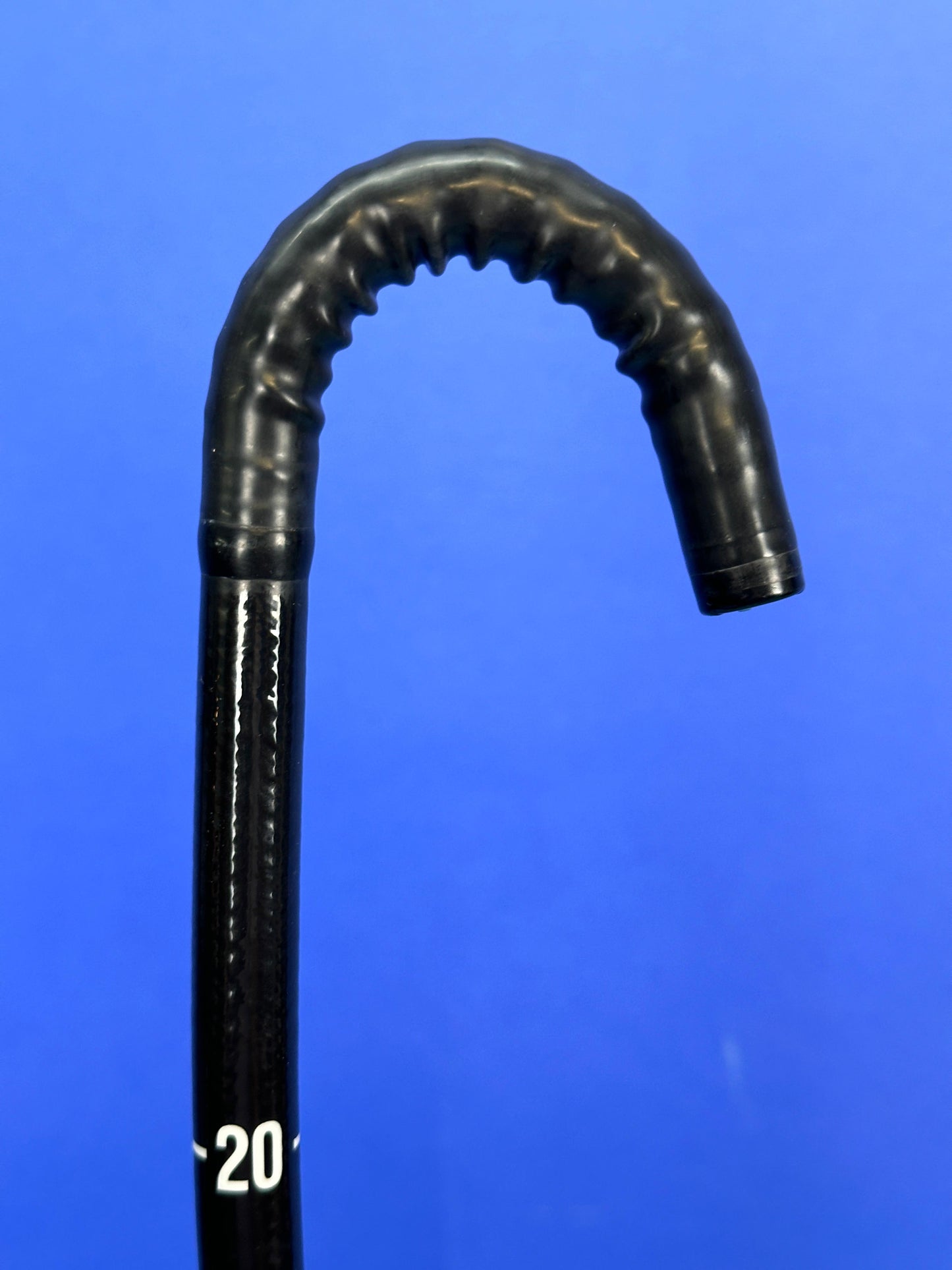

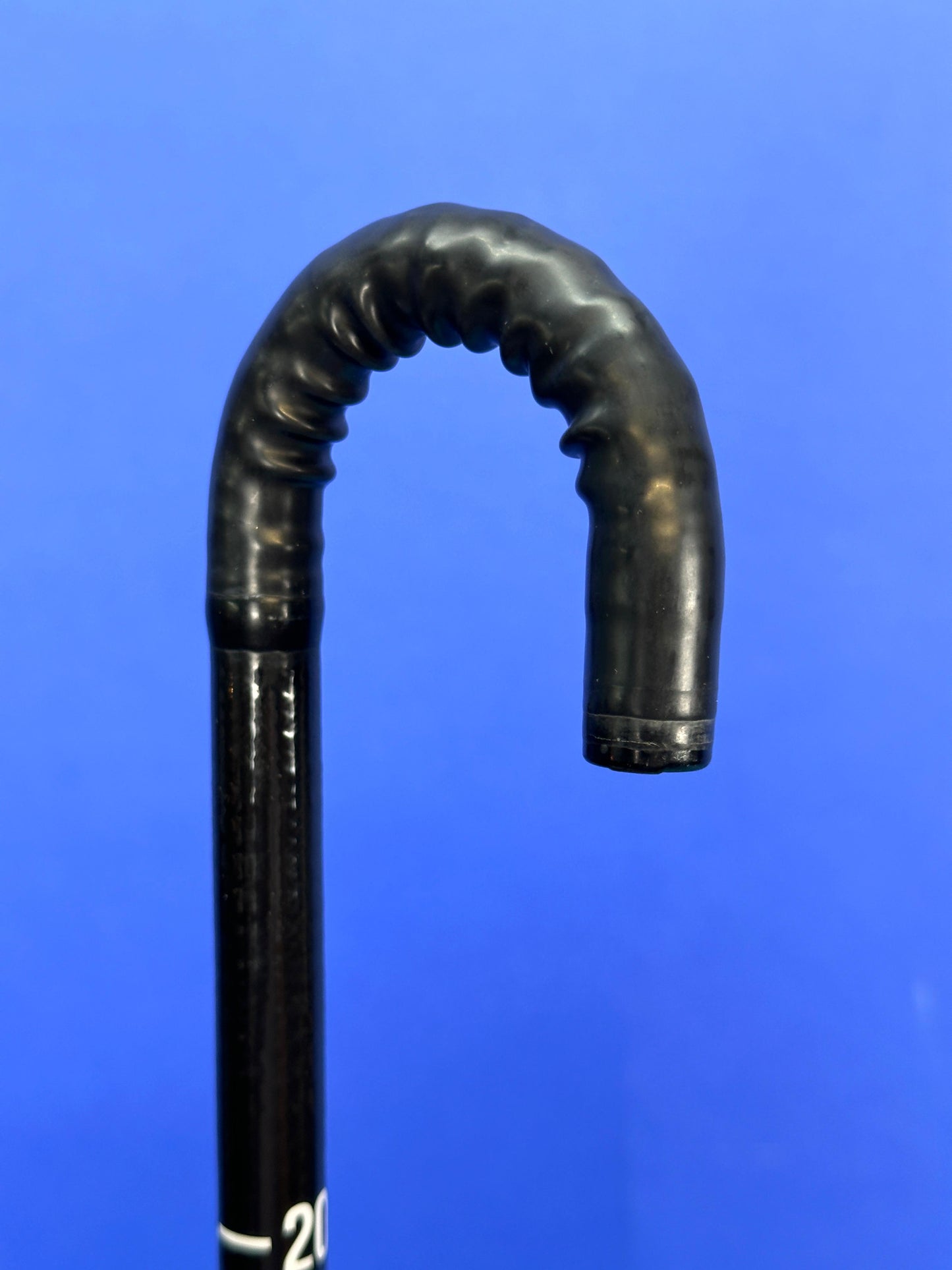

  • Insertion wire bending section with different angles view with great approach
  • This section moves the distal end of the endoscope when the UP/DOWN and RIGHT/LEFT angulation
  • Bending left side , working length

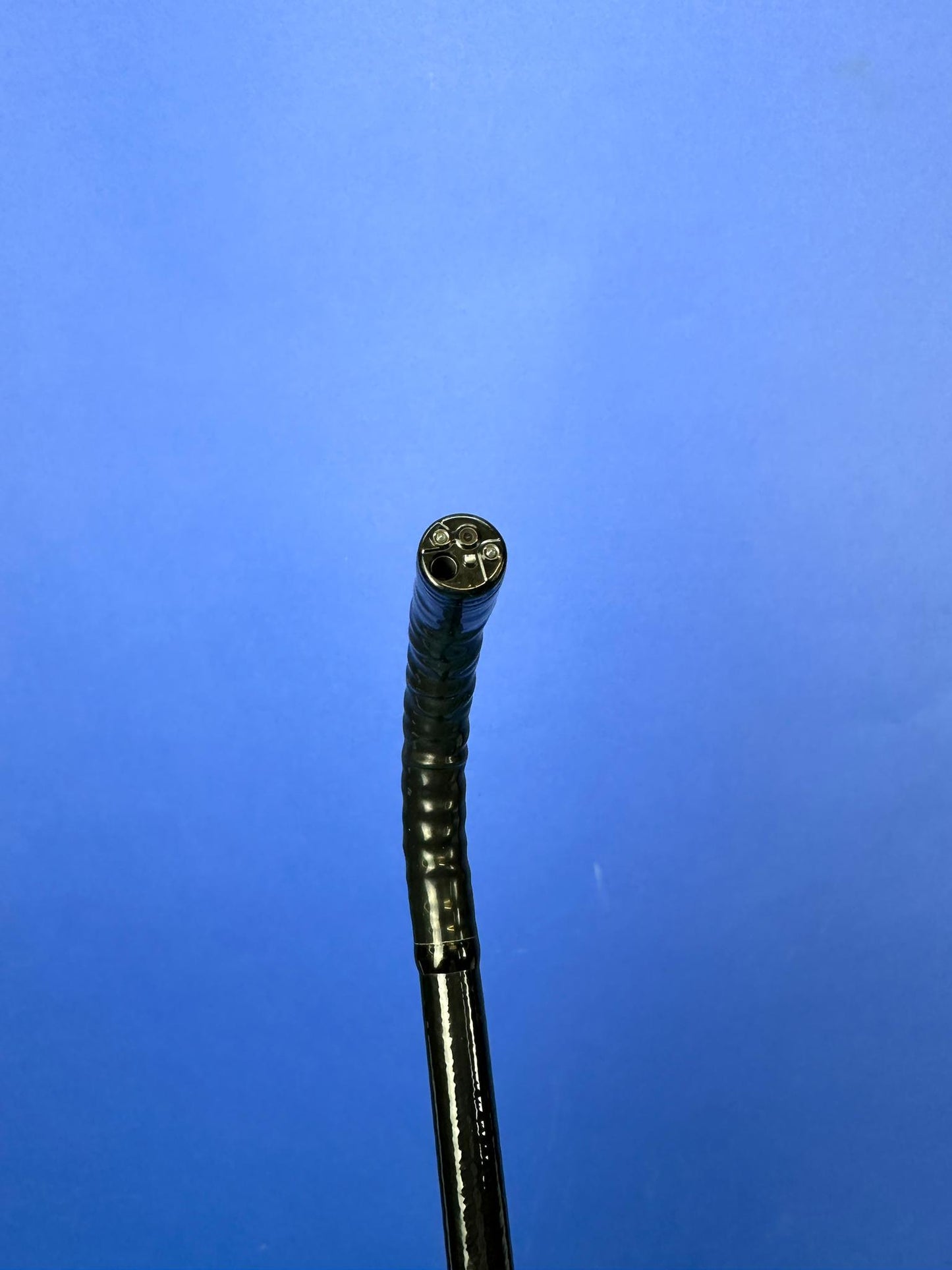

  • Distal attachments placed on the endoscope tip can improve visualization of the endoscopic field and have been applied for a variety of endoscopic procedures
1 8

Olympus CF-H260DL Evis Lucera Spectrum Video Colonoscope

Olympus CF-H260DL Evis Lucera Spectrum Video Colonoscope

CF-H260DL is used for endoscopy and endoscopic surgery within the lower digestive tract (including the anus, rectum, sigmoid colon, colon and ileocecal valve).

Scope Specification:

Optical system:

·        Field of view: 140°

·        Direction of view:  0° Forward viewing

·        Depth of field: 5 – 100 mm

Insertion tube

Distal end outer diameter: 13.6 mm

Distal end enlarged:

·        Air/water nozzle

·        Light guide lens

·        Objective lens

·        Instrument channel

Insertion tube outer diameter: 13.2 mm

Working length: 1680 mm 1330 mm

Range of the flexibility adjustment: The rigidity in the most-rigid condition is about twice that in the most-flexible condition.

Instrument channel

Channel inner diameter: 3.7mm

Minimum visible distance: 4 mm from the distal end

Direction from which endo-therapy accessories enter and exit the endoscopic image:

Air flow rate:

Standard when CLV-260 (high air pressure) is used.

Bending section:

Angulation Range  UP 180°, DOWN 180°, RIGHT 160°, LEFT 160°

Total length: 2005 mm 1655 mm

NBI observation: Available

CF-H260DL is compatible with following video Processor:

CV-240, CV-260 and CV-260SL

CF-H260DL is compatible with following Light Source:

CLV-U20, CLV-U40, CLV-260, CLV-260SL

CF-Q260DL Video colonoscope Condition:

Insertion Tube – Excellent condition

Bending mechanism & Angulation Control – Good movements

Light Guide Cable & Light Transmission – Good transmission

Objective Lens & Focusing – Good optics

Remote Control Switches – All Functional

Distal End – Excellent condition.

Image Quality – Excellent image quality

Instrument Channel (s) – Clear

Leak Test – Pass

 Noted :

The NBI observation is available when the EVIS LUCERA video system center CV-260SL and the EVIS LUCERA xenon light source CLV-260SL are used with the endoscope.

Our team of product experts ensures that the endoscope is in excellent condition and functioning properly. Scope was tested with compatible system and produces clear images. The angulation of the scope is Good. Insertion tube is in Good condition. It passes the leakage test.

Contact us today to learn more and get a personalized estimate for your needs.
Don't hesitate to ask any questions - we are here to help you make the most informed decision for your medical practice.
